DRAGINO · Sensor · LoRa · LoRaWAN Temperature & Humidity Sensor · LHT65N-EU868-NE117

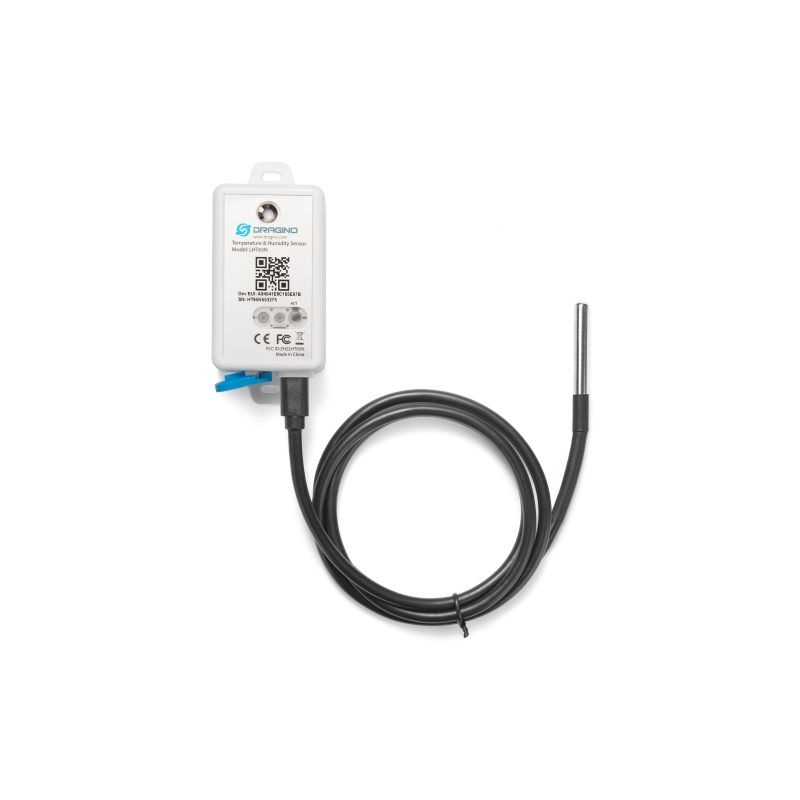

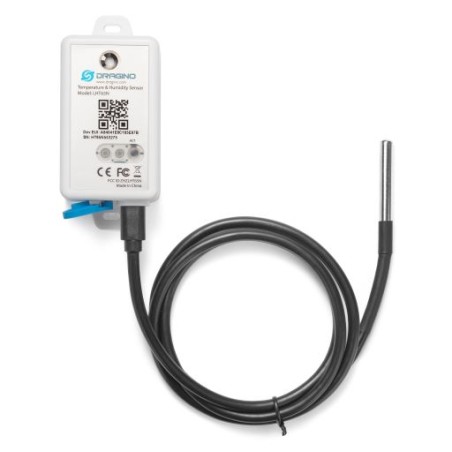

DRAGINO LHT65N-EU868-NE117 Temperature & Humidity Sensor

overview

The Dragino LHT65N-NE117 temperature and humidity sensor is a long range LoRaWAN sensor. It contains a built-in SHT20 temperature and humidity sensor and has an external NE117 temperature sensor.

The LHT65N-NE117 allows users to send data and achieve ultra-long range. It provides ultra-long range spread spectrum communication and high interference immunity with minimal power consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, etc. The LHT65N-NE117 has a built-in 2400mAh non-rechargeable battery that can be used for more than 10 years*. The LHT65N-NE117 is fully compatible with LoRaWAN v1.0.2 protocol, it can work with standard LoRaWAN gateway. The LHT65N-NE117 has 3200 records with date and time, which can be retrieved with date and time for further analysis.

Characteristics

• LoRaWAN Class A protocol
• Frequency bands: EU868
• AT commands to change parameters
• Remote configuration parameters via LoRaWAN downlink
• Firmware upgrade possible via program port
• Built-in 2400mAh battery for more than 10 years of use.
• Built-in temperature and humidity sensor
• Optional external sensors
• Three-color LED for status display
• Data logging when network connectivity is interrupted

Applications

• Wireless alarm and security systems
• Home and building automation
• Automatic meter reading
• Industrial monitoring and control
• Long distance irrigation systems, etc.

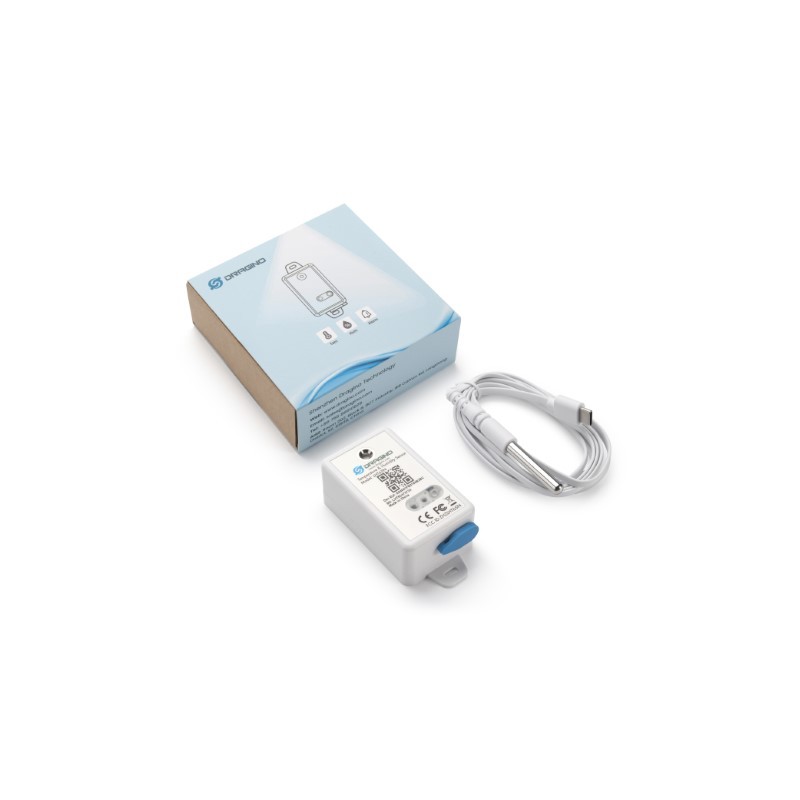

scope of delivery

• 1 x Dragino LHT65N-EU868-NE117 Humidity and Temperature Sensor
• 1 x NE117 temperature sensor
