DRAGINO · Sensor · LoRa · Sensor for potential-free contacts · CPL01-EU868

DRAGINO Open/Close DRAGINO Open/Close Sensor for potential-free contacts

Overview

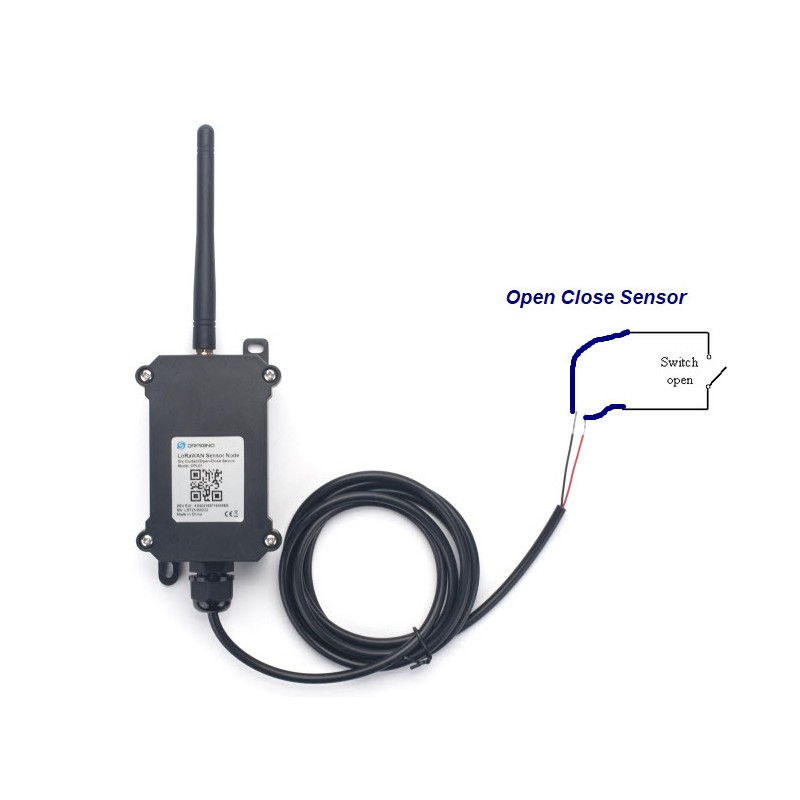

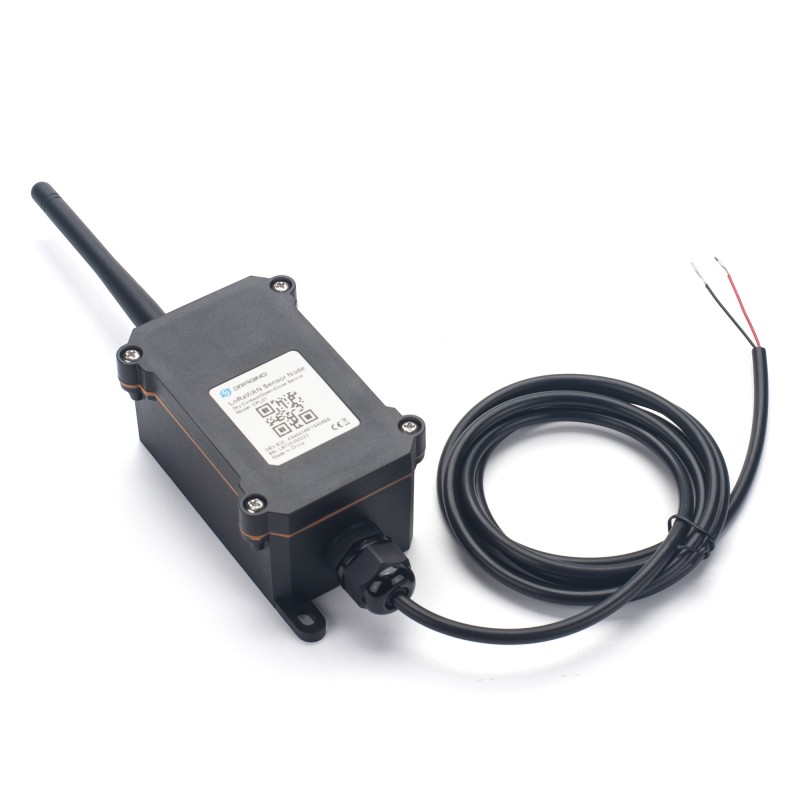

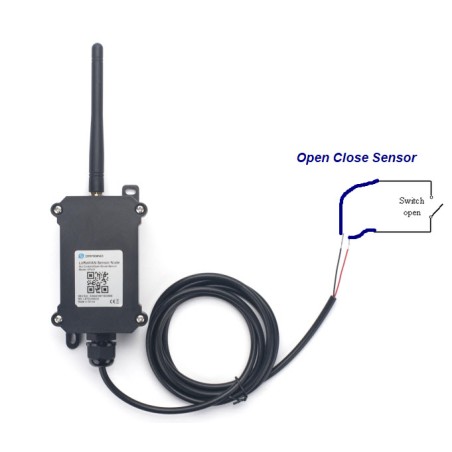

Dragino CPL01 is a LoRaWAN contact sensor. It detects the opening/closing status and sends to the IoT server via the LoRaWAN network. The user can see the dry contact status, opening time and number of openings on the IoT server.

CPL01 is powered by a 8500mAh Li-SOCI2 battery, which is designed for long-term use up to 10 years. (The actual battery life depends on the usage environment and upgrade period).

The CPL01 sends data regularly every day and at every dry contact action. It also counts the contact opening times and calculates the last opening duration. Users can also disable the uplink for each opening/closing event, instead the device can count each opening event and send the uplink periodically.

The CPL01 has an open contact alarm function. The user can set this function so that the device sends an alarm when the contact has been open for a certain period of time.

Each CPL01 is preloaded with a set of unique keys for LoRaWAN registration, register these keys to LoRaWAN server and it will connect automatically after power on.

Features

• LoRaWAN v1.0.3 Class A protocol.
• Frequency band: EU868
• Open/close detection
• Open/Close Statistics
• 8500mAh industrial battery (non-rechargeable)
• AT commands to change parameters
• Uplink at regular intervals and open/close event
• Datalog function
• Remote configuration of parameters via LoRa downlink
• Firmware upgrade possible via program port
• Wall mounting possible
• Suitable for outdoor use

Areas of application

• Wireless alarm and security systems
• Home and building automation
• Industrial monitoring and control

scope of delivery

• 1 x CPL01-EU868 Open/Close Dry Contact Sensor
