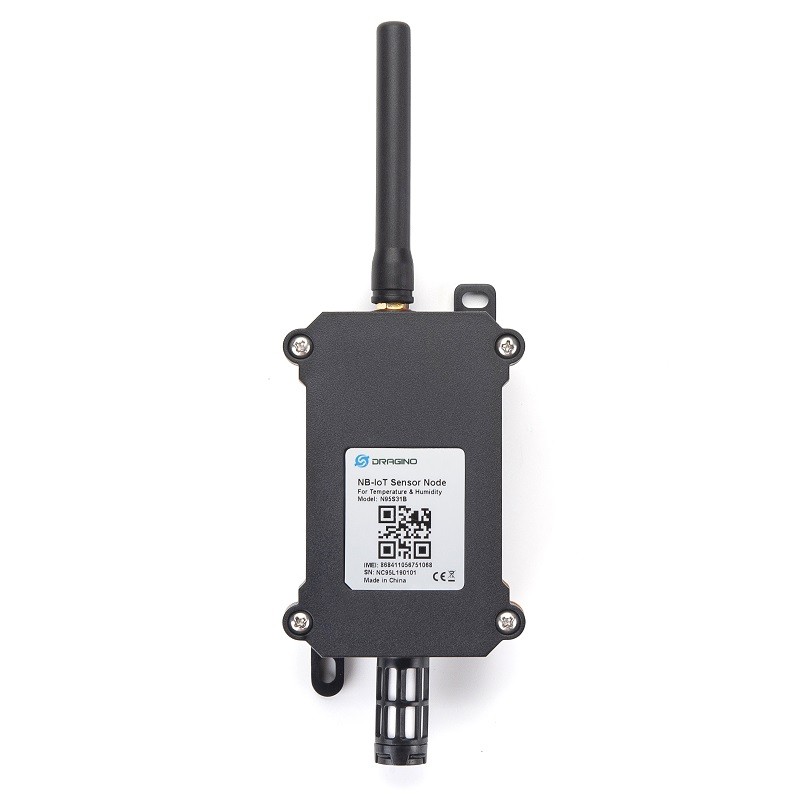

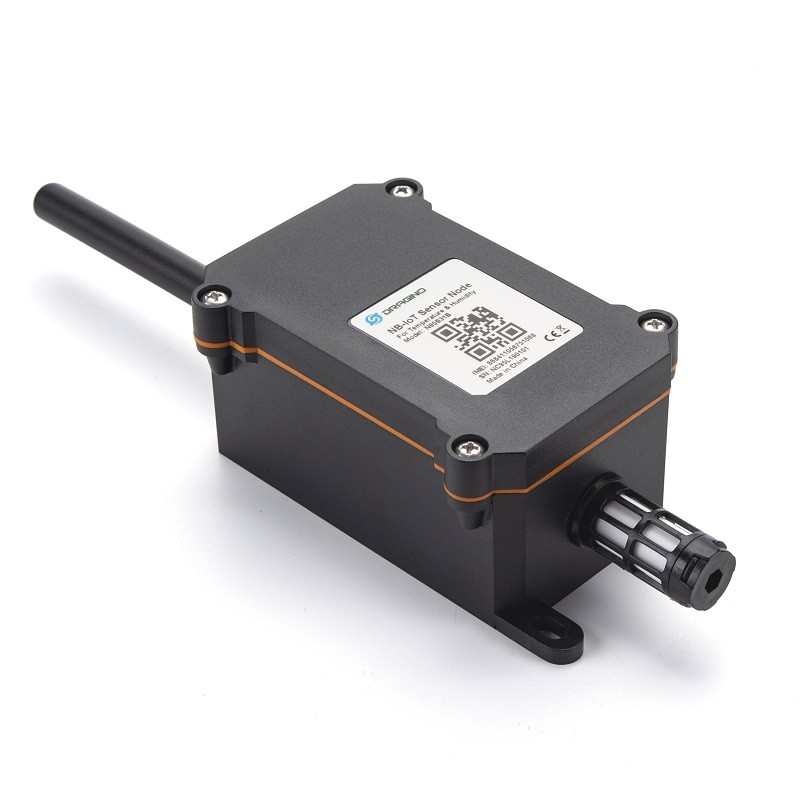

DRAGINO N95S31B Temperature & Humidity Sensor

overview

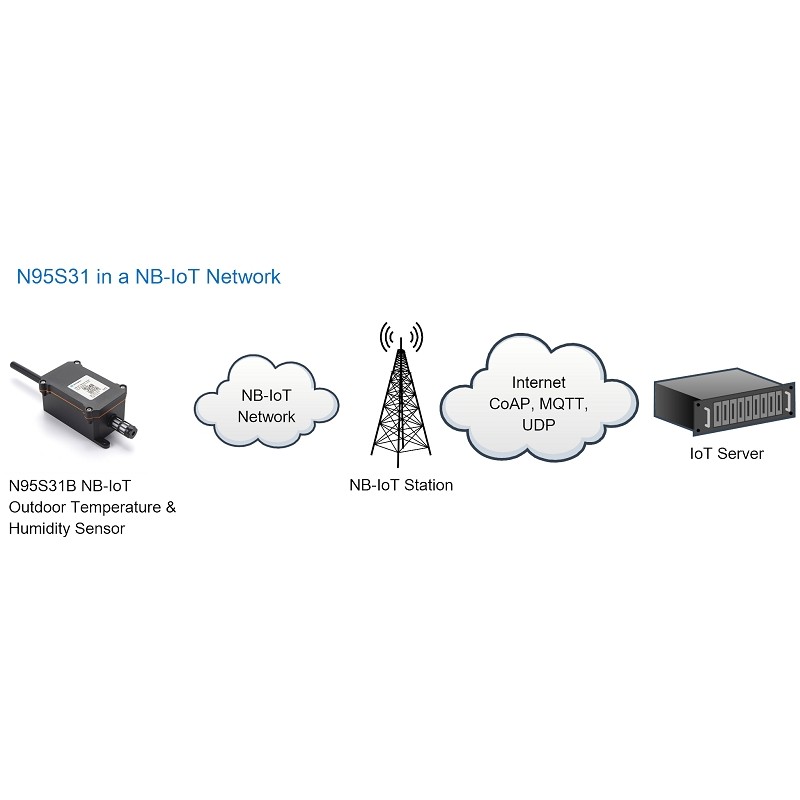

Dragino N95S31B is an NB-IoT temperature and humidity sensor for Internet of Things solutions. It is used to precisely measure the ambient temperature and relative humidity and then upload it to the IoT server via the NB-IoT network.

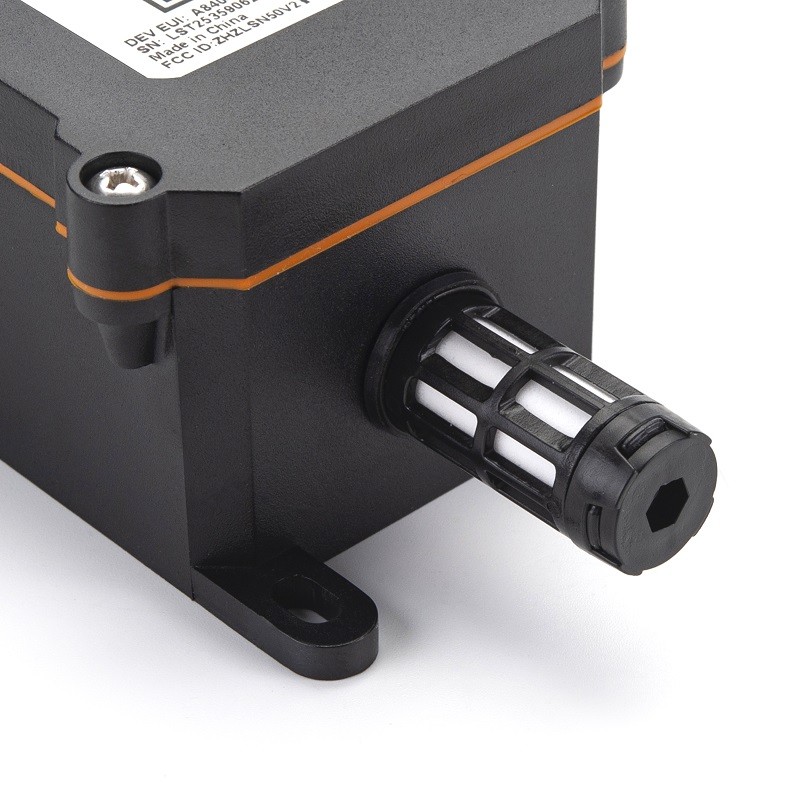

The SHT31 temperature and humidity sensor used in the N95S31B is a fully calibrated, linearized and temperature compensated digital output from Sensirion that offers high reliability and long-term stability. The SHT31 is housed in a waterproof, condensation-proof housing that allows for long-term use.

N95S31B supports various uplink methods such as TCP, MQTT, UDP and CoAP for different application requirements.

The N95S31B is powered by a 8500mAh Li-SOCI2 battery, which is designed for long-term use of up to several years. (The actual battery life depends on the usage environment and the upgrade period. Please check the related Power Analyze report.)

Characteristics

• NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
• Monitoring temperature and humidity via SHT31
• AT commands to change the parameters
• Uplink at regular intervals
• Downlink to change the configuration
• Waterproof IP66 housing
• Ultra-low power consumption
• AT commands to change parameters
• Micro SIM card slot for NB-IoT SIM
• 8500mAh battery for long-term operation

Applications

• Smart buildings and home automation
• Logistics and supply chain management
• Intelligent measurement technology
• Smart Agriculture
• Smart Cities
• Smart Factory

scope of delivery

• 1 x Dragino N95S31B humidity and temperature sensor
