overview

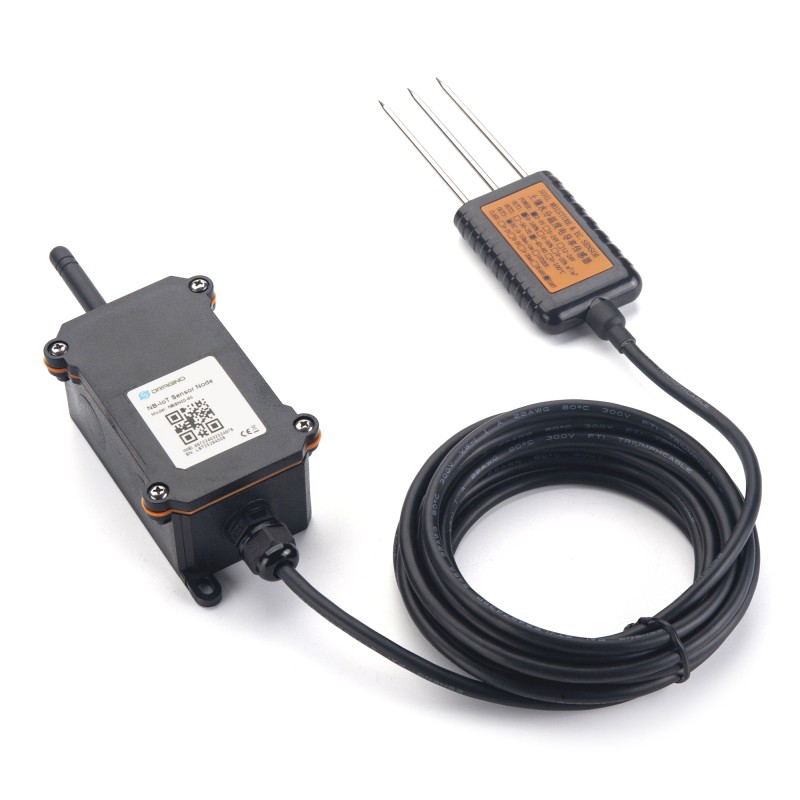

NBSN95 is a long-range NB-IoT sensor node. It is designed for outdoor data collection and is powered by a 8500mAh Li/SOCl2 battery for long-term use and secure data transmission. System integrators can use the NBSN95 to quickly deploy NB-IoT sensor nodes for their IoT solutions. The NBSN95 is easy to program, build and connect anywhere.

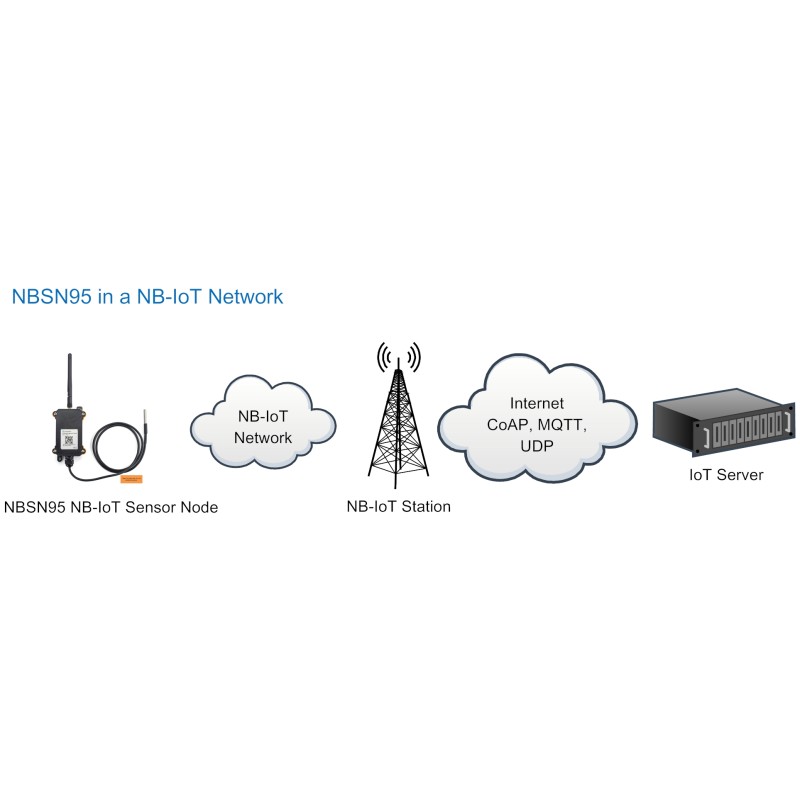

NarrowBand Internet of Things (NB-IoT) is a standards-based low-power wide-area (LPWA) technology designed to enable a wide range of new IoT devices and services. NB-IoT significantly improves user device power consumption, system capacity, and spectrum efficiency, especially in deep coverage areas.

To use NBSN95, the user must check if there is NB-IoT coverage in their area and which bands NBSN95 supports. If so, the user must purchase an NB-IoT SIM card from the local operator and install NBSN95 to obtain NB-IoT network connection.

NBSN95 is an open source project. It is based on the STM32L072CZT6 ultra-low-power ARM® Cortex®-M0+ microcontroller. Developers can obtain complete software and hardware design files and adapters for their projects.

Characteristics

• STM32L072CZT6 MCU
• NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
• Preload bootloader on USART1/USART2
• MDK-ARM Version 5.24a IDE
• I2C, LPUSART1, USB, SPI2
• 3x12bit ADC, 1x12bit DAC
• 20xDigital I/O
• Open source hardware/software

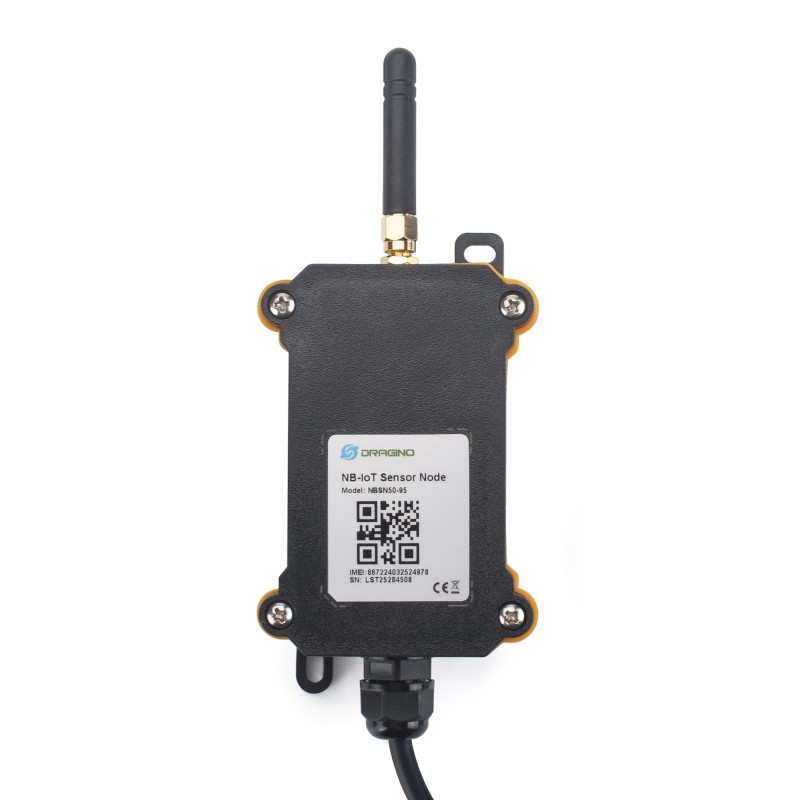

• Waterproof IP66 housing
• Ultra low power consumption
• AT commands to change parameters
• Micro SIM card slot for NB-IoT SIM
• 8.5 Ah battery for long-term operation

Specifications

• NB-IoT Specification:

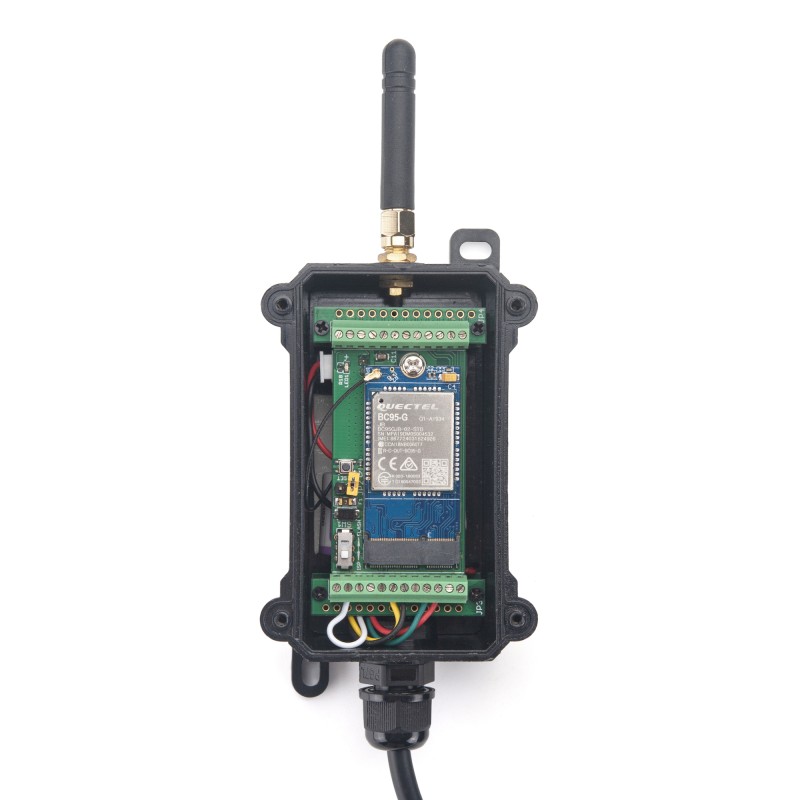

  • Modules: Quectel BC95-G
  • Support Bands
  • Protocol: CoAP, UDP, MQTT
  • B1 @H-FDD: 2100MHz
  • B3 @H-FDD: 1800MHz
  • B8 @H-FDD: 900MHz
  • B5 @H-FDD: 850MHz
  • B20 @H-FDD: 800MHz
  • B28 @H-FDD: 700MHz
• MCU Spec:
  • Microcontroller: STM32L072CZT6
  • Flash:192KB
  • SRAM:20KB
  • EEPROM:6KB
  • Clock Speed: 32Mhz
• Absolute Maximum Ratings:
  • VCC: 0.5v ~ 3.9v
  • Operating temperature: -40 ~ 85°C
  • I/O pins: 0.5v ~ VCC+0.5V
• Common DC Characteristics:
  • Supply Voltage: 1.8v ~ 3.6v
  • Operating temperature: -40 ~ 85°C
  • I/O pins: Refer STM32L072CZT6 datasheet
• Power Consumption:
  • STOP Mode: 10 μA @ 3.3v
  • See Power Analyze Document for more.
• Battery:
  • Li/SOCI2 rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuous current: 500mA
  • Max boost current: 2A, 1 second

Applications

• Wireless alarm and security systems
• Home and building automation
• Automated meter reading
• Industrial monitoring and control
• Long range irrigation systems, etc.

scope of delivery

• 1 x NBSN95
• 1x External antenna
