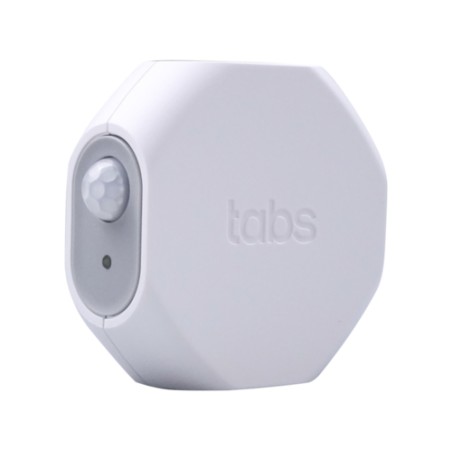

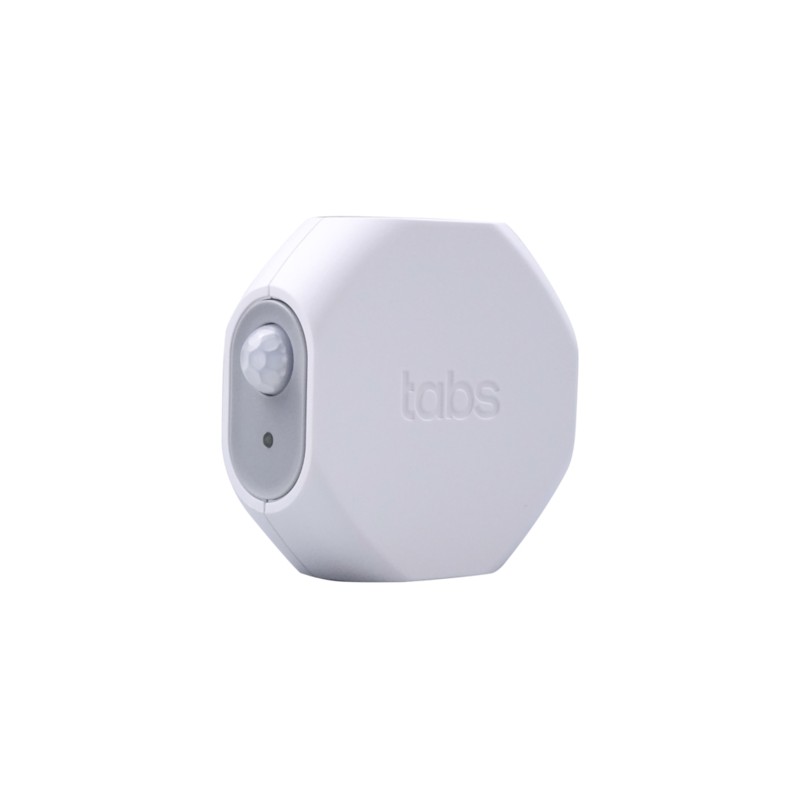

BROWAN Tabs LoRaWAN PIR motion sensor - TBMS100
Overview
The Tabs PIR & occupancy sensor detects occupancy or movement in homes or buildings for security purposes. The sensor can also be used in building management systems to optimize the use of buildings or the cleanliness of desks, conference rooms, bathrooms, etc.
Features
-
LoRaWAN 1.0.3
-
Two passive infrared detectors and Fresnel lens
-
7m detection distance
-
IP50 protection class
-
123°H x 93°V Detection angle
Detection angle Specification
| Model | TBMS100 |
| Frequency | 868MHz |
| RF transmission power | +17dBm |
| Antenna gain | -2dBi peak value, -5dBi average value |
| RF sensitivity | -135dBm |
| Battery type | 3.6V 1/2 AA Li-SOCl2, 1200mAh |
| Battery life | Up to 16 months |
| Power consumption | 135mA maximum / 100uA minimum |
| Protocol | LoRaWAN 1.0.3 |
| Operating temperature | 0 to 50°C |
| Protection class | IP50 equivalent |
| Dimensions | 50mm x 20mm x 50mm |
| weight | 30g without battery 40g with battery |
| Detection angle | 123°H x 93°V |
| Detection distance | 7 meters |
| Type approval | CE/FCC/IC/ANATEL |
