BROWAN Sensor LoRa LoRaWAN door/window contact sensor TBDW100
BROWAN Sensor LoRa LoRaWAN door/window contact sensor TBDW100
BROWAN Tabs LoRaWAN door/window contact sensor - TBDW100
Overview

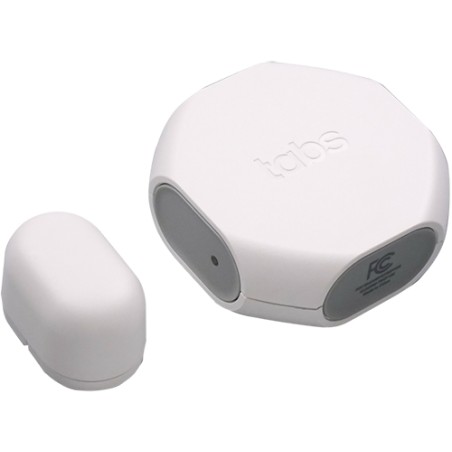

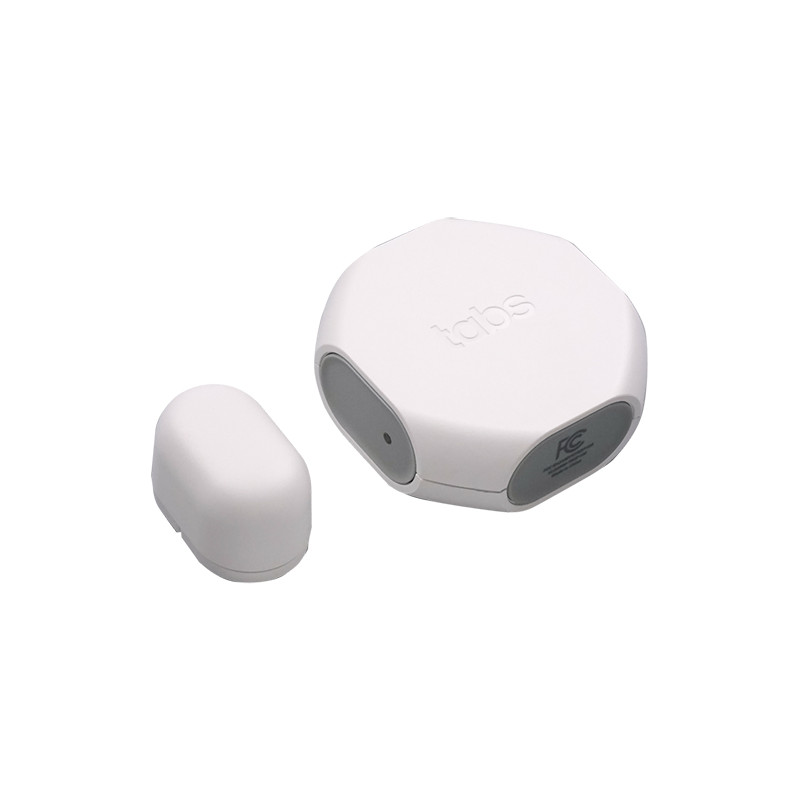

The Tabs door and window sensor fits into any interior design and is easy to install. It consists of two parts. The main body contains the active electronics to measure magnetic fields and transmit data to a LoRaWAN network if they change. The other part is a permanent magnet with sufficient field strength to be detected by the Hall effect sensor on the main body.
Features of
-
LoRaWAN 1.0.3
-
Hall effect sensor
-
1cm detection distance
-
IP50 protection class
-
Operating temperature 0-50°C
Specification
| model | TBDW100 |
| Radio frequency | 868MHz |
| RF transmission power | +17dBm |
| Antenna gain | -2dBi peak value, -5dBi average value |
| RF sensitivity | -135dBm |
| Battery type | 3.6V 1/2 AA Li-SOCl2, 1200mAh |
| Battery life | Up to 16 months |
| Power consumption | 135mA maximum / 100uA minimum |
| Protocol | LoRaWAN 1.0.3 |
| Operating temperature | 0 to 50°C |
| Protection class | IP50 equivalent |
| Dimensions | 50mm x 20mm x 50mm |
| weight | 30g without battery 40g with battery |
| Detection distance | 1 cm |
| sensor | Hall effect sensor |
| Type approval | CE/FCC/IC |
