ELSYS - LoRa - LoRAWANIndoor Air Quality sensor Display - Room sensor for temperature, humidity and CO2 with display

ELSYS LoRAWAN ERS-SOUND Sensor

Overview of

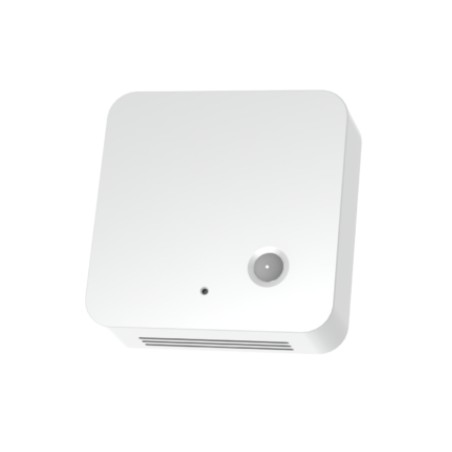

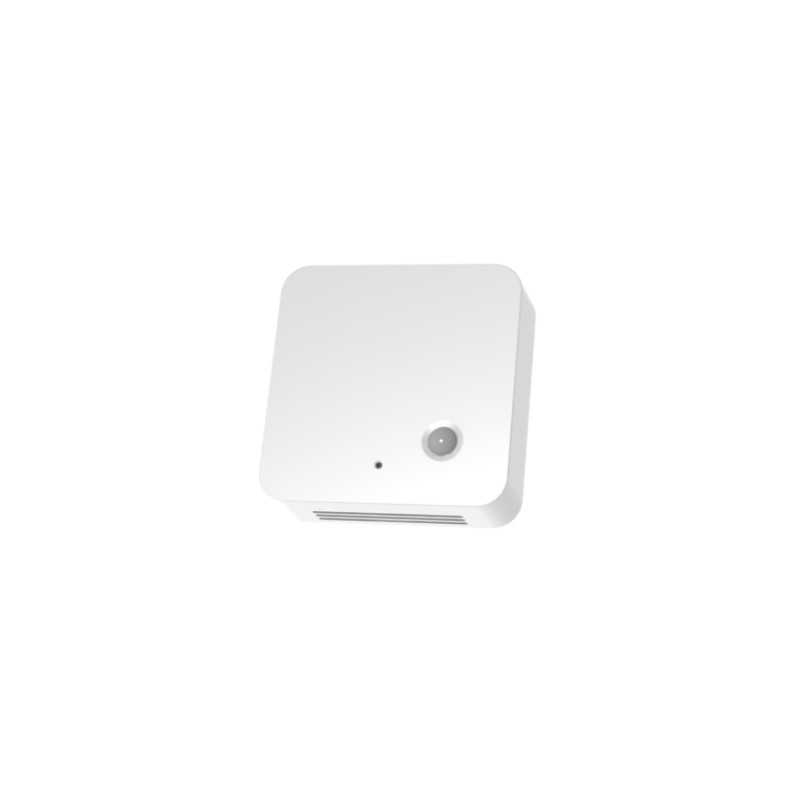

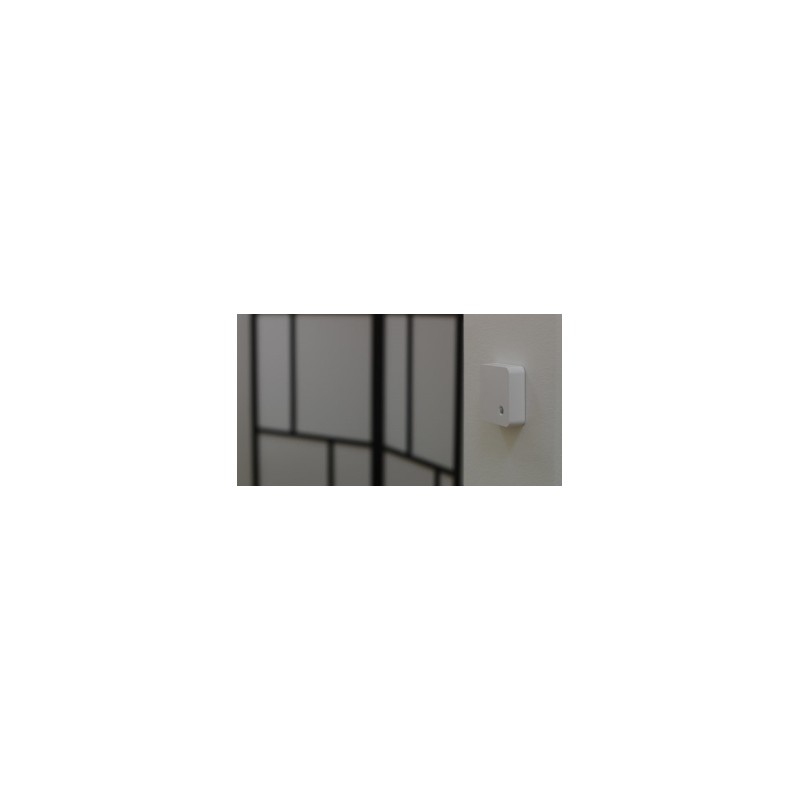

ERS room sensors for measuring the room climate. ERS is enclosed in a room sensor box and designed for wall mounting. There are five internal sensors inside the ERS: temperature sensor, humidity sensor, light sensor, motion sensor (PIR) and sound sensor.

ERS is powered by two 3.6V AA lithium batteries (one for ERS-lite). Battery life is estimated to be up to 10 years, but is dependent on scanning interval, transmission interval, data rate and environmental factors. This is not included in the scope of delivery. All Elsys sensors are equipped with NFC (Near Field Communication) for easy configuration with an Android phone. With our "Sensor Settings" application you can change the sampling rate, data rate, encryption key, trigger, activation and much more. All our sensors are built on Semtech's LoRaWAN™ stack. Channel levels for US902-928, EU863-870, AS923, AU915-928, KR920-923

Features

• LoRaWAN-certified CM
• Noise sensor / peak value + average
• Always on - no missed sound events
• dBa filtering
• Temperature sensor
• Humidity sensor
• Light sensor
• Motion detection sensor (PIR)
• NFC for configuration
• Configuration over the air
• Discreet and minimalist design

Application

• Measurement of the indoor environment
• Smart buildings
• Workplace management
• Room occupancy
• Sound level control in public spaces, schools, libraries, etc.

Technical data

• LoRa Alliance certified
• temperature
• Air humidity
• light
• Motion (PIR)
• Sound, peak and average (ERS sound)
• NFC for easy configuration
• Size: 86x86x26mm
• Accuracy: ± 0.5°C, ±2%rh
• Resolution: 0.1°C, 0.1%rh
• Approximate range: 8km*
• Battery life: 10 years**/approx. 3 years for ERS-Sound- not included!
• 2 x 3.6V AA lithium battery
