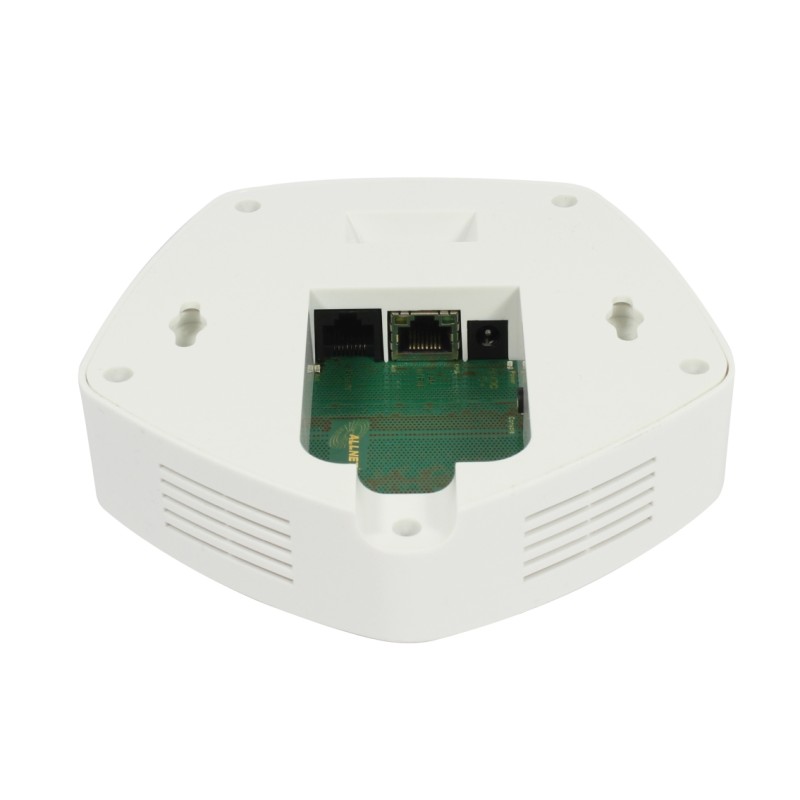

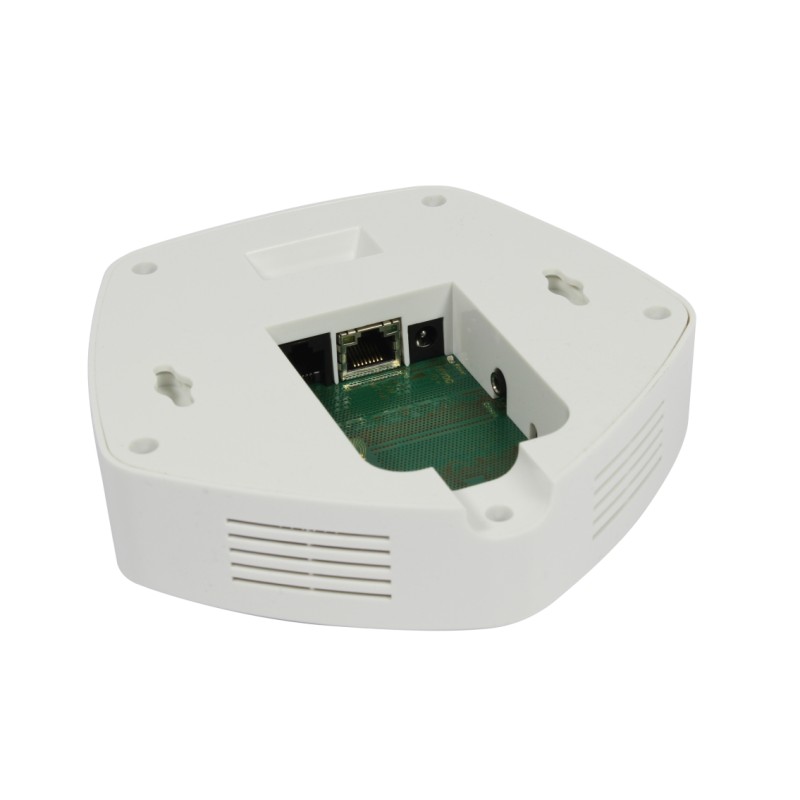

ALLNET CO2 ambient air light with RGBW LEDs / 1x MSR sensor port / LAN (PoE) & WIFI (power supply unit)

_{CO2 traffic light} for infection control ventilation in schools (FILS-R)

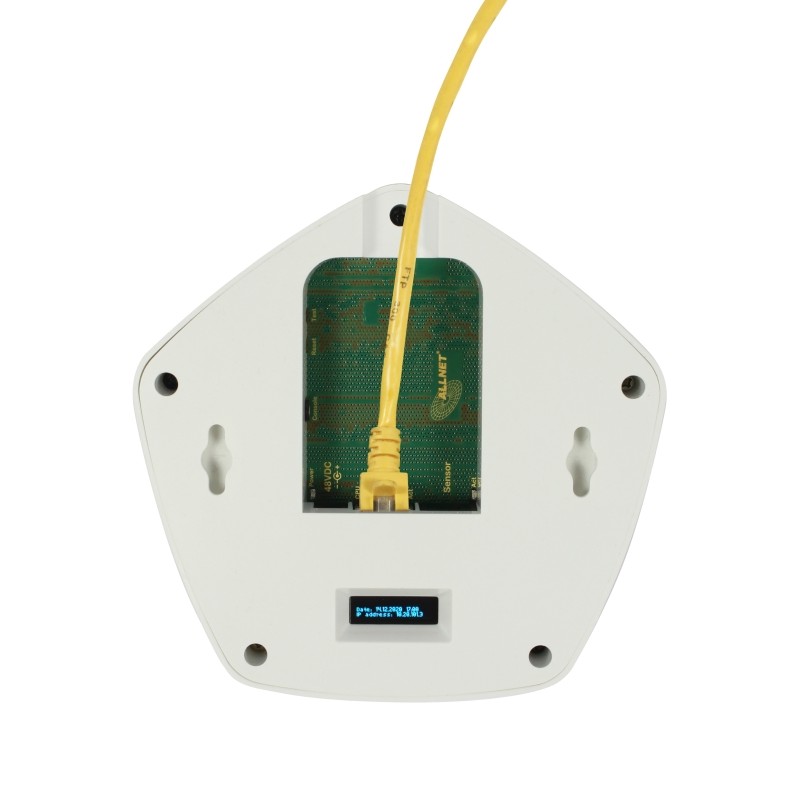

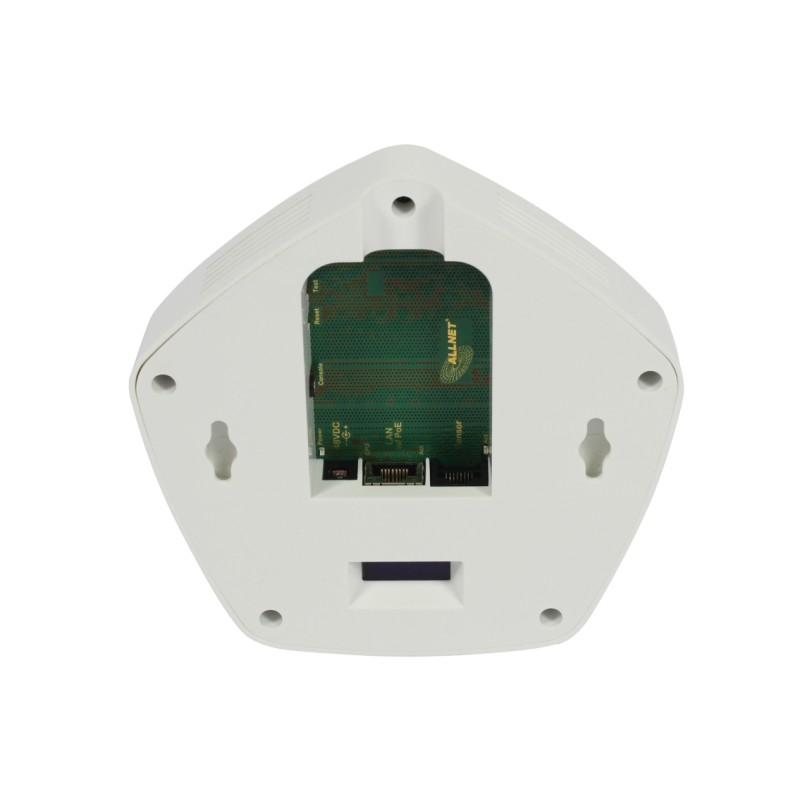

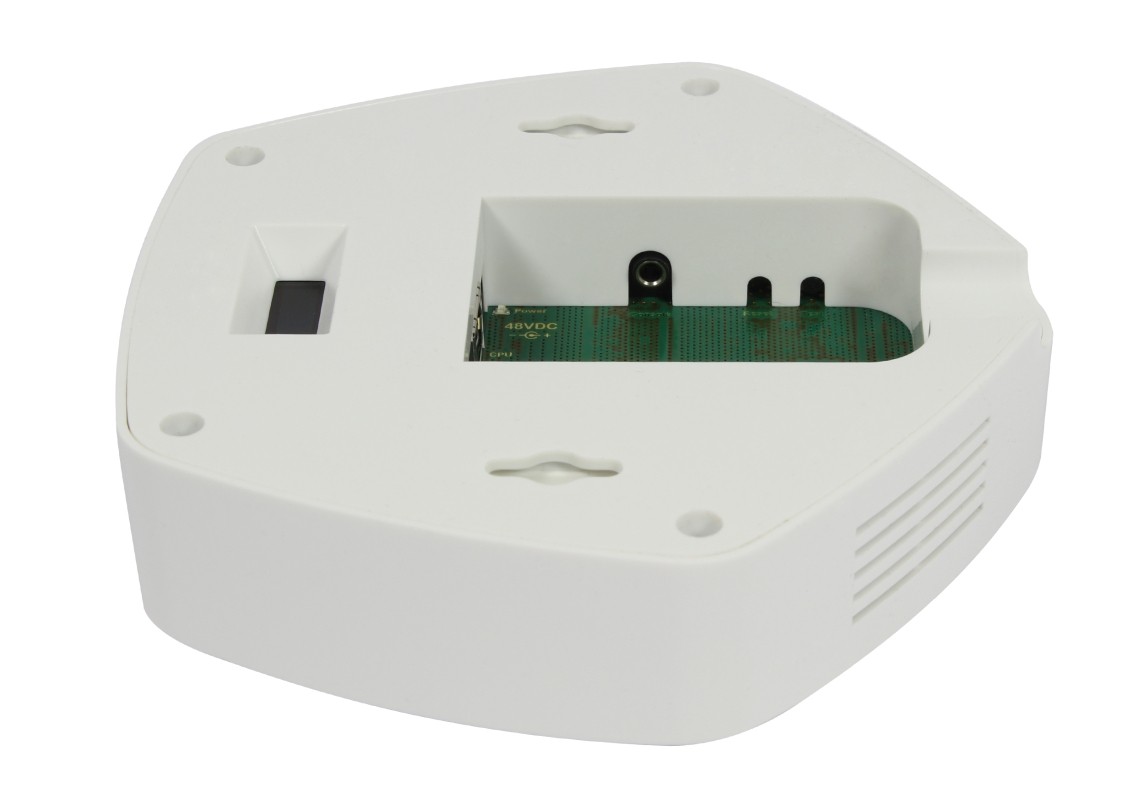

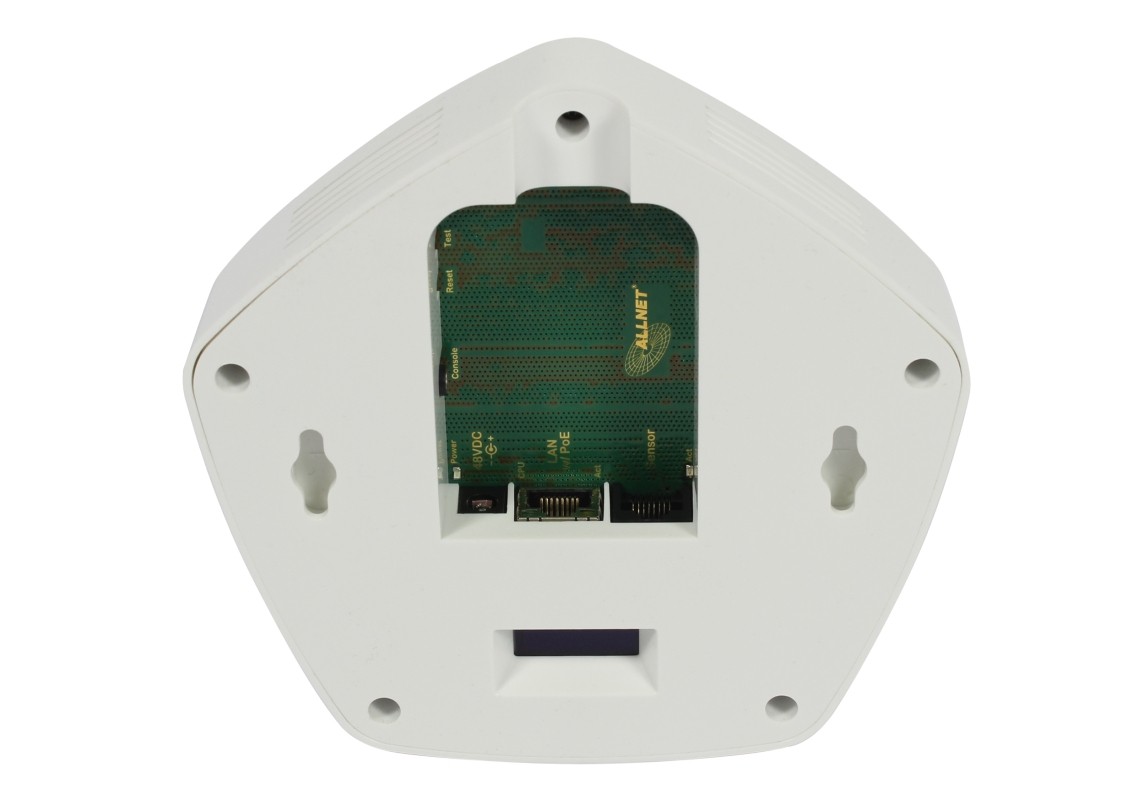

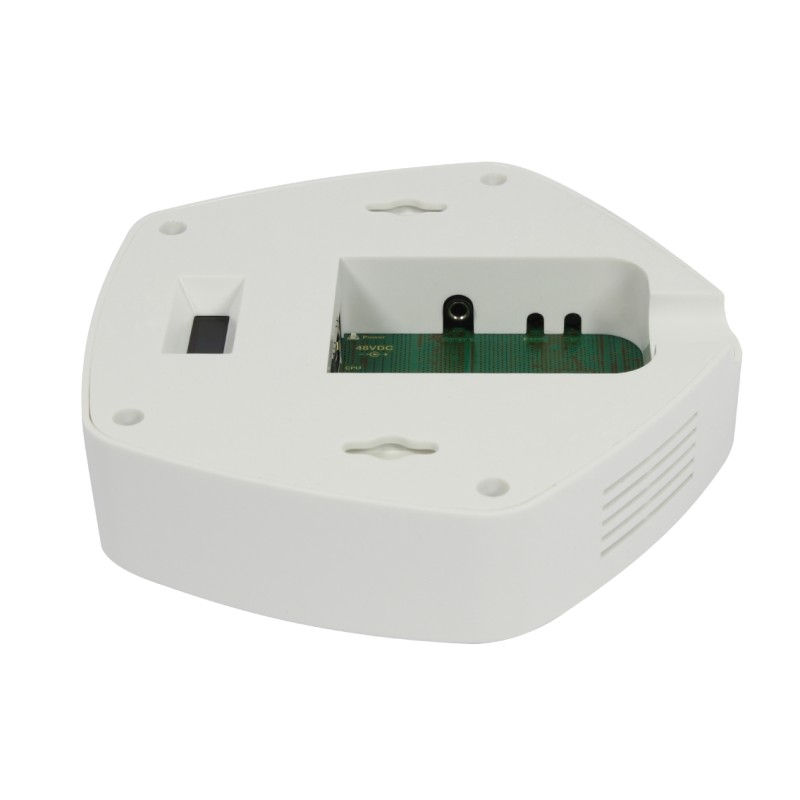

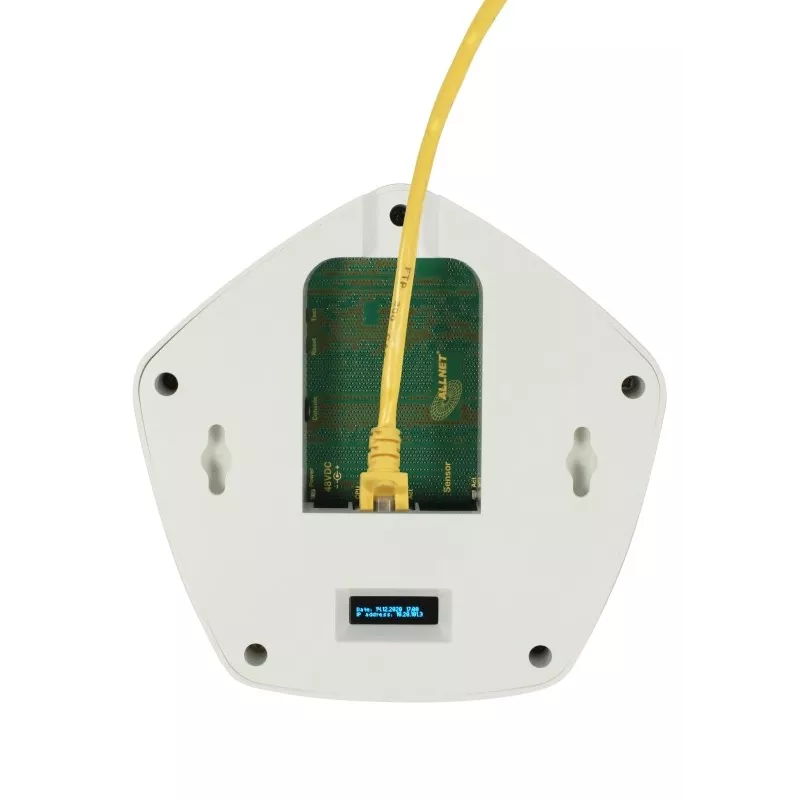

The universal network signal lamp with integrated _NDIRCO2 sensor comes in an attractive plastic housing. The lamp is supplied with the required power via an environmentally friendly plug-in power supply unit or via PoE (power supply via a single network cable with data and power). The ALLNET PoE lamp is equipped with a high-quality industrial multi-sensor that offers a high_CO2 measuring range of 0~40000ppm. In the ideal range (25°C, 400 - 10,000 ppm) it offers an accuracy of ± (30 ppm). The signal lamp automatically converts the measured values into an optical standard signal, which can be directly displayed in the respective color via the integrated LED.

The room air traffic light serves as a guideline for room ventilation for infection protection in daycare centers/kindergartens, large daycare centers, daycare centers for children with special needs, offices, fitness studios, hotels, retirement homes/nursing homes, waiting rooms, retail stores, clubhouses, authorities and public facilities, churches or other prayer rooms and, of course, schools.

This enables energy-saving and needs-based room ventilation and thus a reduction in operating costs and an increase in the well-being of the people in the rooms.

In general, it is recommended that ventilation should take place from a concentration of 1000 ppm_CO2 in the room air (yellow level), but ventilation is required from 2000 ppm (red level) to ensure adequate room air quality. For schools, a threshold value of 1000 ppm is considered to be decisive. The aforementioned limit values refer to the instantaneous value. If the_{CO2 concentration} rises above this specified value, a ventilation measure - manual ventilation via windows or automatic activation of a ventilation system - should ideally be taken. If the_{CO2 content} is below the critical threshold, it can be assumed that the virus concentration in the air is also reduced.

The alarm is triggered via a visual display and can optionally be triggered acoustically or via email, FTP or upload to the cloud.

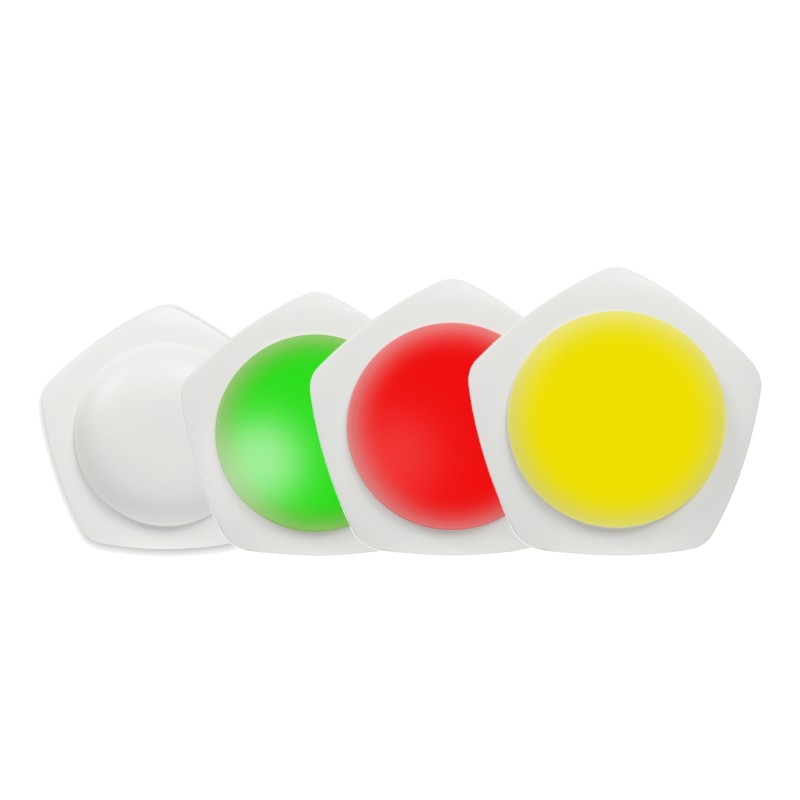

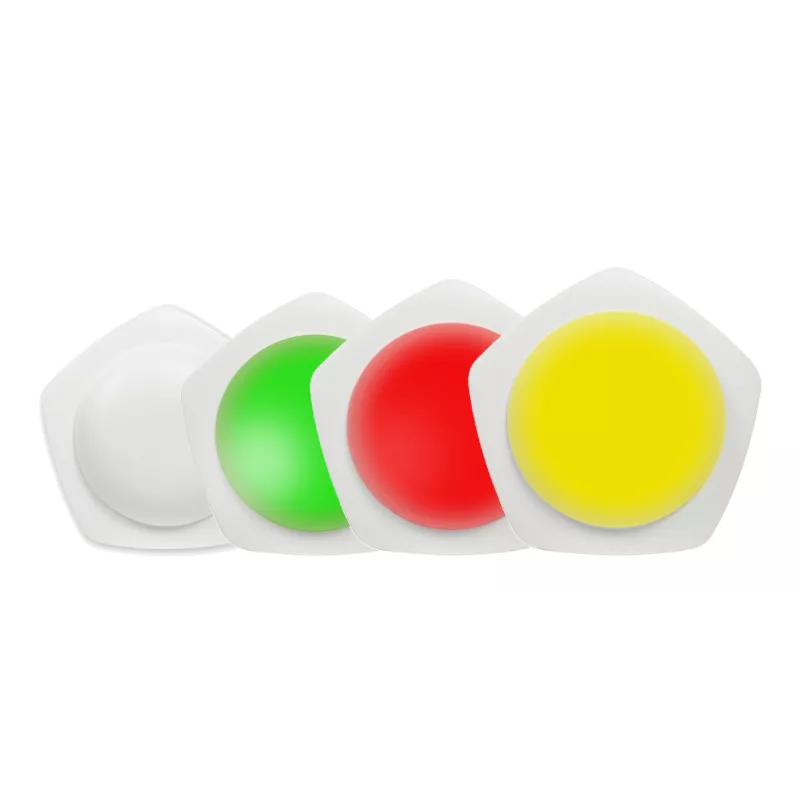

Preset limit values: (can be changed in software)

• at 0~999 ppm: level green

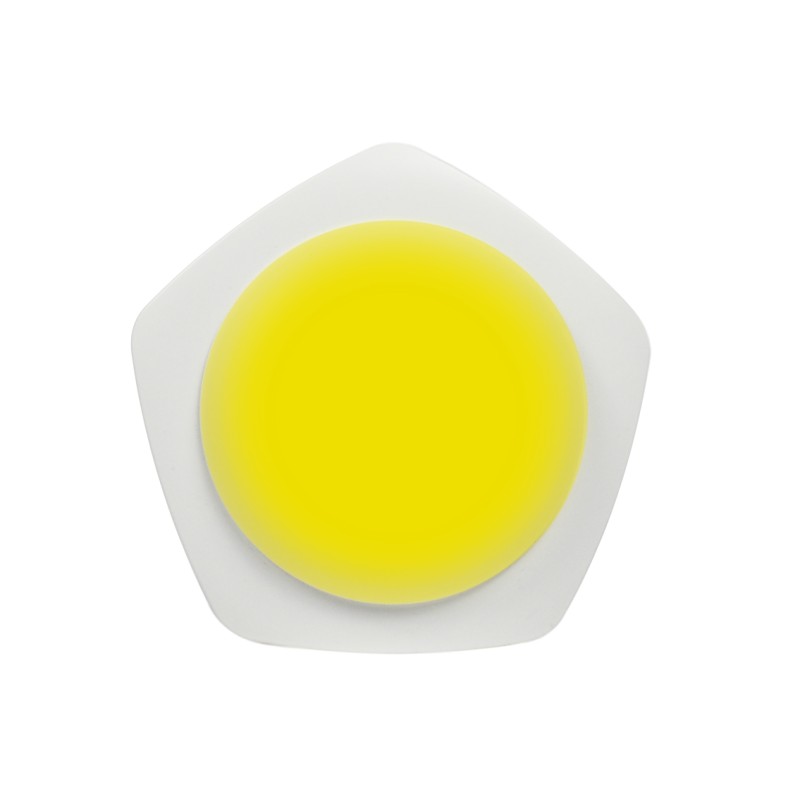

• at 1000~1999 ppm: yellow level
• at 2000~10000 ppm: Red level

The advantage of the _ALL-PoE CO2 lamp over other_{CO2 lamps} currently on the market is that the ALLNET version has an intelligent/smart signal lamp with its own integrated web interface, where you can define your own limit values, for example.

Added value of the ALLNET solution compared to similar solutions

• If the guideline values change, e.g. new specifications from the Federal Environment Agency, the ALLNET version can always be flexibly adapted to the new standard via the web interface.
• All lamps can be visualized via the integrated web interface. The values can also be tracked by the parents of the class via the cloud.
• In the ALLNET version, you can also configure a recording of the values and export them as CSV/XLS data.
• In the ALLNET version, you can configure a rule that sends the values by email if they are exceeded/fallen short of, etc.
• The ALLNET version also includes a buzzer that can be used for optional actions.
• The ALLNET version also includes an additional sensor port from our measurement and control product series. You can use this sensor port to connect a variety of external sensors for temperature or humidity through to contact inputs with magnetic contacts for detecting window openings.

The high-quality Sensirion "Made in Swiss" multisensor has an integrated two-channel principle for measuring carbon dioxide concentration and is designed to automatically compensate for possible long-term drift.
