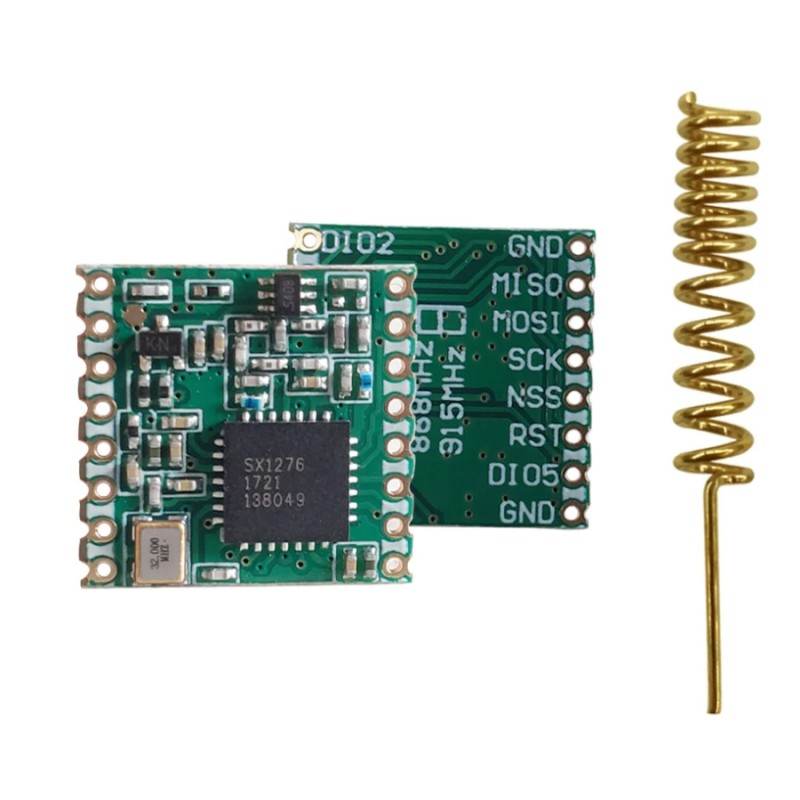

Antenna for LoRa module LoRaWAN transceiver
Antenna for LoRa module LoRaWAN transceiver
0.60

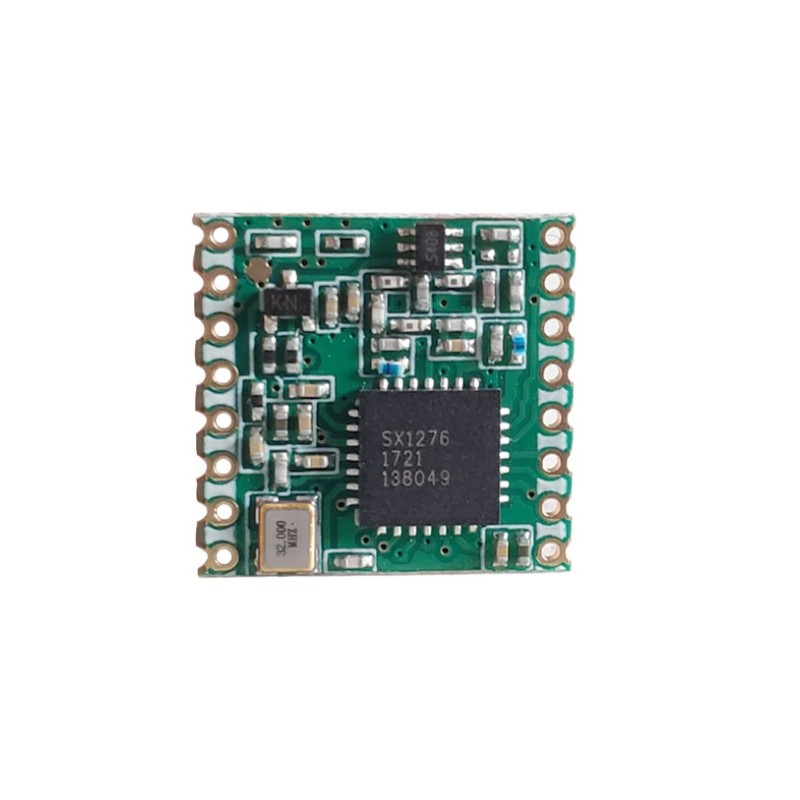

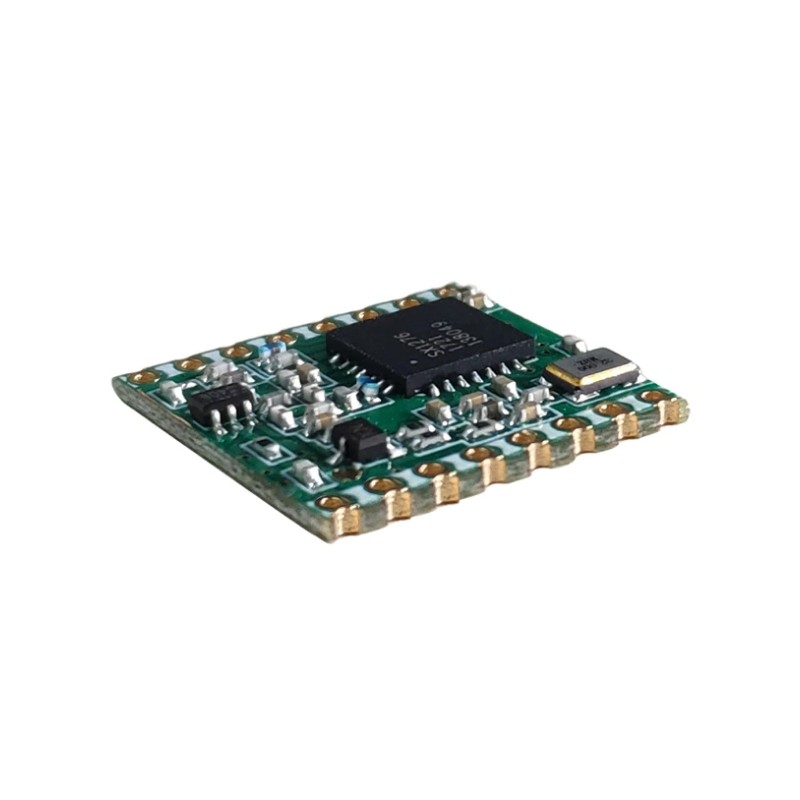

LoRa module LoRaWAN Transceiver RF SX1276 868MHZ
LoRa module LoRaWAN Transceiver RF SX1276 868MHZ
LoRa module LoRaWAN Transceiver RF SX1276 868MHZ
Module functions
- FSK/GFSK
- LoRa (Long Range) spread spectrum technology
- Half-duplex communication
- Channel rejection ratio (ADJ):56dBm
- High RX sensitivity : -139dBm
- ISM multiband
- Freely usable frequency (also possible without license)
- Can be used in FDMA and FM projects
- Intelligent reset
- Low voltage monitoring
- Timing wakeup
- Low-power mode
- Sleep mode
- Low RX current: 12~13 mA
- 256 bytes FIFO TX/RX
- ISSI channel detection
- Transmission mode:FIFO / direct mode(recommended FIFO packet mode)
- Configuration:AFC/air wakeup/low power/carrier sense/FEC error correction/AEC encryption
Applications
- DYI LoRa projects
- Data logger and remote control applications
- AMR automated meter reading (water meter, electricity meter and gas meter)
- Applications in industry and agriculture
- Wireless alarm system
- smart home
- small radio terminals
specifications

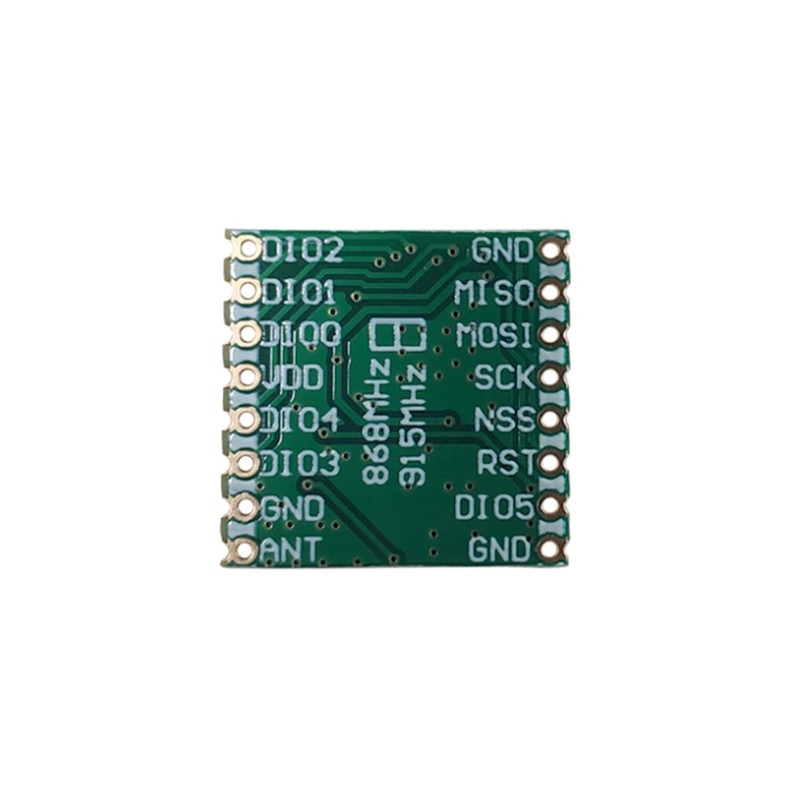

Pin assignment
