DRAGINO · Sensor · LoRa · Sensor for potential-free contacts · CPL03-LB-EU868

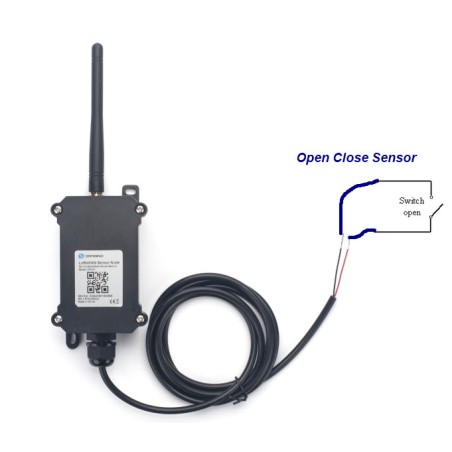

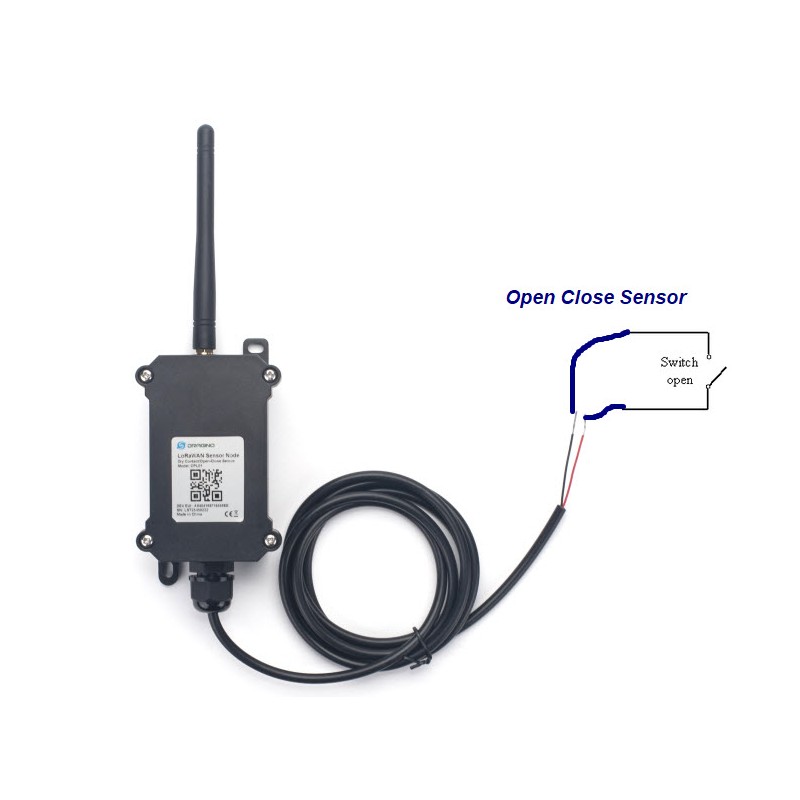

DRAGINO Open/Close DRAGINO Open/Close Sensor for potential-free contacts

Overview

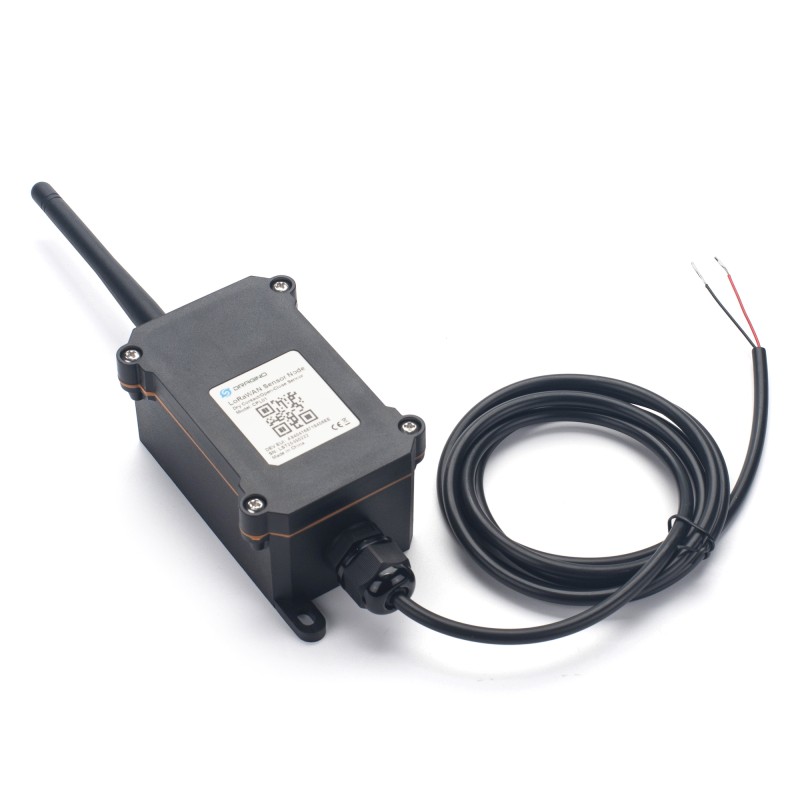

The Dragino CPL03-LB/LS is a LoRaWAN contact sensor for Internet of Things solutions. It detects the dry contact status, opening time and number of openings and then uploads the data to the IoT server via wireless LoRaWAN protocol high.
The CPL03-LB/LS sends data regularly every day and at every dry contact action. It also counts the contact opening times and calculates the duration of the last opening. The user can also disable the uplink for each opening/closing event, instead the device can send data every Count the opening event and send the uplink periodically.
The LoRa radio technology used in the CPL03-LB/LS enables the device to transmit data and achieve extremely long ranges at low data rates. It provides extremely long range spread spectrum communication with high interference immunity and minimal power consumption.
CPL03-LB/LS supports open alarm function, user can set open alarm for instant notification. CPL03-LB/LS supports datalog function, can save the data when there is no LoRaWAN network and Establish uplink when the network is restored.
CPL03-LB/LS is designed for outdoor use. It has a weatherproof housing and an industrial-grade battery to work in low to high temperatures.
CPL03-LB/LS supports BLE configuration and wireless OTA updates, which makes it easier for users to use.
CPL03-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-on battery and is designed for long-term use up to 5 years.
Each CPL03-LB/LS is preloaded with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will automatically connect after power on.

functions

• LoRaWAN v1.0.3 Class A protocol.
• Frequency band: EU868
• open/close detection
• opening/closing statistics
• 8500mAh industrial battery (non-rechargeable)
• AT commands to change parameters
• Uplink at regular intervals and open/close event
• data log function
• Remote configuration of parameters via LoRa downlink
• Firmware upgrade possible via program port
• wall mounting possible
• Suitable for outdoor use

areas of application

• Wireless alarm and security systems
• home and building automation
• Industrial Monitoring and Control

scope of delivery

• 1 x CPL01-EU868 Open/Close Dry Contact Sensor
