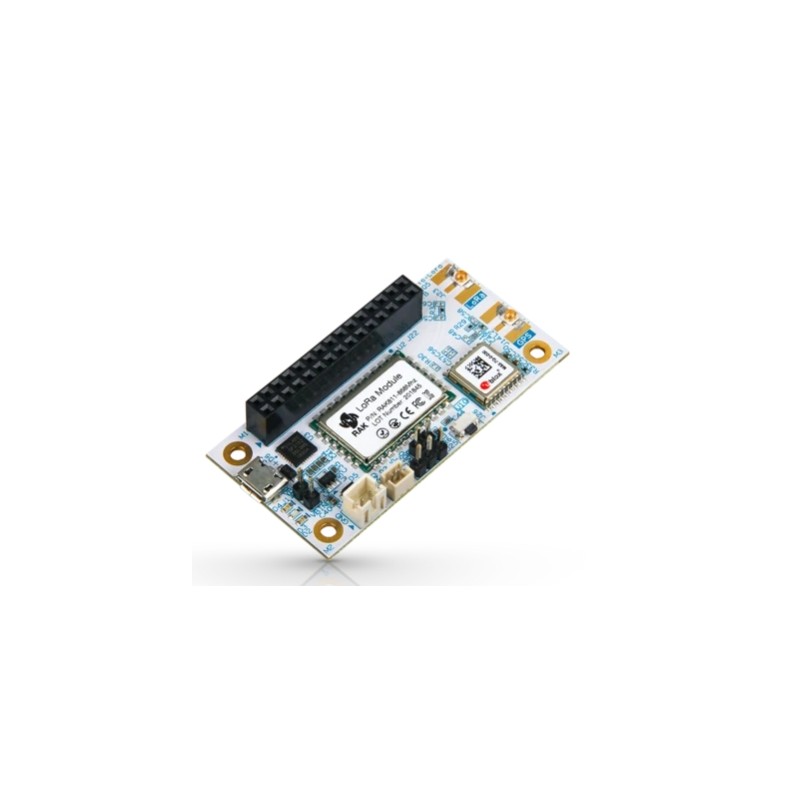

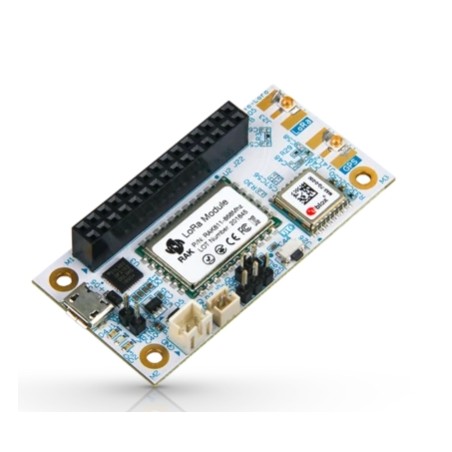

RAK Wireless - LoRa - WisTrio - LPWAN Tracker - RAK5205-23-R01 iPEX EU868

RAK Wireless WisTrio LPWAN Tracker RAK5205-2 iPEX

RAK5205-23-R01 iF

Overview of

The WisTrio LPWAN Tracker (RAK5205) is based on the RAK811. At its heart is an STM32L1 microcontroller that controls a Semtech® SX1276/78 LoRa® chip.

GPS is also available as well as a range of sensors. This makes the board suitable for the rapid development of applications such as asset tracking, vehicle management, location-based services, environmental monitoring, etc. Due to its low power consumption in sleep mode, the board is also a long-lasting solution for any battery-powered project.

The support of AT commands makes configuration a breeze. For advanced users, there is open source support if custom firmware is required.

Features

• RAK811 (Semtech® 1276/78 + STM32L1) at the core
• Built-in Ublox Max 7Q GPS module
• Bosch BME680 sensor (temperature, humidity, air pressure, gas)
• LIS3DH 3-axis acceleration sensor
• Operates in battery/solar power mode
• Consumes up to 14.6uA in sleep mode
• Customized AT command firmware
• Full LoRaWAN® 1.0.2 stack support
• Interfaces include I2C, UART and ADC
• 96Boards compatible form factor (30-pin header)

Scope of delivery

• WisTrio LPWAN tracker
• GPS antenna
• LoRa® antenna
• jumpers
• DuPont cables
• Micro USB cable
