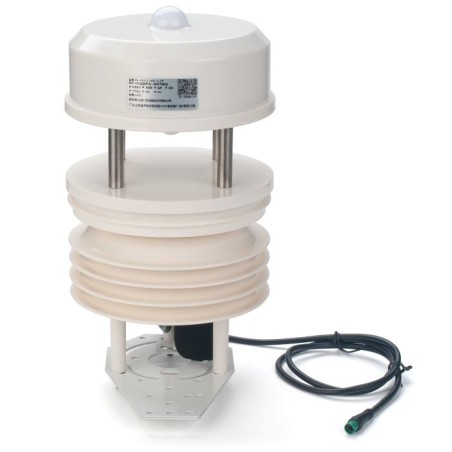

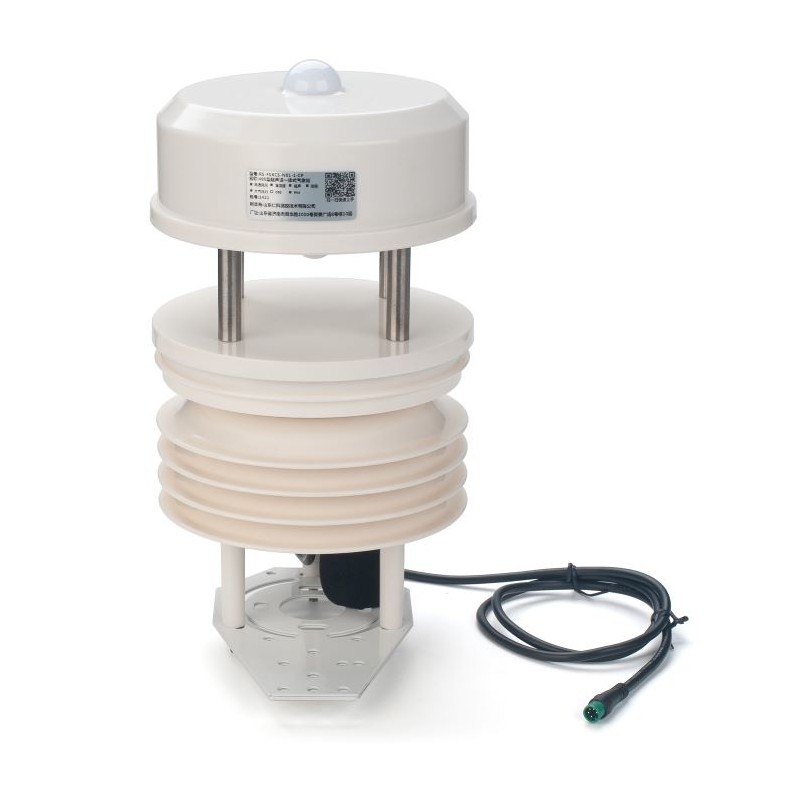

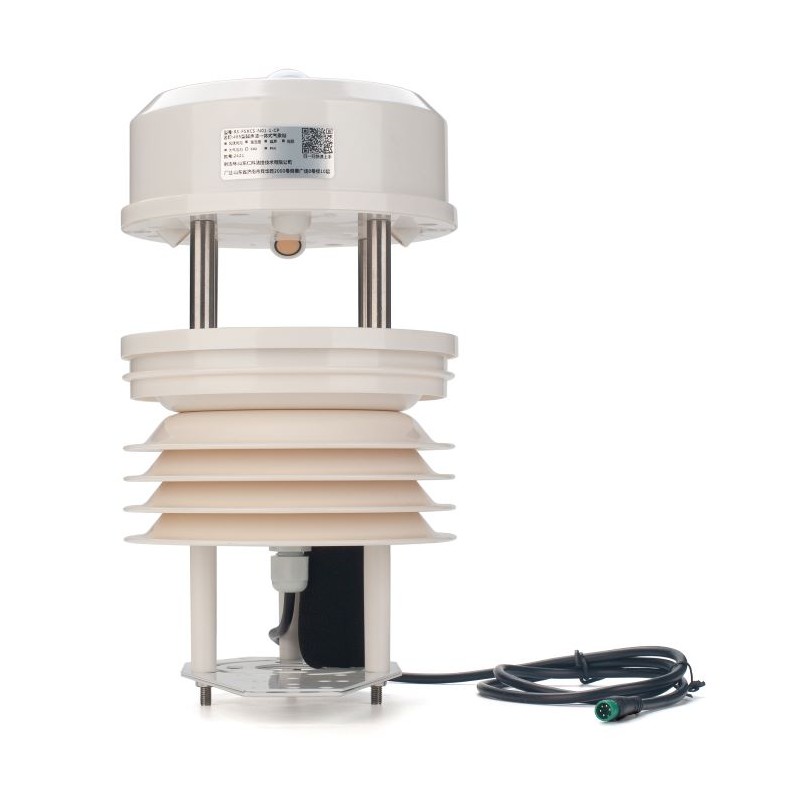

DRAGINO Weather Station v2 - 9-in-1 sensor for wind, temperature, humidity, pressure, light, particulate matter

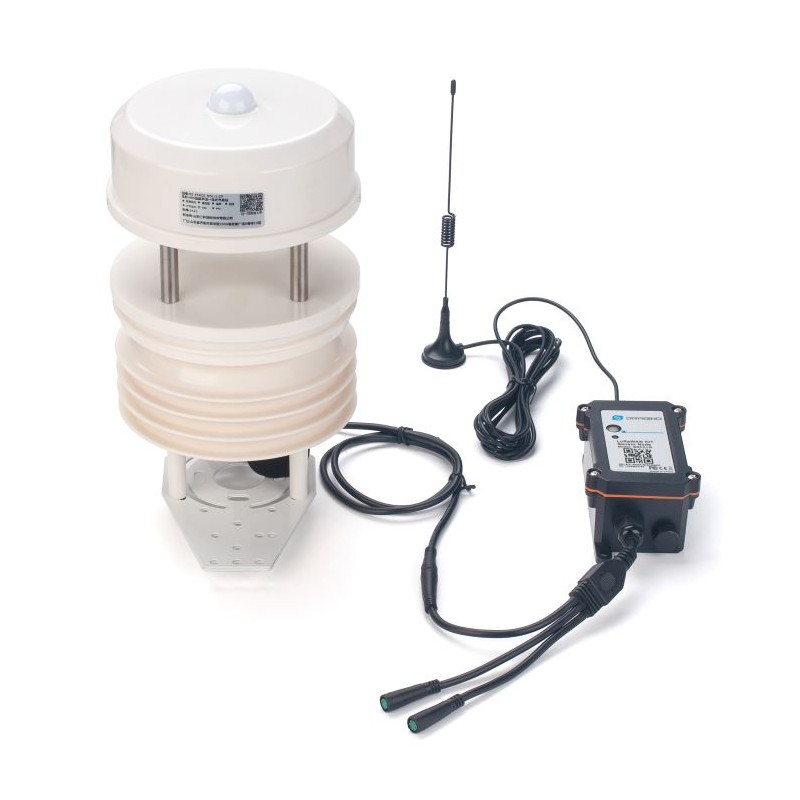

WSS-09 was developed to support the Dragino weather station solution. The 9 in 1 weather station sensors can measure the following values: Wind speed, wind direction, temperature, humidity, air pressure, illuminance, PM2.5, PM10 and noise level. The LoRaWAN transmitter uses the RS485 interface to communicate with the 9-in-1 weather station. Third-party RS485 sensors can also be connected to measure additional environmental data.

Note: Please note that the sensor is only compatible with the V2 weather station base. It is NOT intended for use with the WSC1-L.

Features:

• Power input: 10 ~ 30VDC
• Maximum power consumption: 1.2W
• Wind speed, wind direction, temperature, humidity, air pressure, illuminance, PM2.5, PM10
• Weather station sensor for WSC2-L

Sensor specification:

Wind speed:

• Range: 0~60m/s
• Accuracy: ±(0.2m/s±0.02*v)(v : the wind speed)
• Ultrasonic measurement, no starting wind speed required

Wind direction:

• Range: 0~3599
• Accuracy: +3°
• Ultrasonic measurement, no starting wind speed required
• Built-in electronic compass. No need to consider the installation direction

Temperature:

• Range: -40°C ~ +80°C
• Accuracy: +0.5°C

Humidity:

• Range: 0 ~ 99% RH
• Accuracy tolerance: Type +3% RH

Air pressure:

• Accuracy: ±0.15kPa@25°C 101kPa
• Range: 0~120kPa

Noise:

• Range: 30dB~120dB
• Accuracy: +0.5dB

PM2.5:

• Range: 0~1000ug/m3
• Accuracy: ±3%FS
• Resolution: 1ug/m3

PM10:

• Range: 0~1000ug/m3
• Accuracy: +3%FS
• Resolution: 1ug/m3

Illumination:

• Range: 0~200k Lux
• Measuring accuracy: +7%(25 °C)

Scope of delivery:

1x WSS-09 9-in-1 sensor
