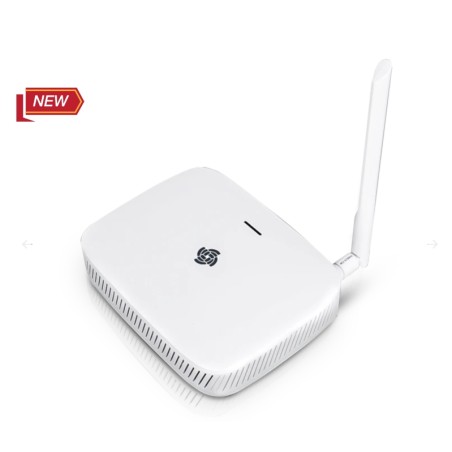

RAK Wireless · LoRa · Micro Gateway WisGate Edge Lite 2 LTE · RAK7268C LTE Indoor LoRaWAN Gateway
RAK Wireless Micro Indoor Gateway WisGate Edge Lite 2 LTE
RAK7268 DDR2 128MB, 8 Channel, LTE
overview
The RAK7268 WisGate Edge Lite 2 is a complete 8-channel indoor gateway based on the LoRaWAN protocol and features built-in Ethernet connectivity for hassle-free setup. Additionally, there is a built-in Wi-Fi setup (with support for 2.4 GHz Wi-Fi) that allows easy configuration via standard Wi-Fi AP mode. Additionally, the gateway supports LTE uplink communication connections (optional).
Like the other RAKwireless Industrial Gateways, it also supports MQTT bridge mode with the option of TLS authentication. Power over Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.
The open source software for managing and configuring this gateway device is based on OpenWRT and features an integrated LoRa packet forwarder and a graphical user interface that allows for quick setup without sacrificing the freedom of a fully customized solution.
RAK7268 also supports MQTT bridge function, which can integrate MQTT on third-party platforms.
RAK7268 is especially suitable for small and medium-sized industrial deployment scenarios, saves the additional cost of servers and R&D investment, and has the advantages of high execution efficiency.
Characteristics
- Full LoRaWAN stack support (V 1.0.3) with Semtech SX1302
- Supports 2.4GHz Wi-Fi AP for configuration
- 100M Base-T Ethernet with PoE
- Multi-backhaul with Ethernet, Wi-Fi, cellular
- OpenWRT software supports Web UI for easy configuration and monitoring
- Can be integrated with both private (ChirpStack) and public (TTN) network servers
- TF card for log backup and LoRa frame buffering (in case of backhaul failover)
- Integrated network server for easy application deployment and gateway integration
- LTE Cat 4 network
scope of delivery
- 1 x WisGate Edge Lite 2/2+
- 1 x LoRa antenna
- 1 x mounting screws
- 1 x dowel
- 1 x power adapter
Link to data sheet
RAK7268 WisGate Edge Lite 2 Datasheet | RAKwireless Documentation Center
