LUPUS XT2 PLUS - small starter pack home office

The LUPUS alarm system XT2 PLUS (4G LTE module) is very user-friendly and can be set up and installed using a web interface. As a network-based alarm system, the IP alarm control panel XT2 PLUS can be accessed at any time from any location - simply via computer, tablet or smartphone.

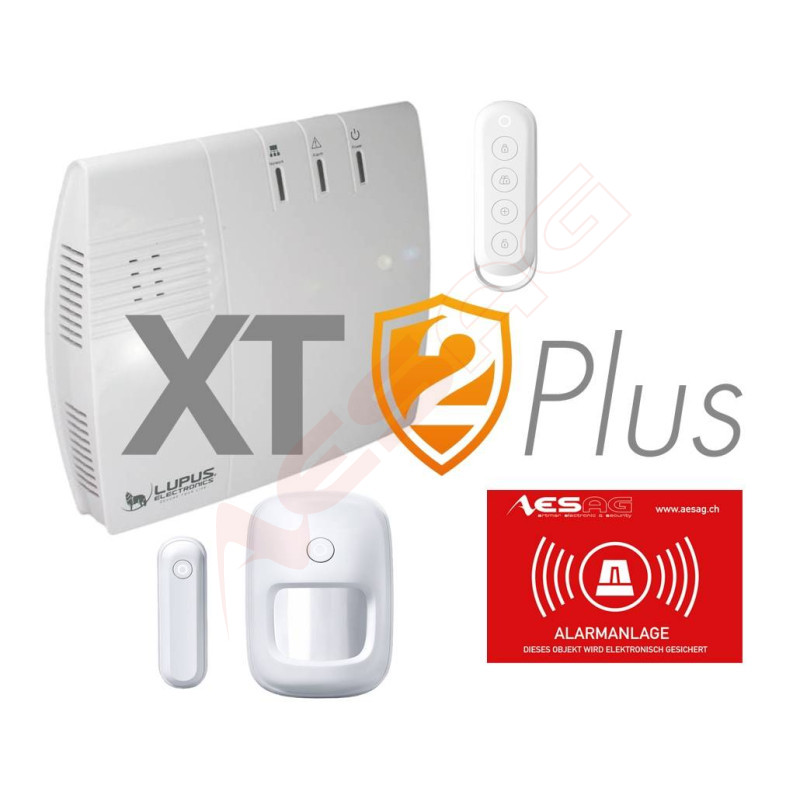

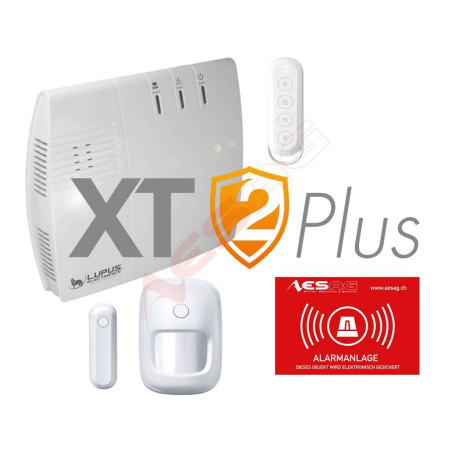

This LUPUSEC XT2 PLUS wireless alarm system set for homes or offices consists of:

• 1 x LUPUSEC XT2 PLUS - wireless alarm control panel - ( 12045 )

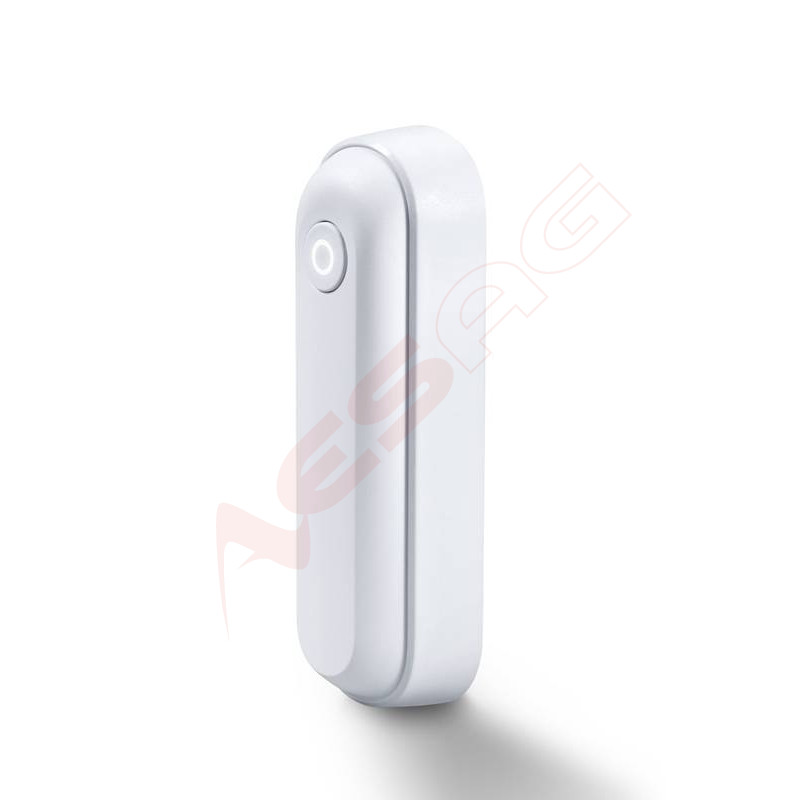

• 1 x LUPUSEC XT2 PLUS - window/door contact - ( 12113 )

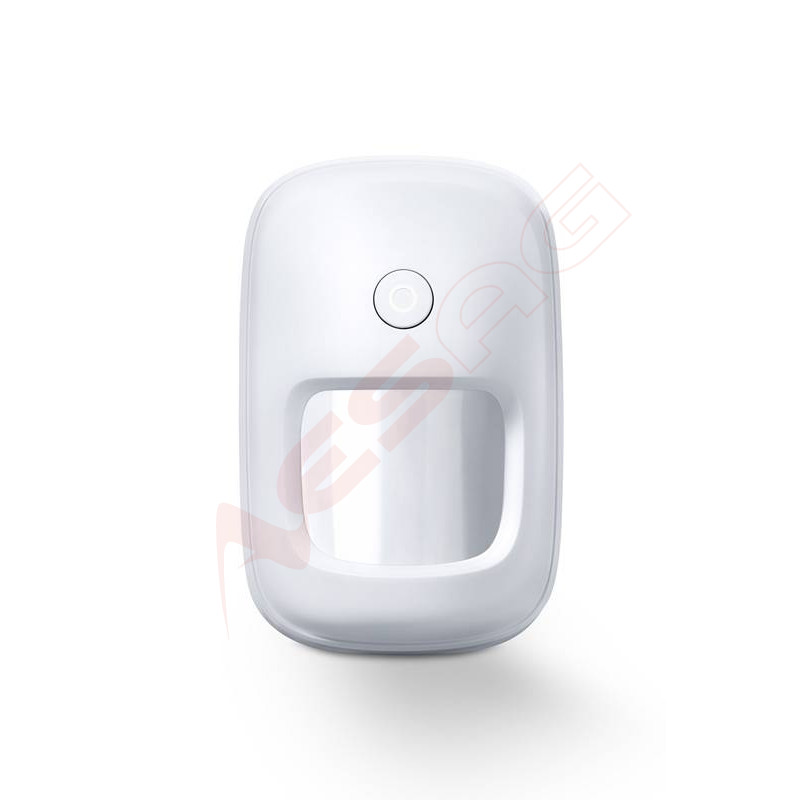

• 1 x LUPUSEC XT2 PLUS - PIR motion detector - ( 12116 )

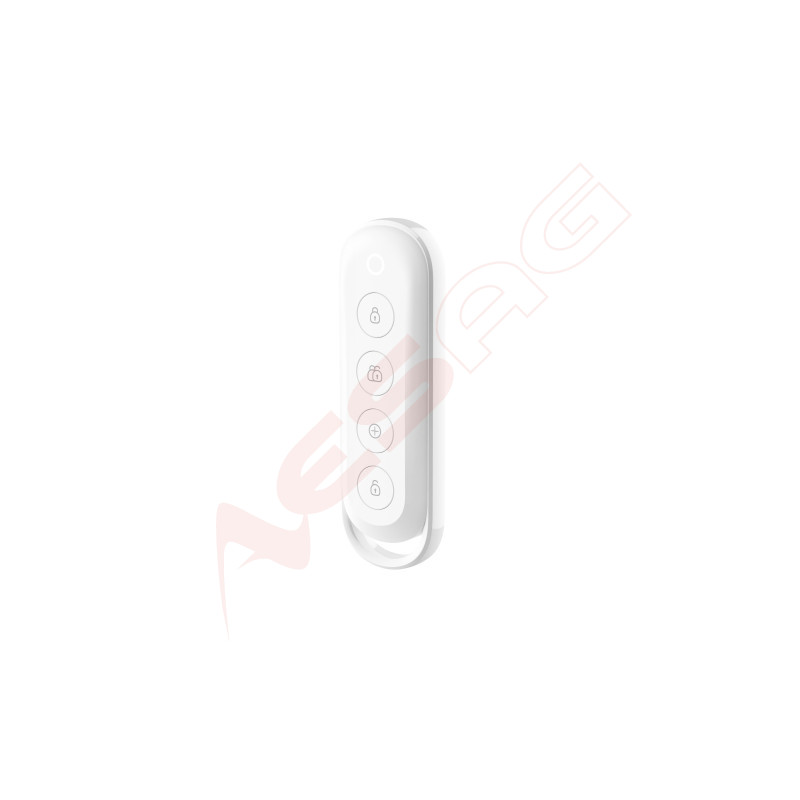

• 1 x LUPUSEC XT2 PLUS - wireless remote control - ( 12118 )
• 1x warning sticker "Alarm" - ( ART1423 )

LUPUSEC-XT2 PLUS is the IP-based "Smart Home" alarm system from LUPUS-Electronics, one of the most modern systems for building security and smart home control. With its newly developed processor core, the new LUPUSEC XT2 PLUS manages up to 160 hazard detectors (opening detectors, motion detectors, etc.) in two separately switchable alarm circuits. Each of these two alarm circuits also has three separately switchable presence modes for maximum flexibility. This means that even large buildings can be secured against burglary, fire, gas and water quickly and cost-effectively with a simple system.

The LUPUSEC-XT2 PLUS smart home alarm system is quick to set up, easy to use and can be accessed anywhere at any time - easily via computer, tablet or smartphone, using the revolutionary, clear user interface of the LUPUSEC-XT2 PLUS.

This complete set contains everything you need for operation! It is perfect for securing smaller properties or an apartment with a reliable and advanced alarm system.

"More detailed information such as detailed product descriptions, downloads, etc. can be found for each individual product on our website or from the manufacturer."

>>> Demo access Lupusec XT2 PLUS

You can download the LUPUSEC - XT1 Android APP here.

Login via username and password.	Quickly see the most important things.	Quick and easy configuration.
Arm/disarm - anytime, anywhere.	Quickly see the most important things.	Watch live.

Product Highlights:

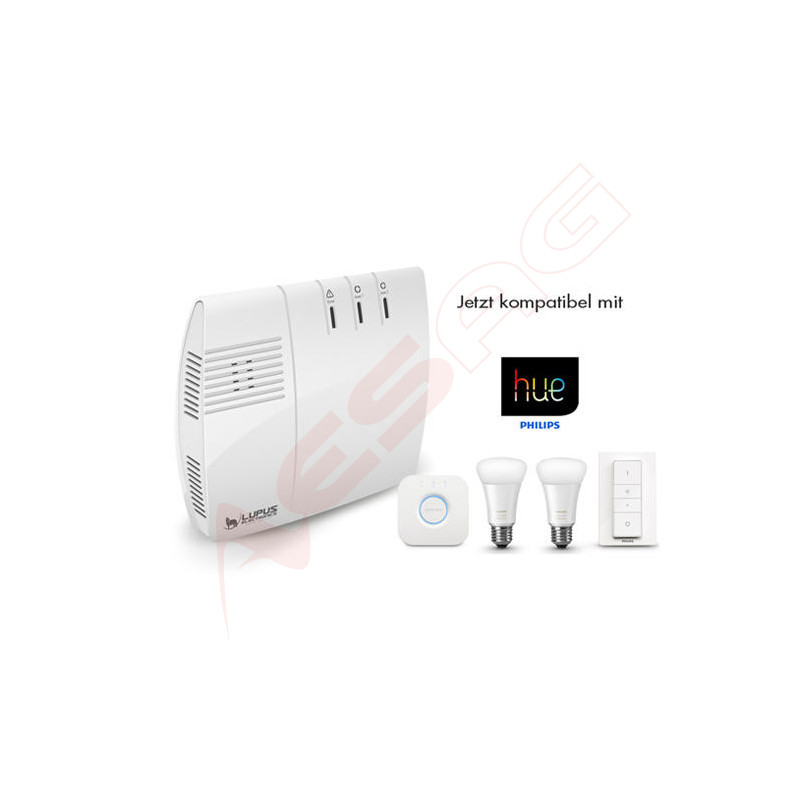

• Supports SONOS, Philips HUE, Amazon Echo, Ikea, Osram, Axis, D-Link, etc.
• For max. 160 sensors in 2 areas, 4G LTE module
• The control center links all your devices: whether radiator thermostats, smoke detectors, roller shutter controls, etc.
• Dynamic programming of sensor actions
• Data encryption to protect your data (SSL v3 256bit)
• Access via browser or free Android/iOS app
• Modern, attractive design with intuitive user interface
• free software updates

Technical data LUPUS XT2 PLUS:

• Dimensions: 175 x 150 x 40mm
• Weight: 0.56kg
• Max. number of sensors: 160 (2 areas with 80 sensors each and 3 home modes)
• Max. number of devices (radio relay, repeater): No limit
• Max. number of PIR network cameras: 6
• Max. number of analogue / digital cameras: 4 (e.g. LUPUSNET HD series or LUPUSTEC recorders)
• Sabotage display of sensors in the control panel interface: Yes
• Status display in the central interface: Yes
• Battery indicator of sensors: Yes
• UPnP support: Yes, automatically opens the ports in the router
• Internal storage of images: Yes, stores 3 images of a PIR network camera per alarm
• FTP / Email image sending: Yes
• Alarm options: Contact ID via GPRS, TCP/IP, email, phone call or SMS
• Access via: Web browser, iPhone app, iPad, Android APP
• Encryption: SSL v3 SHA-256bit with RSA encryption
• ZigBee protocol: ZBS v2.9.2.6.1
• Radio frequency: 868.6625 MHz (Dual Way) and 2.4GHz (Dual Way)
• Radio power: max. 10mW
• Transmission range: Approx. 30 to 100 meters (depending on local conditions), extendable via repeater
• Modulation: FM
• Mounting options: wall, table
• Power supply: 1600 mAh Ni-mh rechargeable emergency battery, 12V DC
• Working temperatures: -10 to +45°C
• Max. humidity: up to 90% (non-condensing)
• Certification: CE, FCC, RoHs
• Functions: Arm, Disarm, 2 Areas, Home Mode 1+2+3, Silent Alarm, Fire, Medical Alarm, Gas, Check Panel Status, Alarm Signaling
• Available additional components: We currently offer you a total of over 30 alarm system components and 20 smart home modules for a wide variety of purposes. If you have any further questions, please do not hesitate to contact us.
• Languages (web server + Android APP): German, French, English, Spanish, Italian
• Internal siren: Yes
• Remote access: via PC (web browser), MacOS (web browser), iPhone (mobile view), Android (LUPUSEC app)
• SIM card format: Mini-SIM (4G, LTE)
• Control centers/software that support connection to the XT2: Alec Sicherheitssysteme GmbH, Sicherheit-Nord GmbH & Co KG, INSOCAM's AM/Win, Bavaria Werkschutz GmbH
• Compliant with: EN 300220-1&2/EN 300328/EN 301489-1&3&17/EN 60950-1/EN 62311

Scope of delivery:

• 1x LUPUS XT2 PLUS Smarthome Central - (12045)
• 1x LUPUS remote control V3 - (12118)
• 1x LUPUS window/door contact, white - (12113)
• 1x LUPUS PIR motion detector V2 - (12116)
• 1x screws & dowels
• 1x wall mount for the LUPUS XT2 PLUS
• 1x manual
