LUPUS XT2 PLUS - IP-Funkalarmanlage 4G GSM
- Alarm center
- according to guidelines: EN 300328
- Area of application: commercial properties, house, apartment
- Operation: via web server, via app
- Max. number of sensors: 160
- Max. number of integrated IP cameras: 8
- Notifications: via emergency call center, by phone call, by SMS text, by email
- with 4G GSM module: Yes

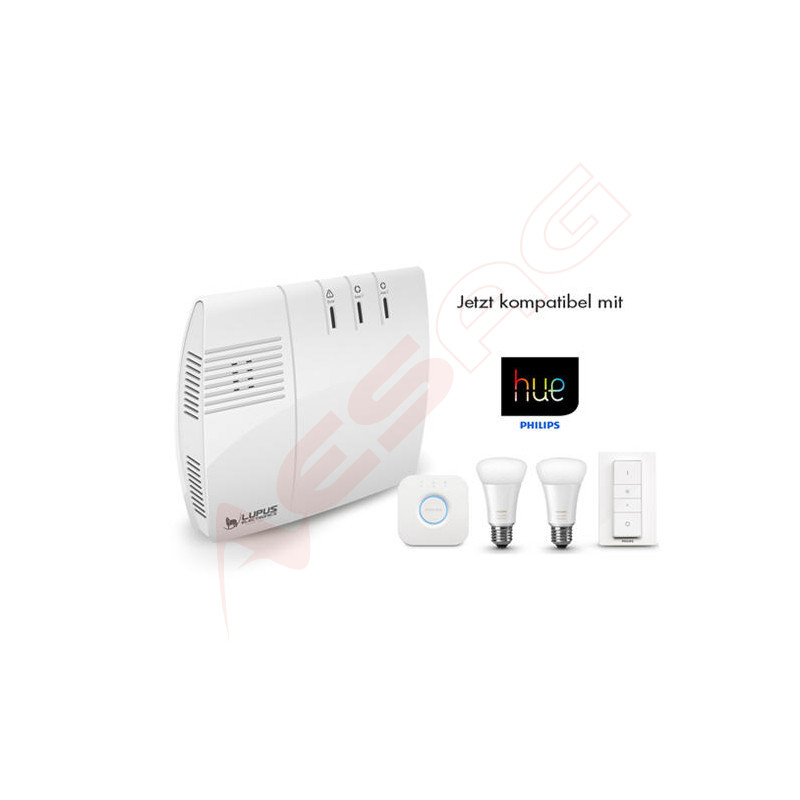

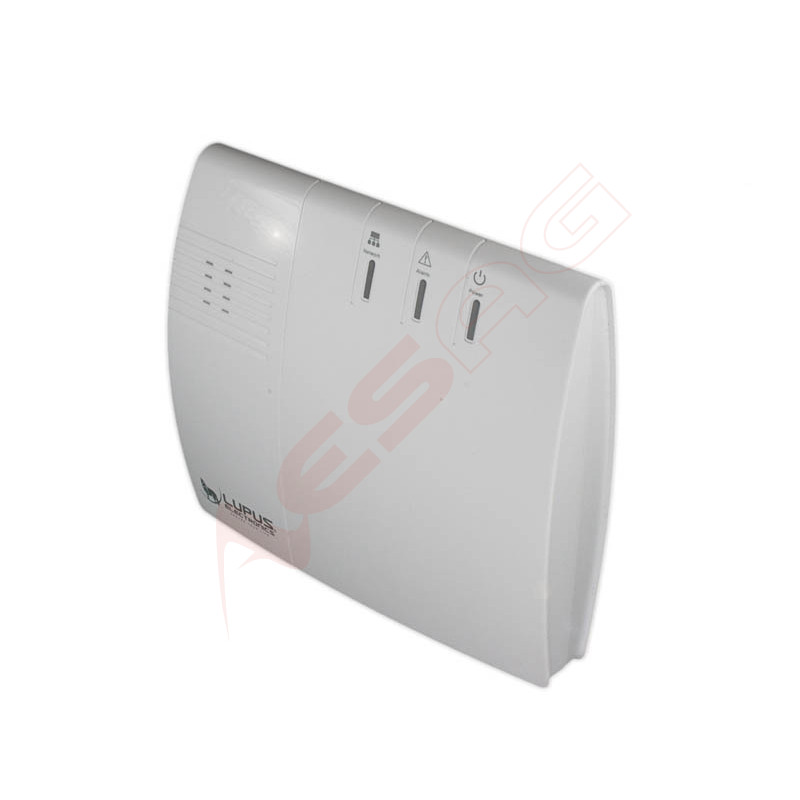

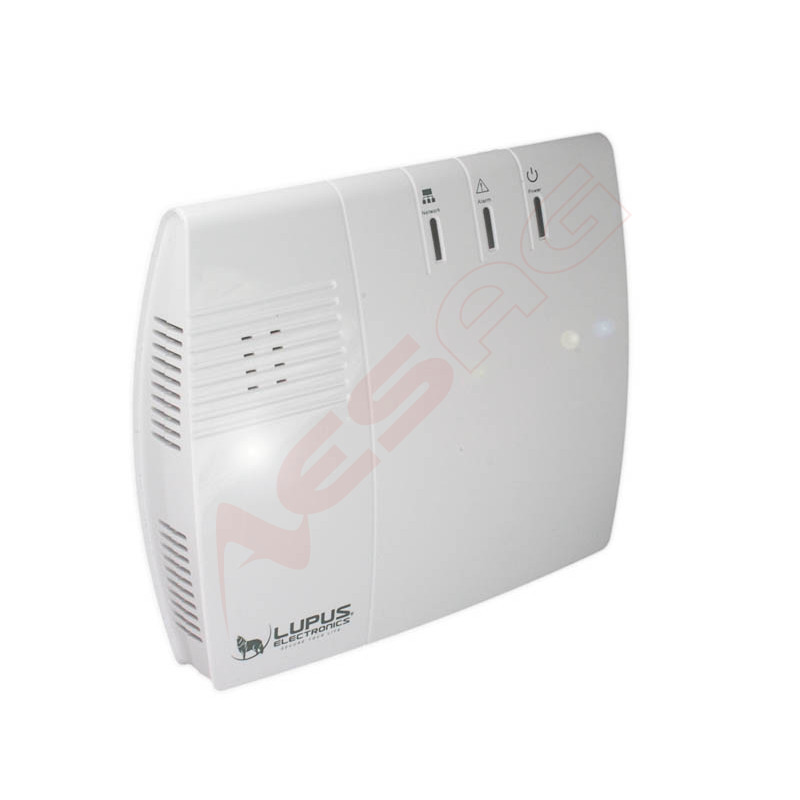

LUPUS XT2 PLUS - IP-Funkalarmanlage 4G GSM
LUPUSEC XT2 PLUS (4G-GSM) is the new smart home alarm system from LUPUS-Electronics, one of the most modern systems for building security and smart home control.
With its newly developed processor core, the new LUPUSEC - XT2 manages up to 160 danger detectors in two separately switchable alarm circuits. Each alarm circuit also has 4 separately switchable zones for maximum flexibility. This means that even large buildings can be secured against burglary, fire, gas and water quickly and cost-effectively with a simple system.
The LUPUSEC XT2 PLUS smart home alarm system is quick to set up, easy to use and can be accessed anywhere at any time - simply via computer, tablet or smartphone, using the revolutionary, clear user interface of the LUPUSEC XT2.
Would you like to check the alarm status while you are on the move? Or switch alarm zones on or off individually? Or just check whether all doors and windows are closed? No problem, just look at your smartphone, for example, and you can continue to enjoy your day in peace. A large number of alarm sensors are available for the LUPUSEC XT2 PLUS Smart Home alarm system. You can connect door and window sensors, motion detectors, video surveillance, glass breakage, smoke and fire detectors, gas and water detectors or temperature sensors to your alarm system with just a few clicks. All sensors are connected to the alarm system via a highly developed radio system and reliably alarm as soon as the status of a sensor changes. This also means that you do not have to lay any cables for power or signals.
A flexible function assignment of the detectors ensures extensive smart home automation functions:
Examples:
- When sensor X triggers, execute command Y.
- When the front door is opened, the light in the entrance area switches on automatically and all entertainment devices (standby) get power again.
- If the motion detector in the bathroom detects movement at night, the bathroom light automatically switches on.
- If the front door is opened or closed, the alarm system is automatically armed or disarmed.
- Allows the connection of third-party sensors (via our wireless sensor input) with dynamic actions
To set up, simply connect the control unit to your router and install the battery-operated sensors in the desired location and connect them to the control unit.
Alarms can be sent by email, SMS or with the global emergency call center standard CONTACT ID. These services can also be transmitted via the integrated GSM module. If you have set up the corresponding services, you or your emergency call center will be notified when an alarm is triggered.* And of course you can easily integrate our video surveillance systems such as the IP cameras from the LUPUSNET series and the recorders from the LUPUSTEC - LE800 series into the user interface of the LUPUSEC alarm system. For example, after an alarm has been triggered you can immediately check the status of your premises via video surveillance. Simple, right? And safe! Guaranteed
*To use the GSM module, a mobile SIM card is required (not included). Using third-party services may incur additional costs.
You can download the LUPUSEC XT2 Android APP here.
Login via username and password. | Quickly see the most important things. | Quick and easy configuration. |
Arm/disarm - anytime, anywhere. | Quickly see the most important things. | Watch live. |
Highlights of the Lupusec XT2 PLUS:
- Supports Philips HUE, Amazon Echo, Ikea, Osram, Axis, D-Link, etc.
- For max. 160 sensors in 2 areas, 4G LTE module
- The control center links all your devices: whether radiator thermostats, smoke detectors, roller shutter controls, etc.
- Dynamic programming of sensor actions
- Data encryption to protect your data (SSL v3 256bit)
- Access via browser or free Android/iOS app
- Can be controlled via SMS commands (mode, sockets, image retrieval, etc.)
- Modern, attractive design with intuitive user interface
- free software updates
Technical data of the Lupus XT2:
- Dimensions: 175 x 150 x 40mm
- Weight: 0.56kg
- Max. number of sensors: 160 (2 areas with 80 sensors each and 3 home modes)
- Max. number of devices (radio relay, repeater): No limit
- Max. number of PIR network cameras: 6
- Max. number of analogue / digital cameras: 4 (e.g. LUPUSNET HD series or LUPUSTEC recorders)
- Sabotage display of sensors in the control panel interface: Yes
- Status display in the central interface: Yes
- Battery indicator of sensors: Yes
- UPnP support: Yes, automatically opens the ports in the router
- Internal storage of images: Yes, stores 3 images of a PIR network camera per alarm
- FTP / Email image sending: Yes
- Alarm options: Contact ID via GPRS, TCP/IP, email, phone call or SMS
- Access via: Web browser, iPhone app, iPad, Android APP
- Encryption: SSL v3 SHA-256bit with RSA encryption
- ZigBee protocol: ZBS v2.9.2.6.1
- Radio frequency: 868.6625 MHz (Dual Way) and 2.4GHz (Dual Way)
- Radio power: max. 10mW
- Transmission range: Approx. 30 to 100 meters (depending on local conditions), extendable via repeater
- Modulation: FM
- Mounting options: wall, table
- Power supply: 1600 mAh Ni-mh rechargeable emergency battery, 12V DC
- Working temperatures: -10 to +45°C
- Max. humidity: up to 90% (non-condensing)
- Certification: CE, FCC, RoHs
- Functions: Arm, Disarm, 2 Areas, Home Mode 1+2+3, Silent Alarm, Fire, Medical Alarm, Gas, Check Panel Status, Alarm Signaling
- Available additional components: We currently offer you a total of over 30 alarm system components and 20 smart home modules for a wide variety of purposes. If you have any further questions, please do not hesitate to contact us.
- Languages (web server + Android APP): German, French, English, Spanish, Italian
- Internal siren: Yes
- Remote access: via PC (web browser), MacOS (web browser), iPhone (mobile view), Android (LUPUSEC app)
- SIM card format: Mini-SIM (4G, LTE)
- Control centers/software that support connection to the XT2: Alec Sicherheitssysteme GmbH, Sicherheit-Nord GmbH & Co KG, INSOCAM's AM/Win, Bavaria Werkschutz GmbH
- Compliant with: EN 300220-1&2/EN 300328/EN 301489-1&3&17/EN 60950-1/EN 62311
Scope of delivery of the Lupusec XT2:
