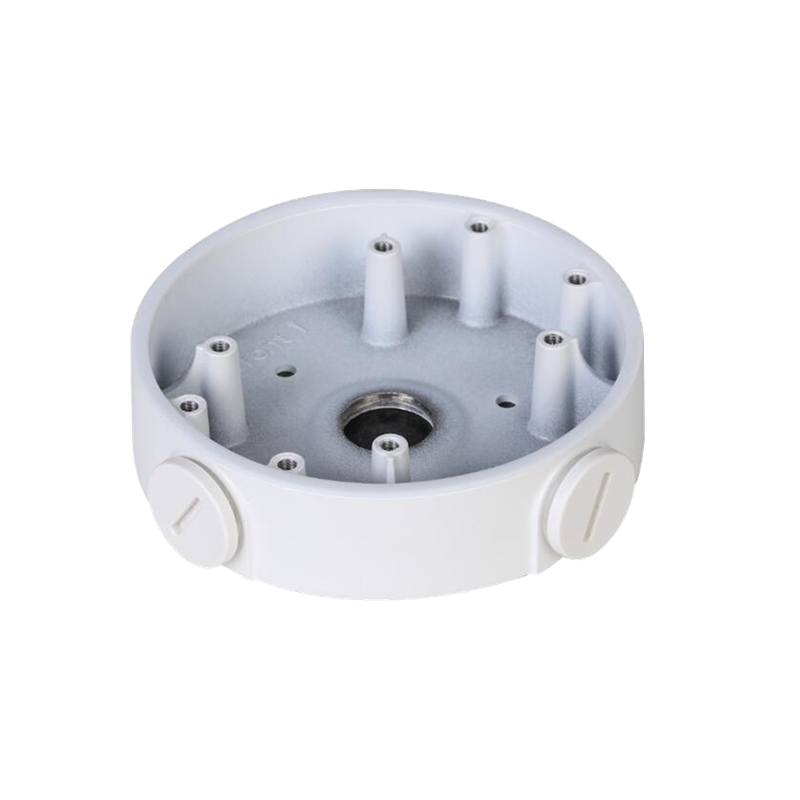

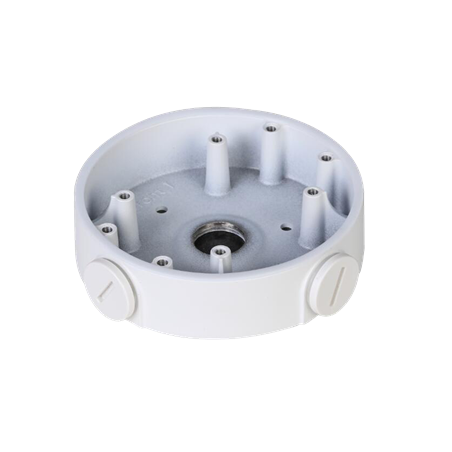

The mini mounting box for the LE228 and the GEODOME LE339HD is screwed directly under the network camera and acts like an extended base plate. But it is of course large enough to accommodate all cable connections. This means that everything is laid out neatly and aesthetically pleasing. Of course, the cables and plug connections are also protected from the weather.
The mini mounting box for the LE228 and the GEODOME LE339HD is screwed directly under the network camera and acts like an extended base plate. But it is of course large enough to accommodate all cable connections. This means that everything is laid out neatly and aesthetically pleasing. Of course, the cables and plug connections are also protected from the weather.
Technical data |
|
| material | aluminum |

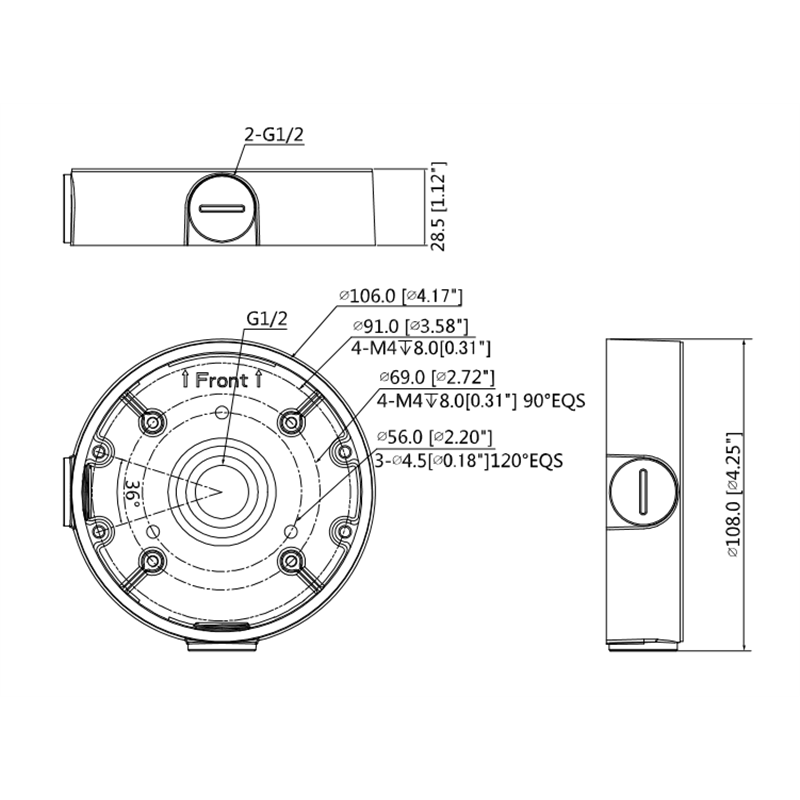

| dimensions (D x H) | 108mm x 28.5mm |
| thread dimensions | G3/4” |
| operating temperatures | -40ºC ~60ºC |
| humidity | 0~90% RH |
| holding power | 3.0Kg |
| Weight | 0.57Kg |
| protection class | IP66 |
