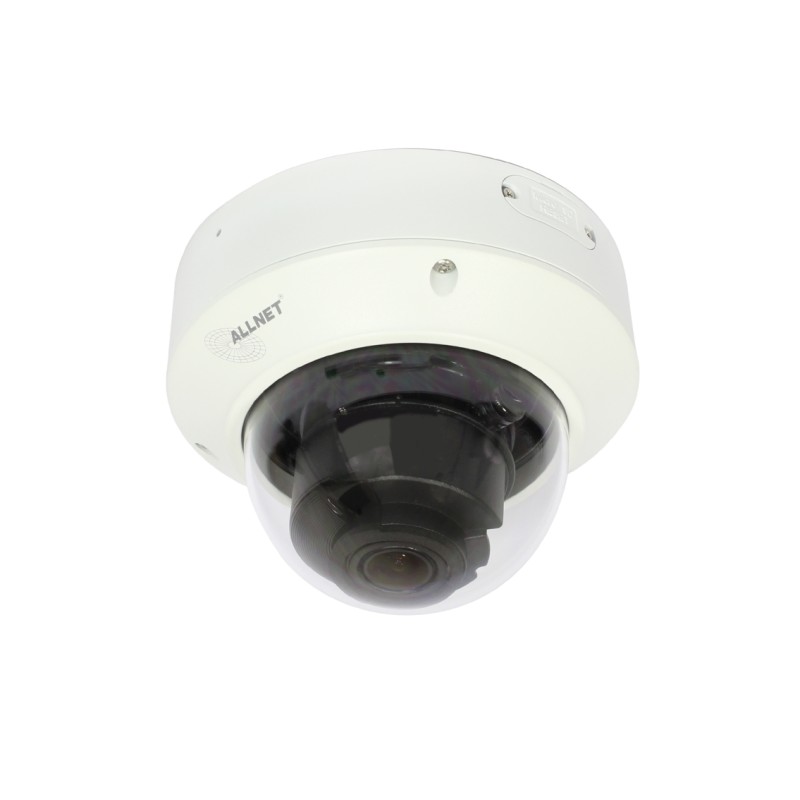

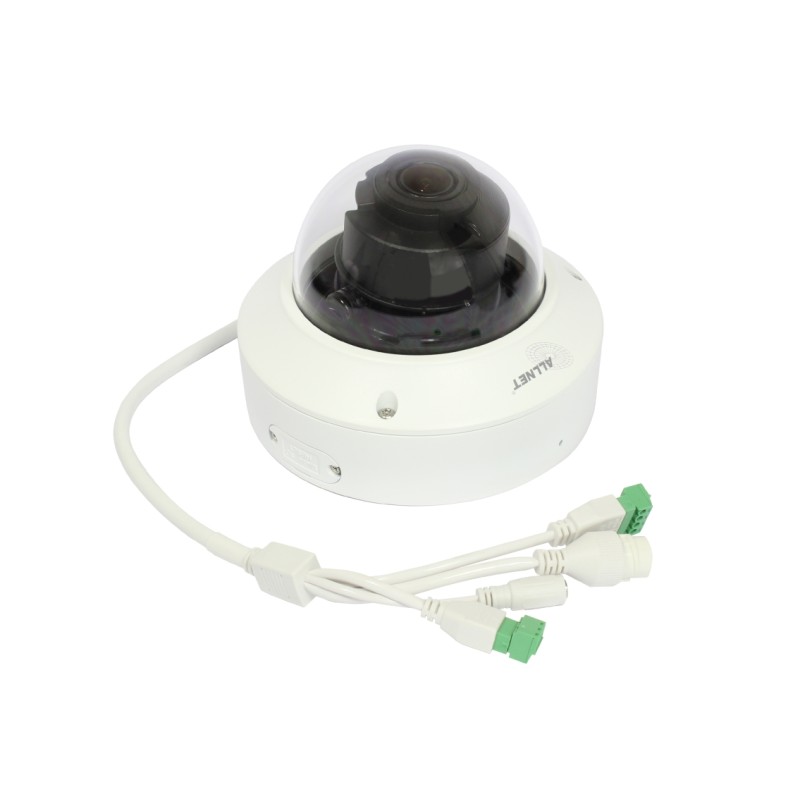

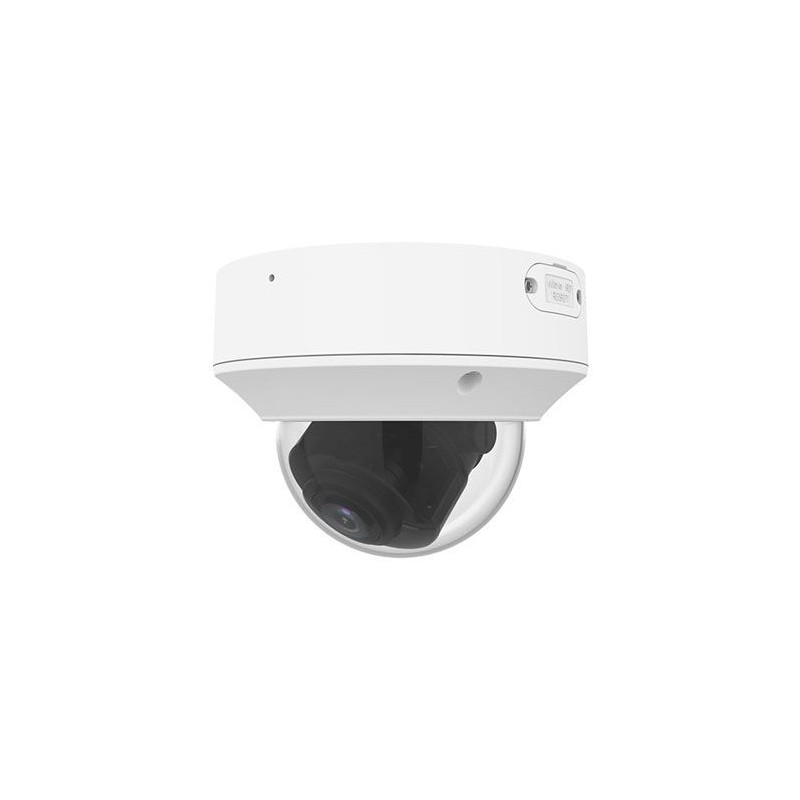

ALL-CAM2495v3-LVEFN | |||||||
Camera | |||||||
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||
Lens | 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens | ||||||
Iris | Auto aperture | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | 7.1(23.3ft) | |||
13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | 24.8(81.2ft) | |||
Angle of View (H) | 26.8°~93.1° | ||||||
Angle of View (V) | 20.7°~66.0° | ||||||
Angle of View (O) | 31.6°~121.0° | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Adjustment angle | Pan: 0°~355° | Tilt: 0°~80° | Rotate: 0°~355° | ||||
Min. Illumination | Colour:0.002ux (F1.2, AGC ON) 0 lux with IR | ||||||
WDR | 120dB | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
IR Range | Up to 50m (164 ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Defog | Digital Defog | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
Frame Rate | Main Stream: 5MP(2592*1944),Max 20fps 4MP(2560*1440),Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps | ||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
ROI | Supported | ||||||
Video stream | Triple streams | ||||||
OSD | Up to 8 OSDs | ||||||
Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart IR | Support | ||||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
HLC | Support | ||||||
BLC | Support | ||||||
Events | |||||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
Audio | |||||||
Audio Compression | G.711U, G.711A | ||||||
Two-way Audio | Supported | ||||||
Suppression | Supported | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256 GB | ||||||
Network Storage | ANR,NAS(NFS) | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
Client | EZStation EZLive Ezview | ||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
Interface | |||||||
Audio I/O | Audio cable | ||||||
1 Input: impedance 35kΩ amplitude 2V [p-p] | |||||||
1 output: impedance 600Ω amplitude 2V [p-p] | |||||||
Alarm I/O | 1/1 | ||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
Certification | |||||||
Certifications | CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 | ||||||
General | |||||||
Power | DC12V(±25%), PoE(IEEE 802.3af) | ||||||
Power consumption: Max 8W | |||||||
Support overcurrent protection, Input short circuit protection | |||||||
Dimensions (Ø x H) | Φ148.0 x 111.4mm (Φ5.8’’ x4.4’’) | ||||||
Weight | 0.93kg(2.05lb) | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge protection | 6KV | ||||||
Vandal Resistant | IK10 | ||||||
Ingress Protection | IP67 |
