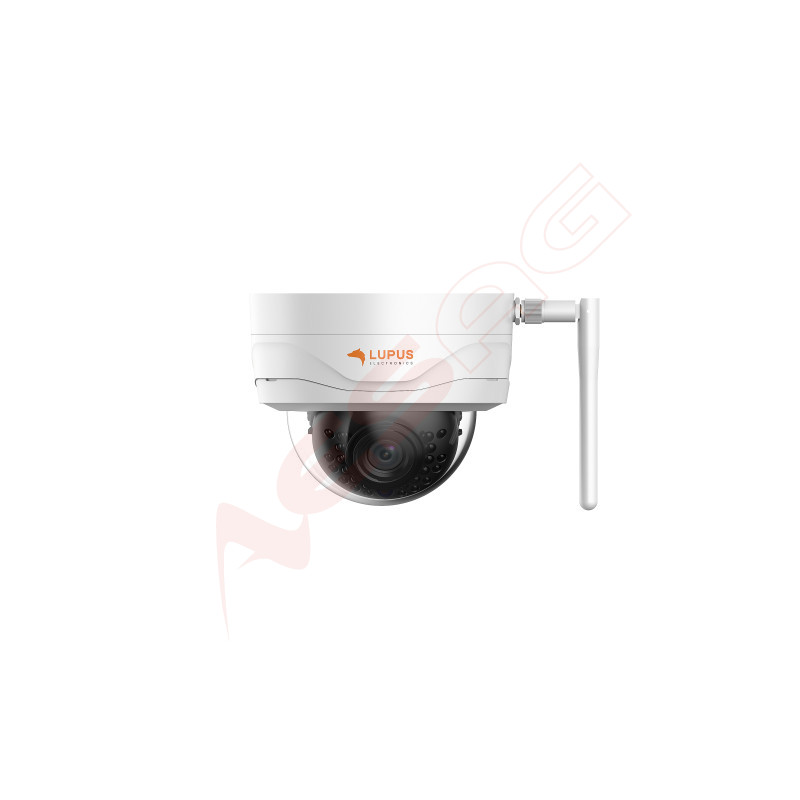

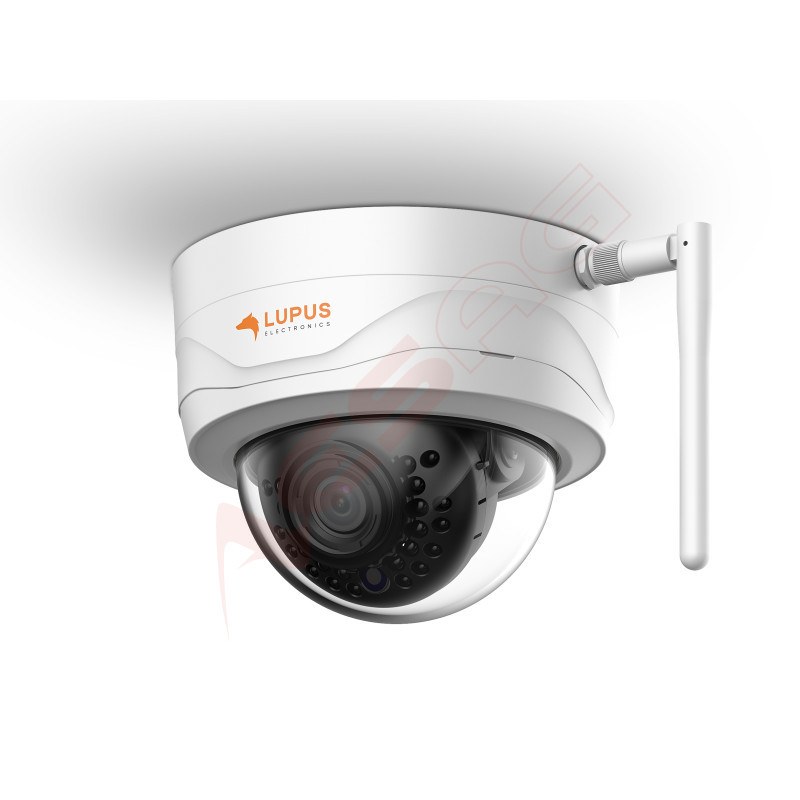

LUPUSNET | LE204 1080p T/N IR WLAN IP67 4MPx
- 4MPx Dome Camera
- Application area: Outdoor, with day & night vision
- Connection type: IP (Ethernet cable), WLAN
- Viewing angle (horizontal): 100°
- Focal length: 2.8 mm
- Night vision via: Infrared
- Infrared range: 30 m
LUPUSNET | LE204 1080p T/N IR WLAN IP67 4MPx
LUPUS - LE204. The new benchmark for HD in your home.
The LUPUS - LE204 is the new benchmark for HD video surveillance from the German manufacturer LUPUS-Electronics. With features such as the ultra-sensitive 4 megapixel image sensor for resolutions of up to 2560 x 1440 pixels, the 100° wide-angle lens and the 30m night vision range, the new LUPUSNET - LE204 is an unbeatable ally for your project. The high-quality dome housing with IP67 and IK10 protection class allows you to use this camera anywhere - neither the depths of winter nor the height of summer are a problem for this camera. Or simply: A camera that leaves nothing to be desired.
Product Highlights:
- 4 megapixels, max. 2560 x 1440 pixels at 20 FPS
- IR night vision up to 30 meters
- 2.8mm lens with viewing angle of 100°
- WLAN capable
- Suitable for SD cards up to 128gb
- Suitable for wall and ceiling mounting
- additional mounting box available
- Recording can be started and stopped via the Lupusec alarm system!
Hardware |
|
Image Sensor | High resolution color 1/3" 4 megapixel CMOS sensor |
Resolutions | 20 frames per second: 4MP (2560x1440) / 3MP (2304 x 1296) 25/30 frames per second: 1080p (1920 x 1080) / 1.3MP (1280×960) / 720P(1280×720) / VGA(640×480)/QVGA(320×240) |
Viewpoint | 100° Horizontal, 55° Vertical, F2.0, 2.8mm |
lens | 2.8mm; f 2.0 fixed lens |
Minimal lighting conditions | 0.1 Lux /F2.0 (color), 0 Lux /F2.0 (IR on) |
Night vision range | Maximum 30 meters |
Video |
|
Stream | Dual-Stream |
Backlight compensation | BLC / HLC / D WDR |
Video compression | H.264 / H.264 B / H.264 H / MJPEG |
frames per second | 1-25 |
Bit Rate | 32kbps - 10240Kbps |
Bit Rate | 32kbps - 10240Kbps |
Motion detection | Adjustable in four regions |
Privacy zone masking | Four areas can be set up |
Day / night switching | Automatic switching Day mode Night mode |
Audio | - |
network |
|
Network connection | RJ-45 (10/100Base-T) |
Wireless | Wi-Fi(IEEE802.11b/g) |
Power over Ethernet (POE) | NO |
Network protocols | HTTPS; HTTPS; TCP; ARP; RTSP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; npt; Hello; multicasting; ICMP; IGMP; ONVIF |
App support | LUPUS app for iOS and Android |
storage |
|
SD card slot | Yes, MicroSD up to 128GB (not included) |
storage | SD card FTP NAS On local computer |
Product data |
|
Power consumption | DC 12V ~ 5.5W (IR on) |
operating temperatur | -10°C to +50°C; < 95% humidity |
Dimensions | 81mm (H) x 109.9mm ø |
Protection class | IP67 (weatherproof) & IK10 |
Weight | 470g with packaging |
scope of delivery |
|
LUPUSNET HD network camera model LE204 | Manual |
Power supply 12V 1A | Software LUPUS SmartVision |
