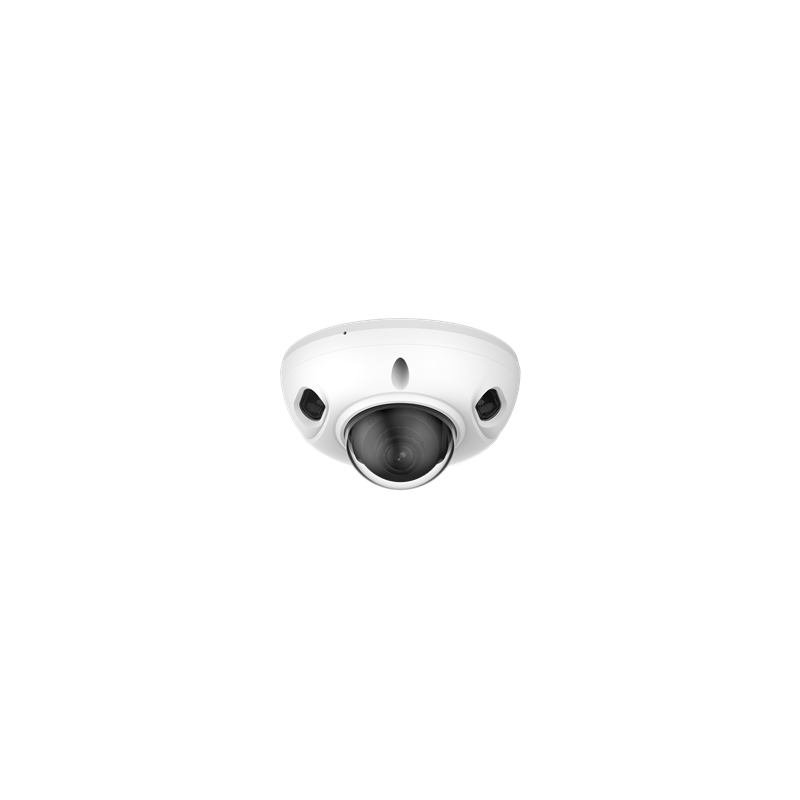

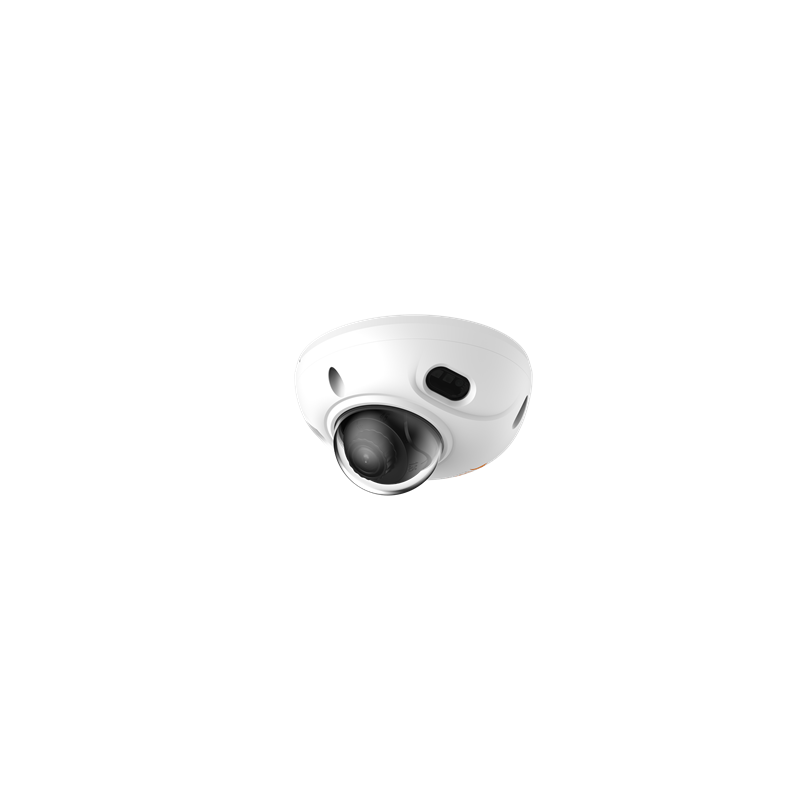

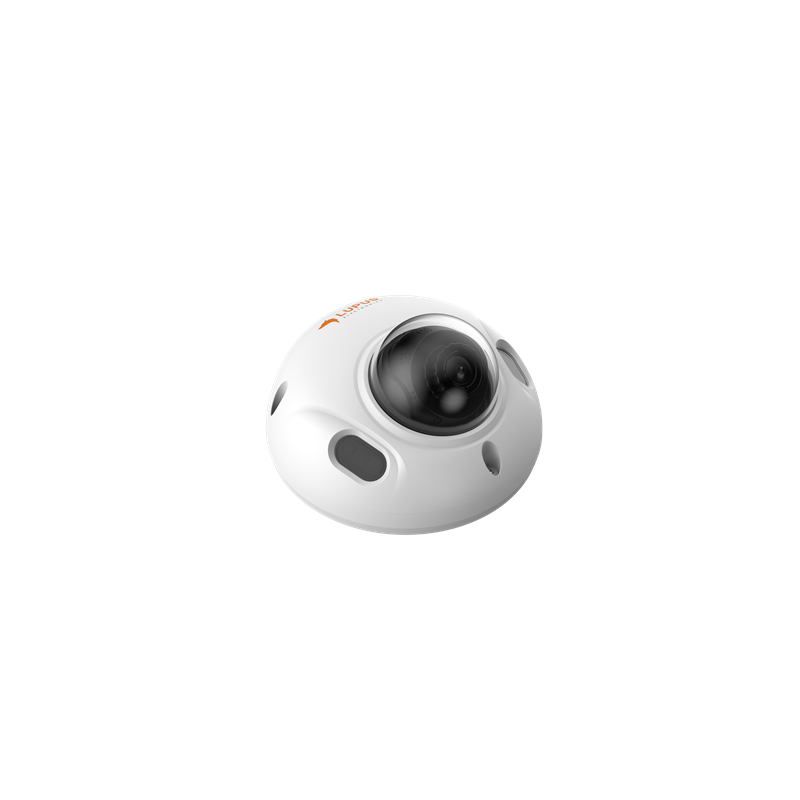

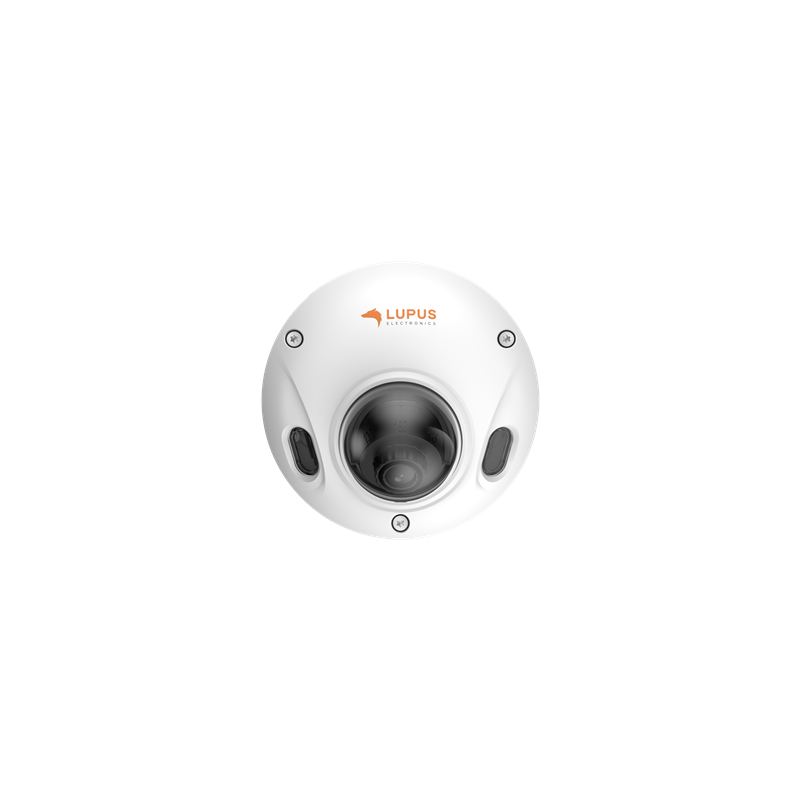

LUPUSNET | LE228 IP-Camera 4MPx T/N IR PoE IP66 IK10
- 4 megapixel dome camera
- Application area: Outdoor, with day & night vision
- Connection type: IP (Ethernet cable)
- Viewing angle (horizontal): 55°
- Focal length: 6 mm
- Night vision via: Infrared
- Infrared range: 50 m
- SD card slot: Yes
- Backlight compensation: Yes
- WDR: Yes, 120dB
- IR cut filter: Yes
- Video compression: H.265+, H.265, H.264+, H.264
LUPUSNET | LE228 IP-Camera 4MPx T/N IR PoE IP66 IK10
Professional 4 megapixel IP camera in an extremely small housing: The LUPUS - LE228 meets almost every requirement with up to 2688 x 1520 pixels at 25 FPS in real-time display.
Its excellent features combined with the extremely affordable price structure and low installation effort make it an unbeatable ally for every challenge. This mini dome has a small, robust housing that is extremely quick to install and has an integrated microphone. In addition, the powerful H.265 compression, connection options via Ethernet, ONVIF live streaming and much more ensure excellent transmission performance in any network.
Intelligent video analysis functions such as "intruder detection" or "border crossings" ensure reliable perimeter protection.
Quick to set up, easy to use
The settings menu developed for this IP camera series is designed to guide the user through the camera's functions simply and intuitively. If you still have any questions, don't hesitate to call us!
The LE228 IP camera is easy to install.
The new LE228 is extremely easy to set up using the free iOS and Android app. A wizard guides you through the basic settings and enables remote access while on the move without complicated network settings. The camera is PoE-capable (power supply directly via the network cable) and has a particularly robust, weatherproof IP67 housing.
Product Highlights:
- 4 megapixels, max. 2688x1520 pixels with H.265+ compression
- IR night vision up to 50 meters
- 2.8mm lens with viewing angle of 103°
- WDR , 3D DNR, HLC, BLC
- High-quality housing with protection class IP67 & IK10 for outdoor use
- Suitable for SD cards up to 256GB
- Suitable for wall and ceiling mounting
Technical data:
Hardware |
|
Sensor type | High resolution color 1/3" 4 megapixel CMOS sensor |
Resolutions | 4 megapixels (2688x1520) |
Viewpoint | 103° horizontal, 55° vertical |
lens | 2.8mm |
Minimal lighting conditions | 0.005Lux /F1.6 |
Night vision range | Maximum 50 meters (8 IR LEDs) |
Video |
|
Stream | Dual-Stream |
Backlight compensation | BLC / HLC / WDR (120dB) |
Video compression | H.265/ H.264 H/ MJPEG (Sub Stream) |
frames per second | Main Stream: 2688x1520 (1~25fps) Sub Stream: 704x576 (1~25fps) |
Bit Rate | H.264 : 3Kbps~8192Kbps H.265: 3Kbps~8192Kbps |
Motion detection | Adjustable in four regions |
Day / night switching | Automatic switching Day mode Night mode |
Audio | Yes, G.711a; G.711Mu; G726; AAC |
network |
|
Network connection | RJ-45 (10/100Base-T) |
Wireless | - |
Power over Ethernet (POE) | yes, 802.3af |
Network protocols | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;Onvif, ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;SNMP |
App support | LUPUS app for iOS and Android |
storage |
|
SD card slot | Yes, MicroSD up to 256GB (not included) |
storage | SD card FTP NAS On local computer |
Product data |
|
Power consumption | ~5.7W |
operating temperatur | -30°C to +60°C; < 95% humidity |
Camera dimensions | 55mm x ø108.9mm (H x W) |
Protection class | IP67 (weatherproof) & IK10 |
Weight | ~540g with packaging |
Scope of delivery:
LUPUS IP camera LE228 | Drilling template, waterproof network cable connector |
Power supply 12V 0.5A | Mounting screws, star socket wrench |
