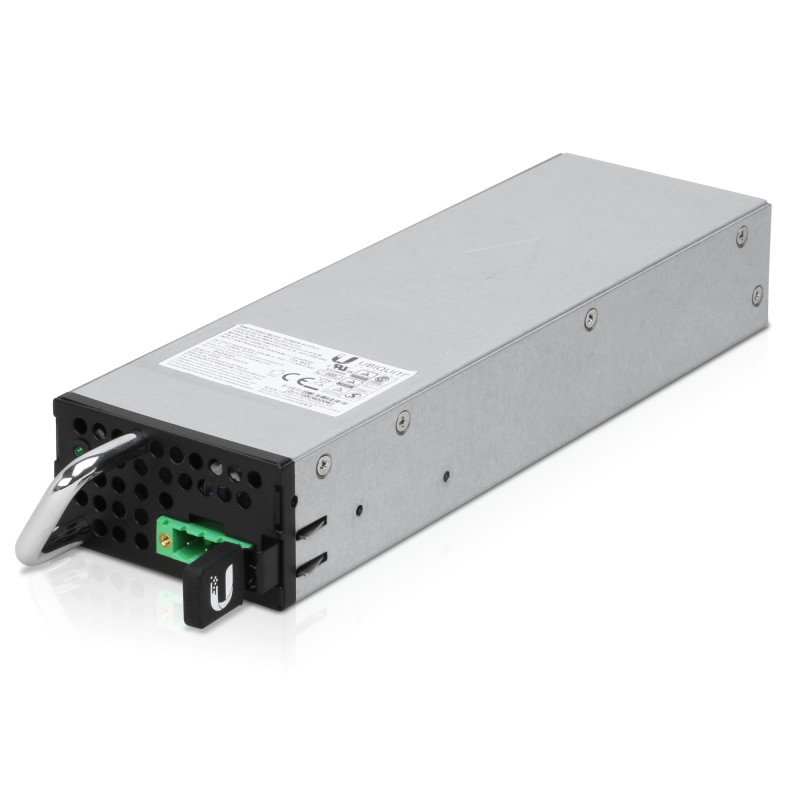

EdgePower-Modul (150 W)
EdgePower-Modul (150 W)
EdgePower-Modul (150 W)
Power supply module for use with the EdgePower EP Supply (54V 150W model)
54V, 150W max. power
Increase the total power up to 300 W
Compatible with EdgePower EP-54V-150W
Technical specifications
| EP-54V-150W-AC | |
|---|---|
| Power method | AC/DC 150 W for 110-240 VAC input, DC terminal block for 54 V output |
| Power supply | AC/DC 150 W for 110-240 VAC input |
| Voltage range | AC/DC for 110-240 VAC input, 54 V output |
| LED | System on/off |
| ESD/EMP protection | Air ± 8 kV Contact ± 6kV |
| operating temperatur | 0 to 40 °C (32 to 104 °F) |
| Operating humidity | 10 - 90 % non-condensing |
| Certifications | CE, FCC, IC |
| EP-54V-150W-DC | |
| Power method | DC/DC 150 W for 22-60 V input, DC terminal block for 54 V output |
| Power supply | DC/DC 150 W for 22-60 V input |
| Voltage range | DC/DC for 22-60 V input, 54 V output |
| Battery type | Lead-acid battery series 2/3/4 |
| Maximum charging voltage 2 series, 3-series, 4-series | 26.8 – 27.5V, 40.2 – 41.2V, 53.6 – 55V |
| Discharge protection voltage 2 series, 3-series, 4-series | 21.5V , 32V , 43V |
| Charging current 2 series, 3-series, 4-series | 0.3A 0.3A 0.2A |
| LED | System on/off |
| ESD/EMP protection | Air ± 8 kV Contact ± 6kV |
| operating temperatur | 0 to 40 °C (32 to 104 °F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
Details about EdgePower-Modul (150 W)
Manufacurer:
EP-54V-150W-DC
Weight:
EP-54V-150W-DC
