Professional power distributor for video cameras, 4 ports 12V / 60W

Article Nr PD-60-4-SLIM
  • Slim power distributor
  • 1 AC input 220 V 5OHz
  • 4 outputs per copper pair
  • Protection by resettable fuse
  • output voltage 12 V / 60 W
  • metal housing
68.00
Tax included
0/5
Delivery in 48-72H

Professional power distributor for video cameras, 4 ports 12V / 60W

Professional power distribution box. It serves as a central power supply for multiple cameras or other security devices that provide individual protection.

Provides a total power of 60W (5A) evenly distributed across 4 DC 12V outputs with connection per port. The source is powered by a wall outlet (AC 96~264V).

It has several protection systems to ensure proper operation of the system:

  • 5A tube fuse for general protection at the source input
  • Resettable PTC fuse for each individual output up to 1250 mA
  • protection against short circuits
  • protection against overvoltage and current peaks

It includes an EMI filter to avoid electromagnetic interference to other equipment or nearby cables. Thanks to the power factor correction (PFC), the electrical costs of reactive power in industrial plants are avoided. Low noise output for clean and stable operation of the connected equipment. The output voltage is fixed in DC 12 V.

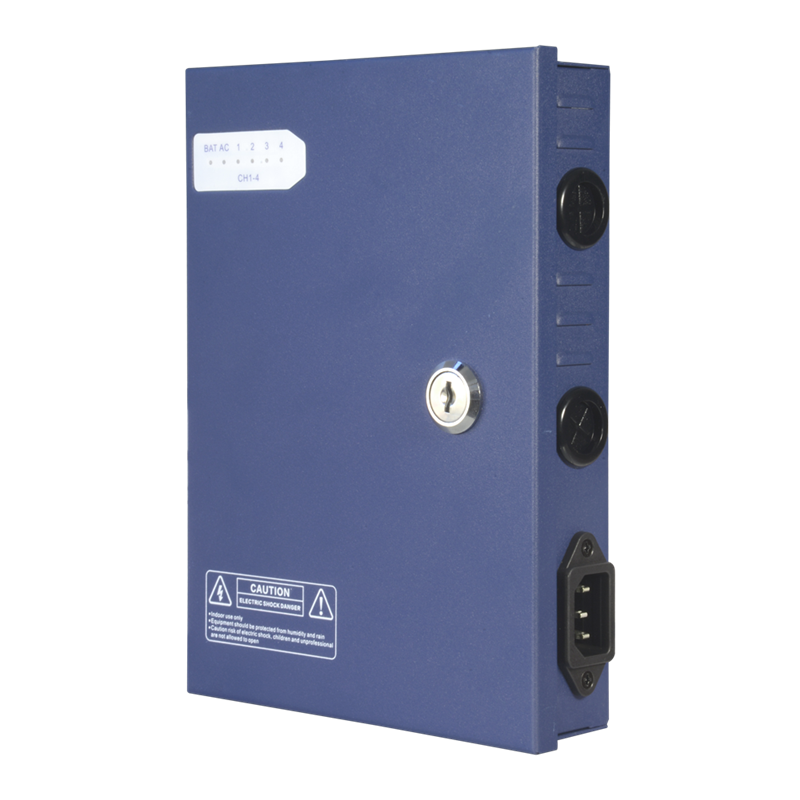

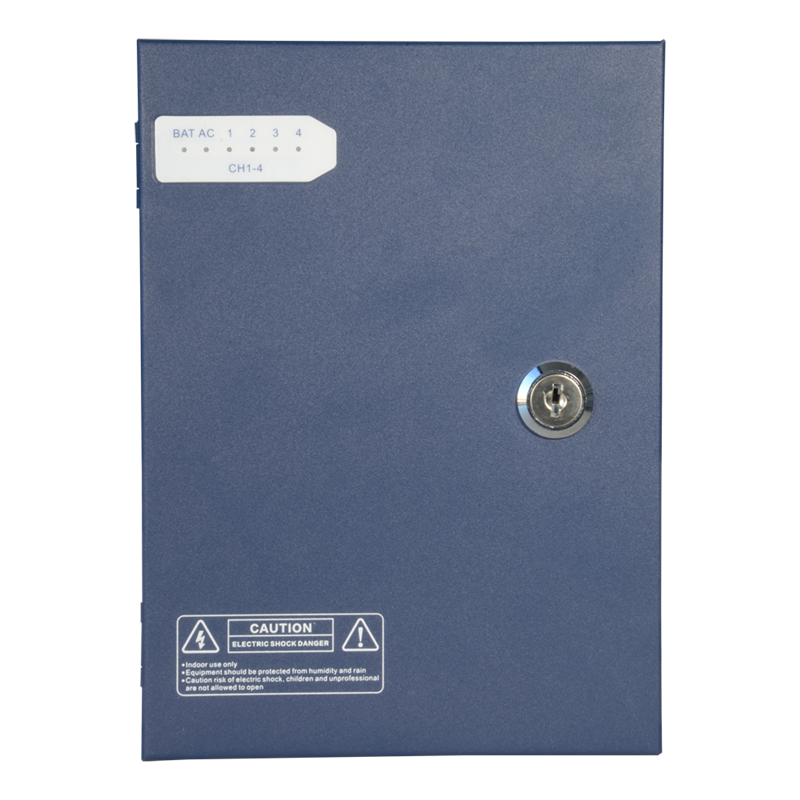

The power supply is housed in a metal case, with insulated cable glands and a key lock for additional protection. The front of the box features an indicator with status LEDs for each output to facilitate both installation and maintenance.

Technical data:

power consumption AC 96 V - 264 V 50/60 Hz
power outputs 4 outputs per copper pair (terminal)
output voltage 12V DC
overall performance 60 W (5 A)
Maximum intensity per output 1250 mA
Protection short circuit / overvoltage / current peaks
Filtered EMI / PFC
Temp. Working Method -20º C ~ +50º C
Dimensions 208 (H) x 152 (W) x 40 (D) mm
UPS function Connections for batteries 7AH-24AH external (battery not included)

Scope of delivery:

  • Power distribution box of 4 outputs 12 V
  • key for security lock
  • replacement fuse 5A
  • installation template
  • 4 bolts and 4 screws for anchoring
  • instructions for use

Details about Professional power distributor for video cameras, 4 ports 12V / 60W

Category Power supplies Brand Visio Reference PD-60-4-SLIM
