Professional power distributor for video cameras, 9 ports 12V/120W

Professional power distribution box. It serves as a central power supply for multiple cameras or other security devices that provide individual protection.

Provides a total power of 120W (10A) evenly distributed across 4 DC 12V outputs with connection per port. The source is powered by a wall outlet (AC 96~264V).

It has several protection systems to ensure proper operation of the system:

• 10A tube fuse for general protection at the source input
• Resettable PTC fuse for each individual output up to 1150 mA
• protection against short circuits
• protection against overvoltage and current peaks

It includes an EMI filter to avoid electromagnetic interference to other equipment or nearby cables. Thanks to the power factor correction (PFC), the electrical costs of reactive power in industrial plants are avoided. Low noise output for clean and stable operation of the connected equipment. The output voltage is fixed in DC 12 V.

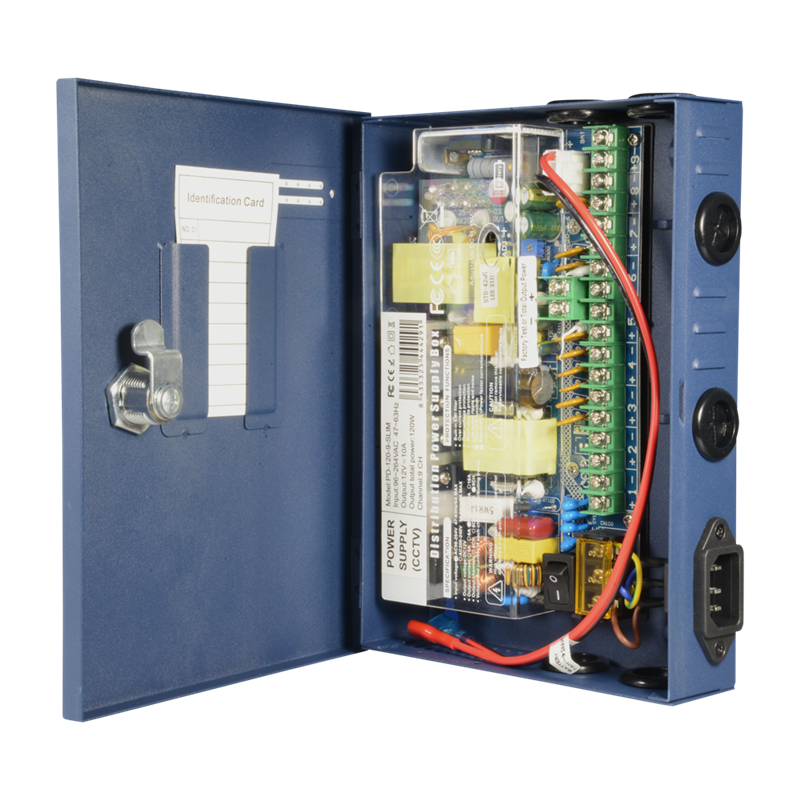

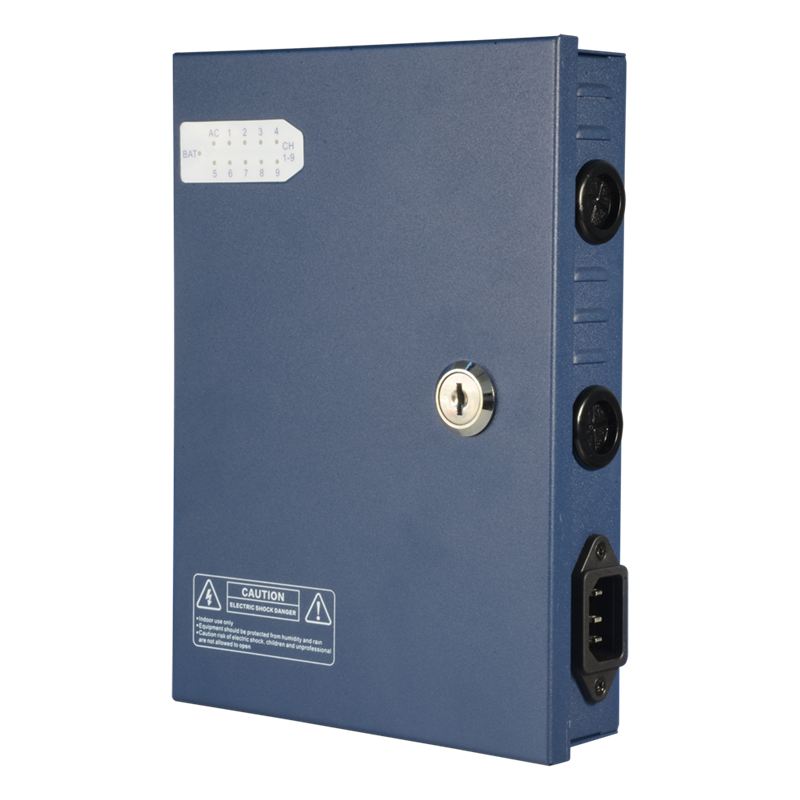

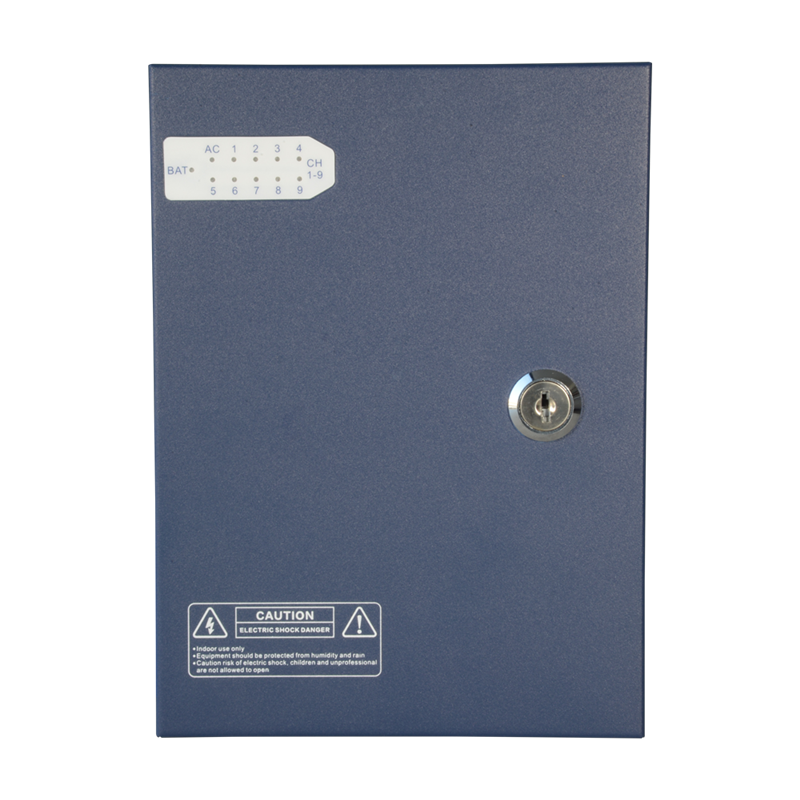

The power supply is housed in a metal case, with insulated cable glands and a key lock for additional protection. The front of the box features an indicator with status LEDs for each output to facilitate both installation and maintenance.
