LED track spotlight ? 3-circuit | Synergy 21

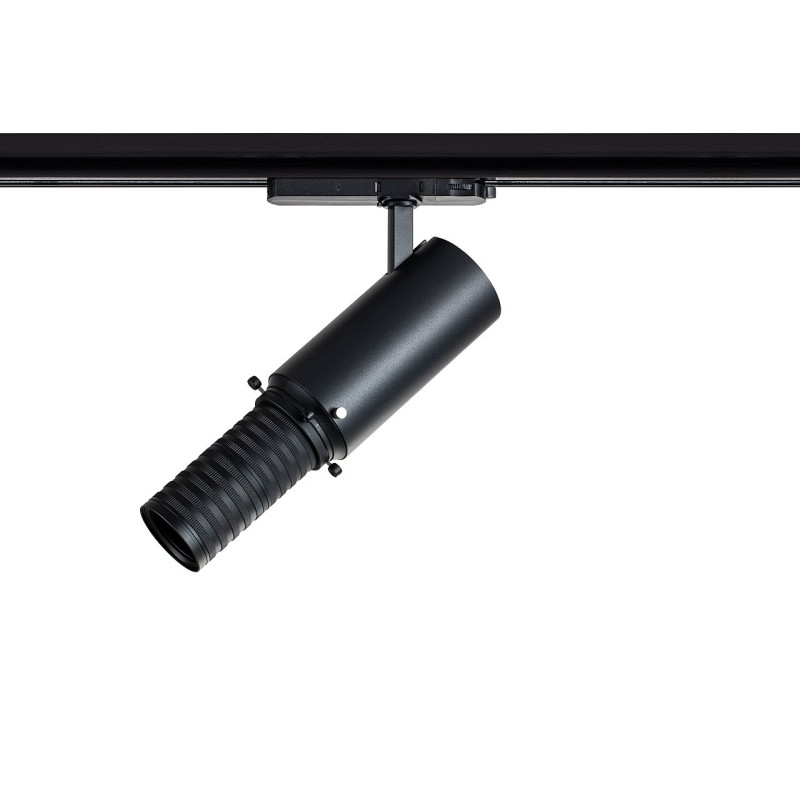

LED profile spotlight for 4-wire track - zoomable & mouldable light

This LED profile spotlight enables precise light projection with sharply defined edges. The integrated zoom and focus system allows the light cone to be precisely adjusted and optimally aligned to the desired object.

Four integrated diaphragm sliders allow the light field to be shaped precisely. This allows the light to be precisely limited - for example for pictures, exhibits or product presentations. Rectangular, trapezoidal or customised light areas can be easily adjusted, effectively reducing unwanted stray light.

The high-quality CITIZEN COB LED ensures uniform and true-colour lighting with CRI90. The adjustable beam angle enables flexible adaptation to different presentation surfaces and distances.

Functions

• Zoomable beam angle
• Precise focussing of the light cone
• Four diaphragm sliders for shaping the light field
• High colour rendering for realistic colour representation
• Suitable for professional track lighting

Areas of application

• Museums and galleries
• Exhibitions and showrooms
• Retail and shop window lighting
• Art and object lighting
• Architectural and presentation lighting

Technical specifications

• Power: 30 W
• Light source: CITIZEN COB LED
• Luminous efficacy: 100-110 lm/W
• Colour temperature: 2700K - 6000K (selectable on the adapter)
• Beam angle: 15°-25° or 20°-36° (zoom)
• Colour rendering: CRI = 90
• Input voltage: AC230V / 50 Hz
• Connection: European 4-wire track
• Housing material: Aluminium
• Housing colour: Black
• Dimensions: Ø80 × 300 mm
• Service life: up to 50,000 hours
• Certification: CE, RoHS
