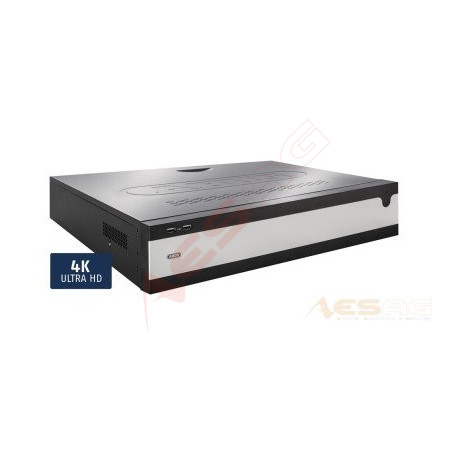

ABUS 16 channel PoE network video recorder (NVR)

Fast. Flexible. Enduring.
This ABUS network video recorder (NVR) records video streams from 16 cameras at a total of up to 160 Mbit/s. It supports 4 internal hard drives and resolutions of up to 3840 x 2160 px (4K-Ready via HDMI output). Like all ABUS IP video recorders, the NVR10030 can be flexibly and scalably integrated into new and existing projects.

Simple and clever.
Even setting up the cameras in the recorder is a breeze thanks to the intuitive installation wizard. In addition, there is the perfect interaction between this NVR and, for example, the ABUS IP cameras from the Advanced Line, which contain intelligent alarm functions (Video Content Analysis, VCA for short). In addition, the recorder itself offers various alarm options: It sends images by email, controls a Central Monitoring Station software (CMS) with messages, or switches on sirens and lights.

Everytime and everywhere.
Responding to different scenarios is very easy with this NVR. The recorder is easy to control, no matter when and how - both via a local monitor and worldwide via remote access via app, ABUS CMS software or internet browser.

Cheap.
Thanks to integrated embedded technology, the NVR is virtually maintenance-free. Maintenance costs and effort as well as investments in software licenses are eliminated.

Product features

• Fast recording: Stream videos with up to 416 MBit/s data throughput (160 MBit/s in / 256 MBit/s out)
• Flexible use: integrate up to 16 cameras
• Continuous recording: save on up to 4 hard drives
• Details detected: Resolutions up to 3840 x 2160px (4K-Ready) supported by HDMI output
• Cleverly executed: intelligent recording and alarm thanks to the perfect interaction of recorder and cameras with VCA functions
• Easy to use: control via local monitor, integrated web server, app or ABUS CMS software

Technical data:

• Article number: NVR10030P
• EAN No.: 4043158166637
• Packaging dimensions LxWxH: 215x565x585 mm
• Alarm inputs (NO/NC): 16
• Alarm: Acoustic warning signal, OSD signal, email, CMS, alarm output
• Views: 1 / 4 / 6 / 8 / 9 / 16
• Number of users: 31
• Number of HDDs: 4
• Number of channels: 16
• Audio: Line In: 1 x Cinch (2.0 V ss, 1000 Ohm) – for network transmission only, Audio Out: 2 x Cinch (600 Ohm)
• Resolution recording @ frame rate per camera: 12 MPx, 8 MPx, 6 MPx, 5 MPx, 4 MPx, 3 MPx, 2 MPx, 1080p, 720p, VGA @ 25 fps
• Resolution HDMI output: 4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60 Hz, 1024x768/60 Hz
• Resolution VGA output: 1920x1080p/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Recording modes: Manual, Schedule, Motion Detection, Alarm Input, VCA
• Recording time at 1080p @ 2 Mbps: 74 hours/TB
• Recording time at 6 MPx @ 8 Mbit/s: 18 hours/TB
• User levels: 3
• Width: 450mm
• Data backup: 2 x USB 2.0, 1 x USB 3.0
• Total frame rate (PAL): 400 fps
• Simultaneous network access: 128 camera connections
• Hardware Watchdog: Yes
• Height: 95mm
• Power consumption: 20 W
• Power consumption including HDD: 80 W
• Loi Sarkozy compliant (only valid for FR): Yes
• Length: 440mm
• Max. operating temperature: 55 °C
• Max. humidity: 90%
• Min. operating temperature: -10 °C
• Mobile access: ABUS Link Station Lite / Pro (Apple iOS & Android)
• Monitor outputs: 1 x VGA, 1 x HDMI
• Multi-monitor function: Yes
• Net weight: 1 kg
• Total network throughput (input/output): 416 Mbit/s (160 MBits/256 MBits)
• Network connection: 16 x RJ45 PoE (IEEE 802.3 af/at) + 2 x RJ45 10/100/1000 Mbps
• Network functions: Live view, playback, data export, settings
• Network cameras: ABUS network cameras, 3rd party (abus.com), RTSP
• PTZ control: via network, RS-485 interface, keyboard interface
• PoE Standard: IEEE 802.3af/at
• RAID: No
• RS-485 interface: Yes
• Relay output: 4 (load capacity: 12 V DC/1 A)
• Software: ABUS CMS Software, Integrated Web Server
• Power supply AC: 100 – 240 V
• Storage medium: 4 x SATA HDD (up to 10 TB per HDD)
• OSD language: German, English, French, Dutch, Danish
• Control: USB mouse
• Search modes: Event, Date & Time, Smart Search, VCA
• Technology: IP
• Video channels analog: 0
• Total video channels: 16
• Video channels HD-SDI: 0
• Video channels HD-TVI: 0
• Video channels IP: 16
• Video compression: MPEG-4, H.264, H.265 (including Dynamic GOP)

Scope of delivery:

• 1x ABUS 16 channel PoE network video recorder (NVR)
• 1x USB wireless mouse
• 4x SATA cables
• 1x Quick guide
• 1x mounting material
