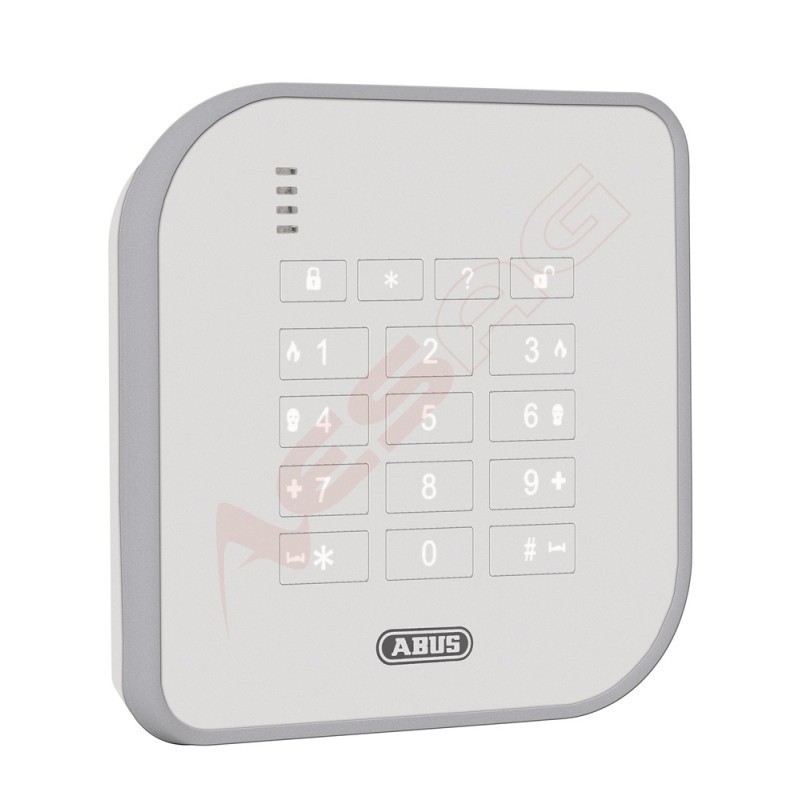

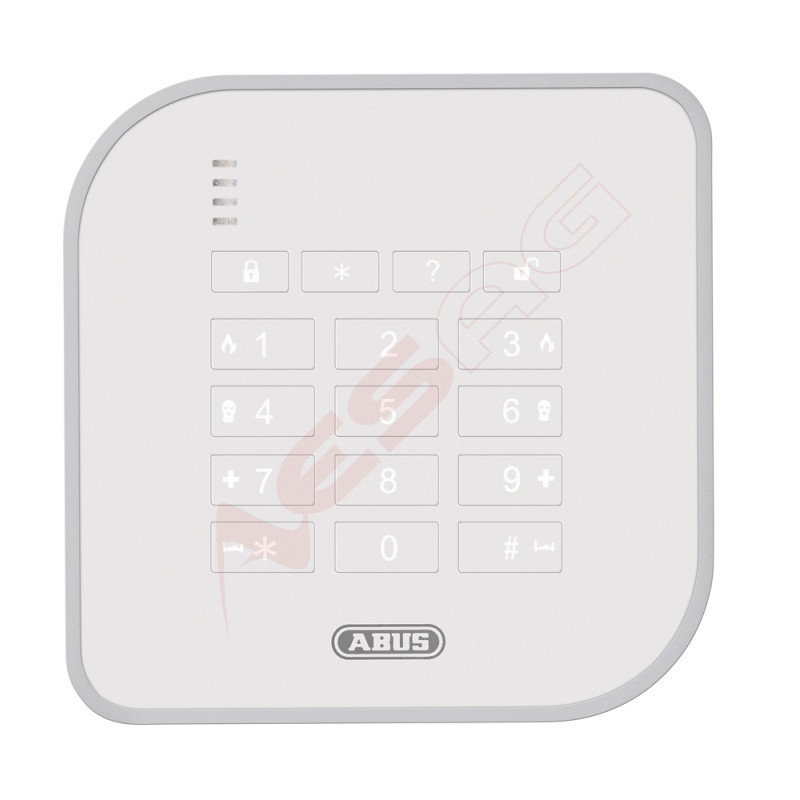

Secvest wireless control unit
The Secvest wireless control unit is an optional accessory for the Secvest. You can operate your system from any wireless control unit using a PIN code. Activation and deactivation using a proximity key is also possible.
Secvest wireless control unit
*** Occasion ***
Used control unit - good condition - new batteries included. No packaging.
Flexible use in entrance areas
Up to 8 control units can be integrated into the alarm system. Installed in different parts of your building, these expansion modules provide additional convenience. The Secvest can be activated or deactivated directly on the wireless control unit without having to travel to the alarm center every time.
In addition to the internal activation or the activation of individual sub-areas, you can also switch an output as desired, e.g. the garage door.
Product features:
- To activate/deactivate the control panel
- Integrated proximity chip key reader
- Switching outputs possible
- Power supply via battery and external (13.8 V)
- LEDs to display the current status
Technical data:
| Item No.: | FUBE50000 |
| Dimensions: | (WxHxD) 120x120x30 mm |
| Battery type: | 3 x AA (1.5V alkaline) |
| Width: | 120mm |
| Radio frequency: | 868MHz |
| Radio performance: | 10 |
| Housing material: | SECTION |
| Height: | 120mm |
| Length: | 30mm |
| Max. battery life: | 2 years) |
| Max. operating temperature: | 55°C |
| Max. humidity: | 94% |
| Max. receiving range (open field): | 100m |
| Max. receiving range (building): | 30m |
| Max. transmission range (open field): | 100m |
| Max. transmission range (building): | 30m |
| Min. operating temperature: | -10°C |
| Modulation: | FM FM / AM |
| Installation location: | inner space |
| Net weight: | 0.176kg |
| Sabotage monitoring: | Yes |
| Security level: | 2 |
| Voltage monitoring: | Yes |
| AC power supply: | 9-12V |
| DC power supply: | 9-15V |
| Status display: | 4 status LEDs for the sub-areas |
| Power consumption: | 100mA |
| Environmental class: | II |
