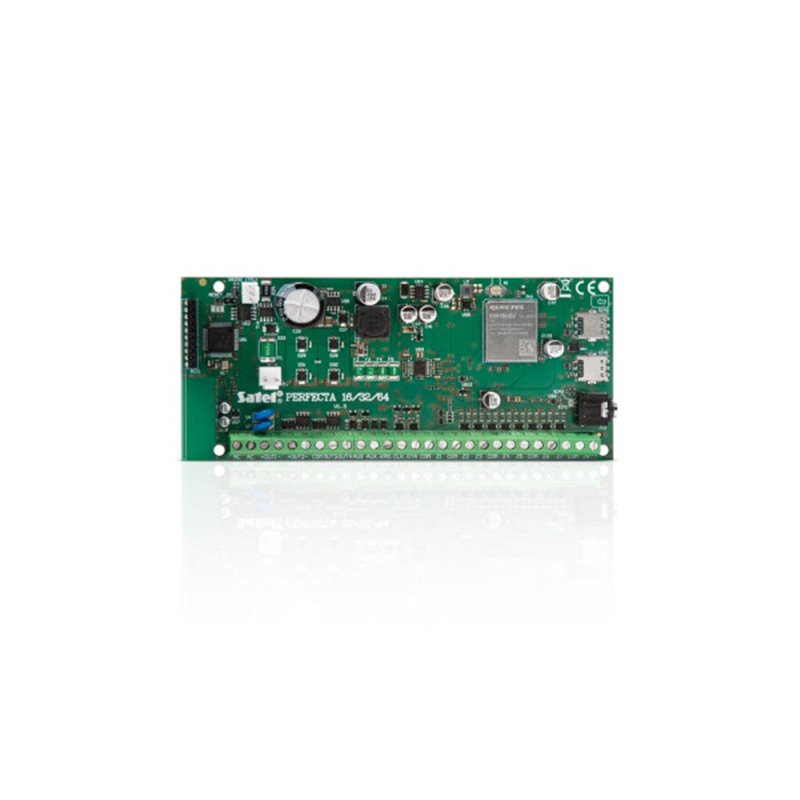

Satel PERFECTA 64 M main board alarm control panel

Satel PERFECTA 64 M main board alarm control panel, from 8 to 64 lines, up to 64 outputs

The PERFECTA 64 M alarm control panel is designed to protect objects such as apartments, single-family houses, individual apartments in terraced houses, offices, etc. It complies with the requirements of the EN 50131 Grade 2 standard. The control panels are characterized by simple configuration and simple and intuitive operation via control panels. The alarm system functions can also be controlled remotely using the mobile PERFECTA CONTROL app and the handheld transmitter.

The PERFECTA 64 M control panel allows you to create a wired or wireless installation - one of the ABAX 2 system wireless controllers (ACU-220 or ACU-280 operating in the 868 MHz frequency band) or PERFECTA-RF, i.e. the MICRA radio system module (433 MHz frequency band) can be connected to the control panel. Alternatively, the INT-RX-S keyfobs expansion module can be connected to the control panel.

The PERFECTA 64 M control panel is equipped with an LTE module that operates in 2G and 4G mobile networks. It enables operation with a mobile application (with support for PUSH messages), remote configuration of the system using the PERFECTA Soft program, event transmission (e.g. to the security service control center), voice notification, control via SMS and audio verification (listening to the sounds from the protected building). The control panel supports two Nano SIM cards to ensure continuity of communication. If there are problems with the network coverage of the first network operator, the second card is automatically selected.

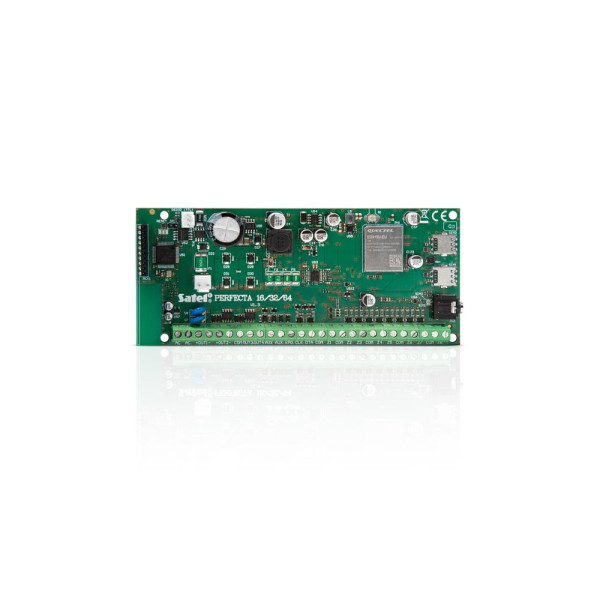

The control panel's electronic board is equipped with 8 wired detection zones and 4 wired outputs. The number of these can be increased by connecting expansion modules: INT-E zone expansion module and INT-O or INT-ORS output expansion module. This allows the system to be expanded by adding more detectors, signaling devices and even actuators (for controlling the garage door, roller shutters, garden sprinklers). The INT-CR zone control module can also be connected to the control panel. It allows you to control selected system functions using access cards and transponder tags.

The system, based on the PERFECTA 64 M control panel, can be divided into four sections, with three arming modes to choose from (day, night, external). The sections can be independent of each other or contain common parts (displayed detection zones).

The system can be configured in two ways: from a computer with the PERFECTA Soft program installed (locally - connection via RS-232 (TTL), remotely - via data transmission in the mobile network*) and using a keypad.

Product features:

• Compliance with EN 50131 Grade 2
• System division into 4 areas:
  • 3 arming modes in each area
  • Possibility of assigning a detection line to 1~4 areas
  • Control by user or by timer
• 8 adjustable wired detection lines on the control panel board:
  • Configuration to choose from: NO, NC, EOL, 2EOL/NO, 2EOL/NC
  • Support for roller shutter and vibration detectors possible
• maximum 64 adjustable detection lines
• 4 adjustable wired outputs on the control panel board:
  • 2 load outputs (for power supply)
  • 2 trigger outputs type OC
• maximum of 64 adjustable outputs (including 4 outputs to support the signal transmitters of the MICRA system)
• built-in modules:
  • 2G/4G cellular communicator with 2 slots for Nano SIM cards (SMS, transmission to the control center, mobile app, PUSH notifications)
  • Voice module (plays voice messages to notify by phone)
  • acoustic alarm verification (listening into the monitored object)
• Data bus for connecting:
  • Control units INT-TSH2, INT-TSG2, INT-KSG2R, PRF-LCD
  • Expansion modules INT-E, INT-O, INT-ORS
  • ABAX 2 radio control modules: ACU-220 or ACU-280
  • Extension module for handheld transmitter INT-RX-S
  • Modules for controlling the INT-CR areas
• Communication port for connecting the module of the MICRA radio system PERFECTA-RF
• Maximum number of supported radio components:
  • of the ABAX 2 radio system: up to 4 control units / up to 48 detectors, signaling devices or other components
  • of the MICRA system: up to 4 control units / up to 64 detectors / up to 4 signaling devices
• Operation with wireless control units:
  • PRF-LCD-A2 - in ABAX 2 system
  • PRF-LCD-WRL - in the MICRA system
• Control panel using:
  • Control panels
  • mobile PERFECTA CONTROL app
  • Handheld transmitter for remote control
  • Access cards and transponder tags
• possible firmware update locally or remotely
• Code:
  • 62 user codes
  • 1 Service code
• Editable names (of users, areas, detection lines, outputs and modules) for easy control and monitoring of the system
• 8 timers with exception options
• 8 thermostats
• Storage of 3584 events
• automatic diagnosis of the main components of the system
• integrated switching power supply:
  • Overload protection
  • Protection against deep discharge of the battery
  • Current control when charging the battery
• Parameterization of the control panel settings:
  • local – control panel or computer with PERFECTA Soft program installed, connected to RS-232 interface (TTL) of the control panel
  • remote access – computer with PERFECTA Soft program installed, connection to the alarm center using data transmission in the mobile network
