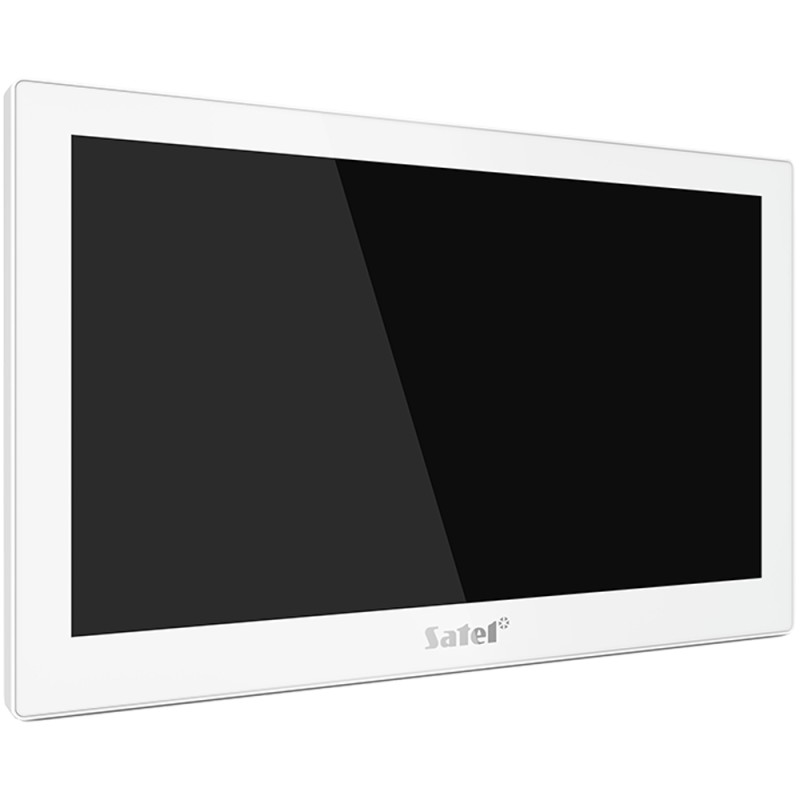

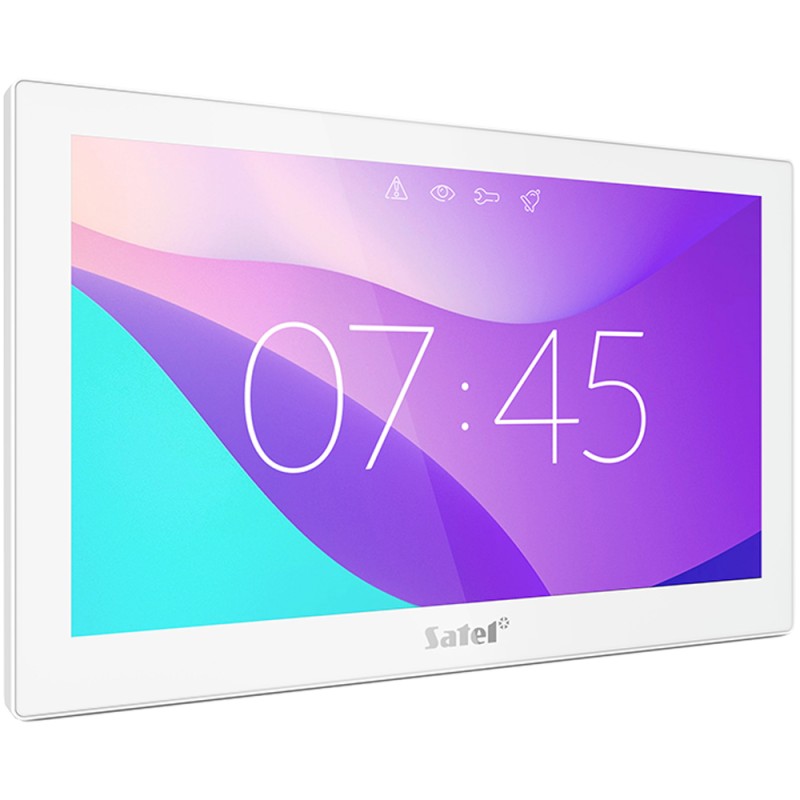

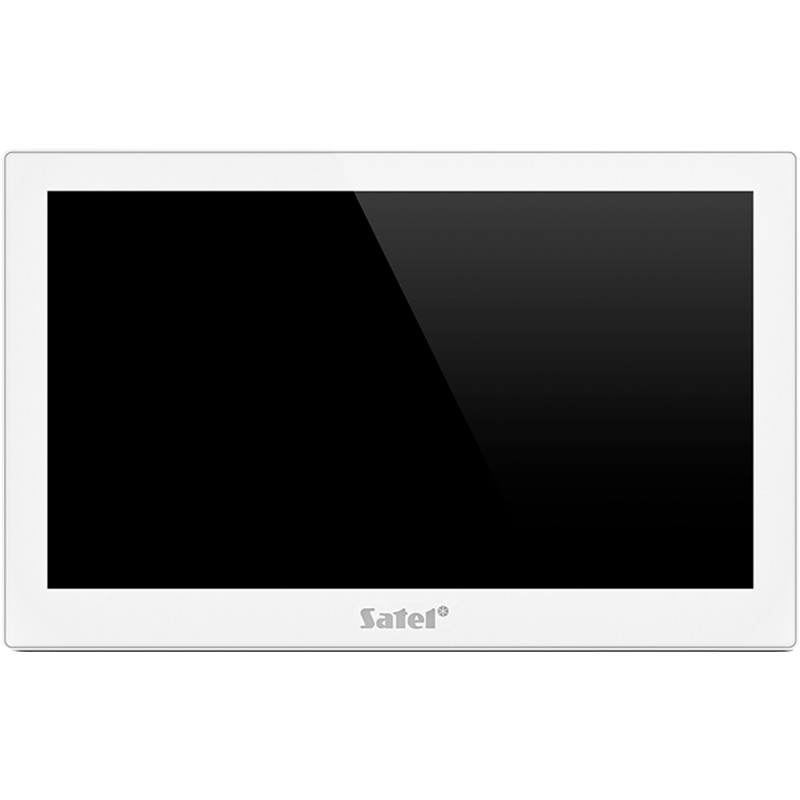

10" touch screen control panel, TFT display, white

Touch screen control panel - maximum control in an elegant design

The INT-TSH210 is a modern 10-inch touch screen control panel for controlling alarm systems and home automation systems. With its slim design, intuitive user interface and high-quality display technology, it offers a smartphone-like user experience. It supports macro commands, configurable widgets, visual object plans and fits perfectly into modern residential and commercial spaces thanks to various designs.

Product features:

• Large, brilliant display: 10" capacitive TFT touch display with 1024 x 600 pixels and 16.7 million colours - high brightness and wide viewing angles.
• Customisable control: Up to 24 configurable user screens, over 20 design themes, widgets and slideshow function.
• Extended operating options: Control of the system via macros, direct access to alarm, fire and help buttons as well as display of system status and object plans.
• Robust and elegant: Slim housing (only 18 mm deep), bonded display without air gap - dust-protected and particularly resistant.
• Flexible integration: Compatible with INTEGRA, VERSA and PERFECTA 64 M control centres, 2 wired inputs (EOL, 2EOL, 3EOL with INTEGRA Plus), loudspeaker and microSD card slot.

Technical features:

• Display: 10" TFT, 1024 x 600 pixels, 24 bpp
• Power supply: 12V DC ±15 %
• Power consumption: 300 mA (idle), max. 415 mA
• Memory cards: MicroSD, MicroSDHC
• Environmental class: EN 50130-5 Class II
• Operating temperature: -10 to 55 °C
• Humidity: max. 93 % (non-condensing)
• Dimensions: 251 x 157 x 18 mm
• Scope of delivery: Incl. mounting bracket

A powerful touch control panel with versatile functions - perfect for stylish interiors with the highest standards of operating convenience and design.
