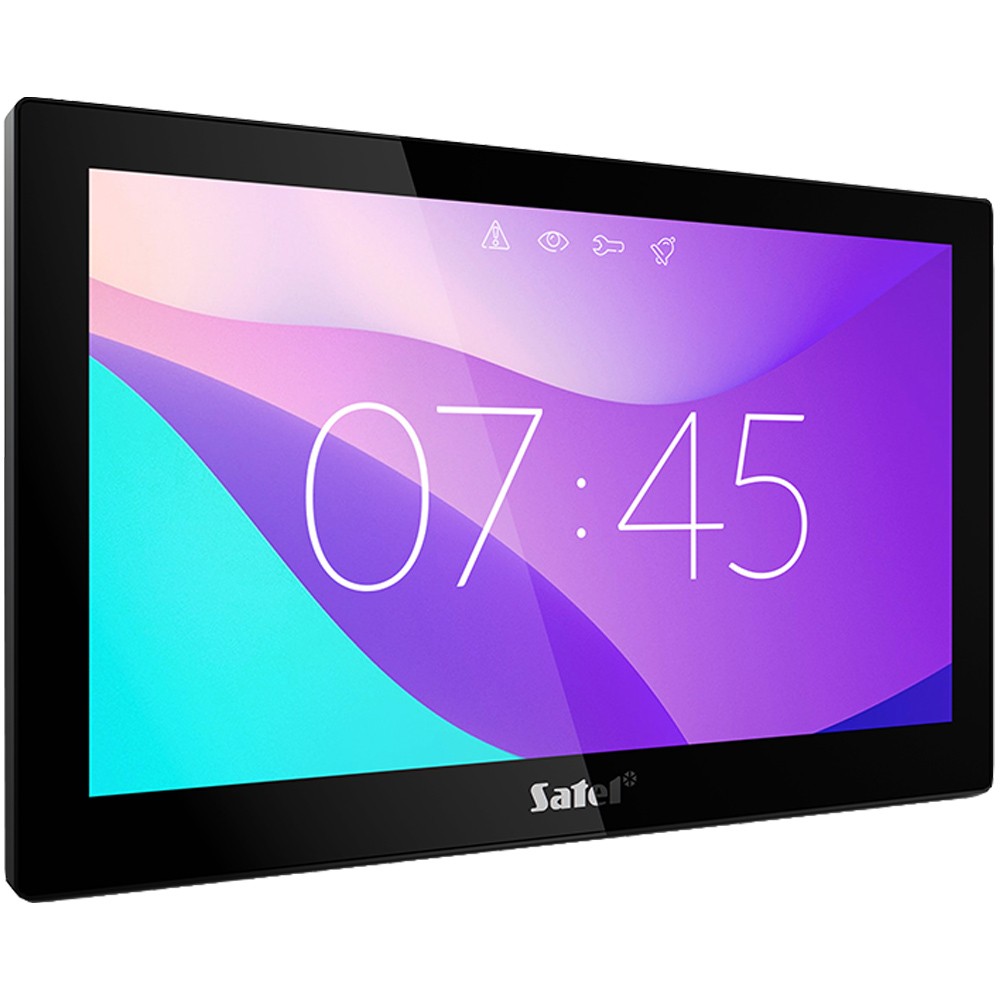

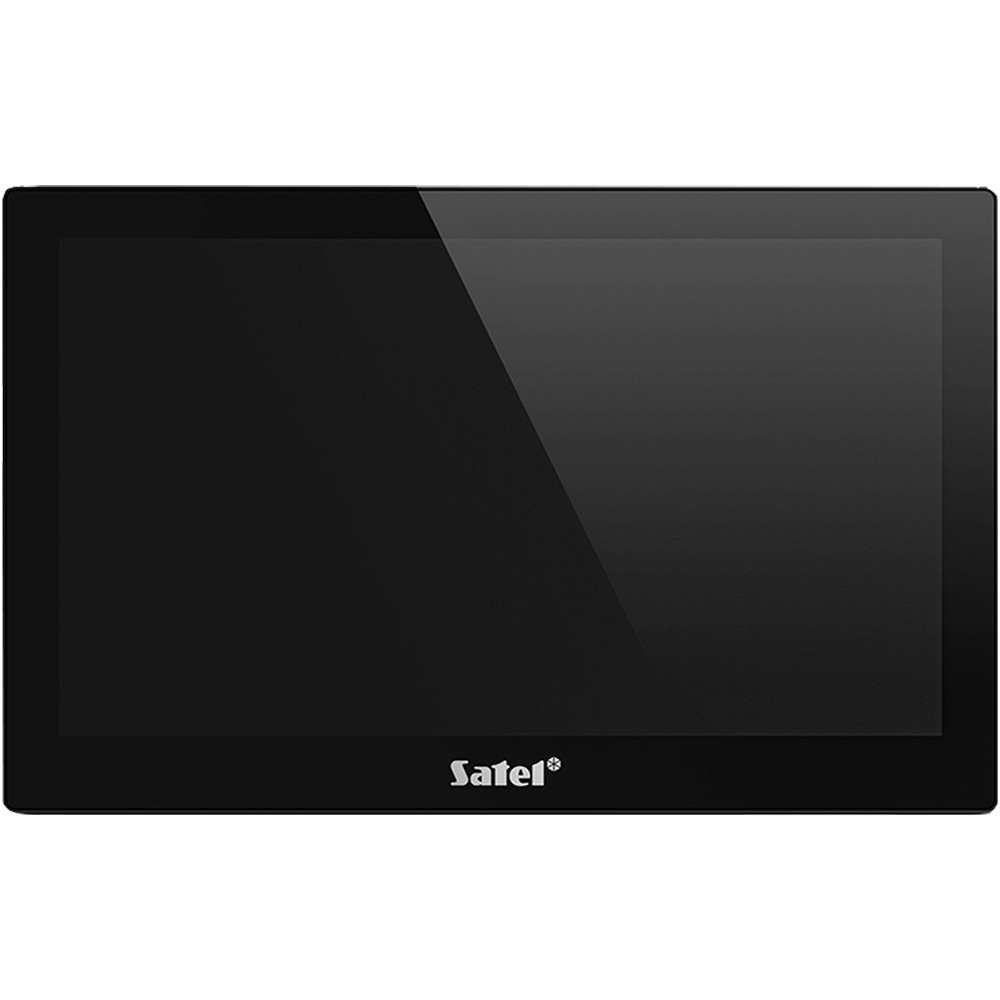

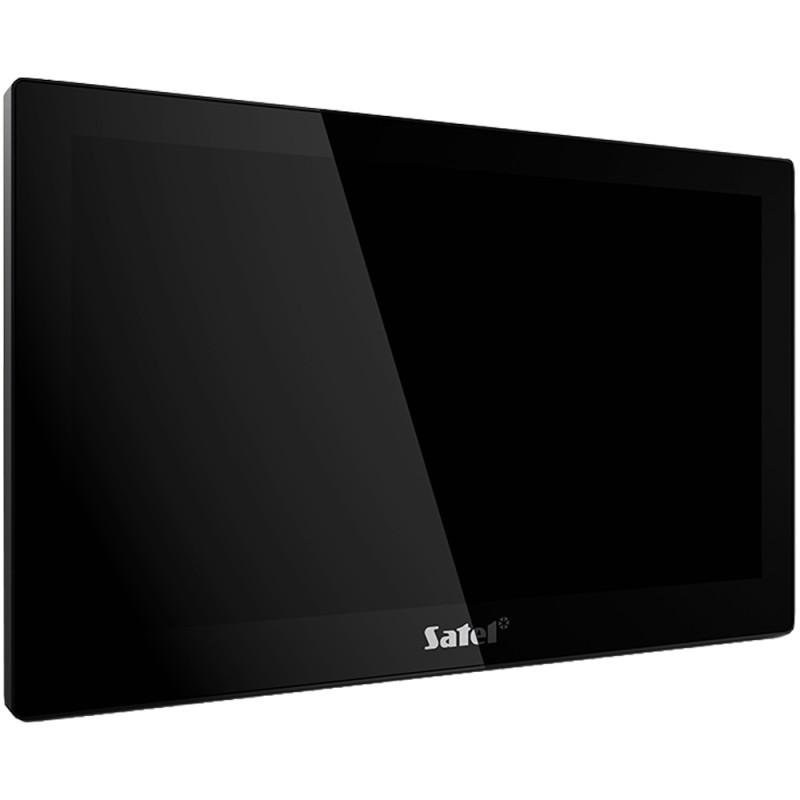

10" touch screen control panel, TFT display, black

Touch screen control panel - intuitive control meets elegant design

The INT-TSH210 is a modern 10-inch touch control panel for convenient control of alarm and automation systems. With its slim design, high-quality display and customisable user interface, it offers a smartphone-level user experience. Functions such as macro commands, widgets and visualisable object plans ensure flexible and user-friendly application in both private and commercial environments.

Product features:

• Brilliant 10-inch display: Capacitive TFT touch display with 1024 x 600 pixels, 16.7 million colours and wide viewing angle stability.
• Individual user interface: Up to 24 customisable screens with over 20 graphic themes, slide show function and configurable screen saver.
• Advanced system control: Alarm functions via macro command, quick access to PANIC, FIRE and HELP alarms and display of system status and object plans.
• High-quality workmanship: Dust-protected, bonded display without air gap for improved legibility and durability - housing depth only 18 mm.
• Versatile integration: Compatible with control panels from the INTEGRA, VERSA and PERFECTA 64 M series - including 2 wired inputs (EOL, 2EOL, 3EOL with INTEGRA Plus), loudspeaker and microSD card slot.

Technical features:

• Display: 10" TFT, 1024 x 600 pixels, 24 bpp
• Power supply: 12V DC ±15 %
• Power consumption: 300 mA (idle mode), max. 415 mA
• Storage media: MicroSD, MicroSDHC
• Environmental class: EN 50130-5 Class II
• Operating temperature: -10 to 55 °C
• Humidity: up to 93 % (non-condensing)
• Dimensions: 251 x 157 x 18 mm
• Scope of delivery: Incl. mounting bracket


A sophisticated touch control panel that ideally combines design, functionality and user-friendliness - perfect for modern interiors with the highest demands.
