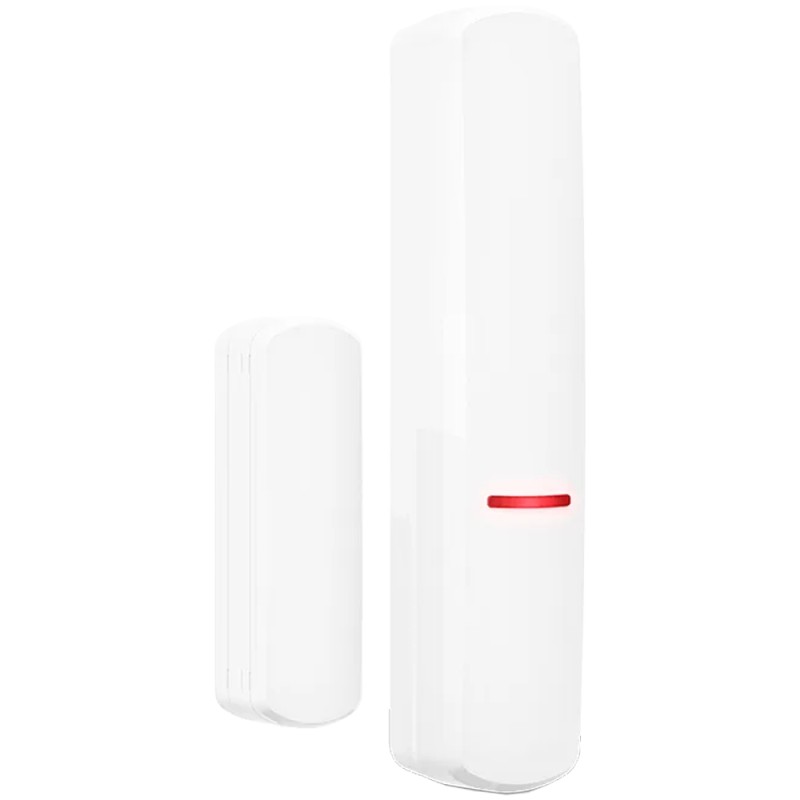

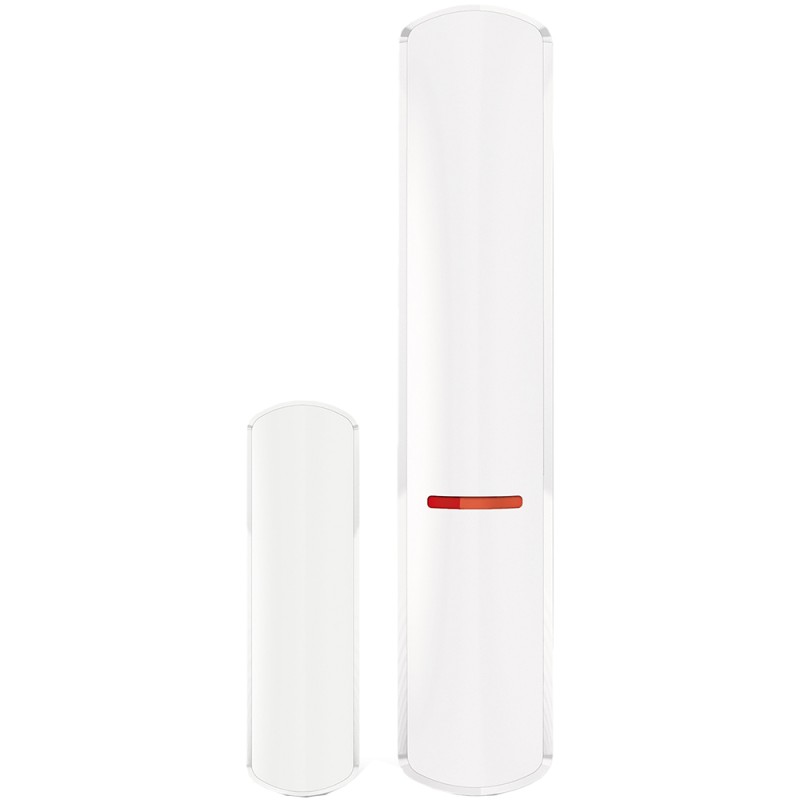

BeWave wireless magnetic contact, 868 - 868.6 MHz, integrated LED, grade 2, white

Article Nr AXD-200 LiteEAN 5905033339064
Secure radio connection: 868 MHz with AES-encrypted, bidirectional communication and automatic channel selection (4 channels) Long-life battery operation: Up to 3 years of battery life with CR123A (3 V), ECO mode reduces consumption to just 16 μASecurity standard: EN 50131 grade 2 certified, tamper protection against housing opening and tearing off
55.75
Tax included
Item in Stock
Stock 16 Items
Add to Cart

BeWave wireless magnetic contact, 868 - 868.6 MHz, integrated LED, grade 2, white

Secure, compact, reliable

Compact magnetic contact for wireless monitoring of windows and doors indoors. The sensor uses encrypted radio transmission in the 868 MHz band and offers maximum reliability thanks to bidirectional communication, tamper protection and remote maintenance options.

Product features:

  • High transmission security with intelligent channel selection: AES-encrypted radio with automatic selection of the optimum channel for interference-free communication.
  • Convenient remote maintenance: Parameterisation and firmware updates are carried out conveniently via radio - without physical access.
  • Flexible mounting options: Magnet included in the set for surface and flush mounting, incl. self-adhesive bracket.
  • Tamper protection and system monitoring: LED status display, tamper protection when the housing is opened and reliable battery monitoring.

Technical features:

Radio frequency: 868.0 - 868.6 MHz
Range (free field): up to 1300 m
Battery: CR123A, 3 V
Battery life: up to 3 years
Power consumption: 48 μA (ECO mode: 16 μA)
Temperature range: -10 °C to +55 °C
Dimensions (sensor): 20 × 102 × 23 mm
Dimensions (magnet assembly): 15 × 52 × 6 mm
Dimensions (magnet installation): Ø10 × 28 mm
Approval: EN 50131 grade 2, environmental class II

Details about BeWave wireless magnetic contact, 868 - 868.6 MHz, integrated LED, grade 2, white

TYPE OF EQUIPMENT Magnetkontakt
Connection Funk
Serie BeWave
Category SatelBrand SatelReference AXD-200 LiteEAN13 5905033339064In stock 16 ItemsDelivery Time Delivery within 24 hoursCondition New
