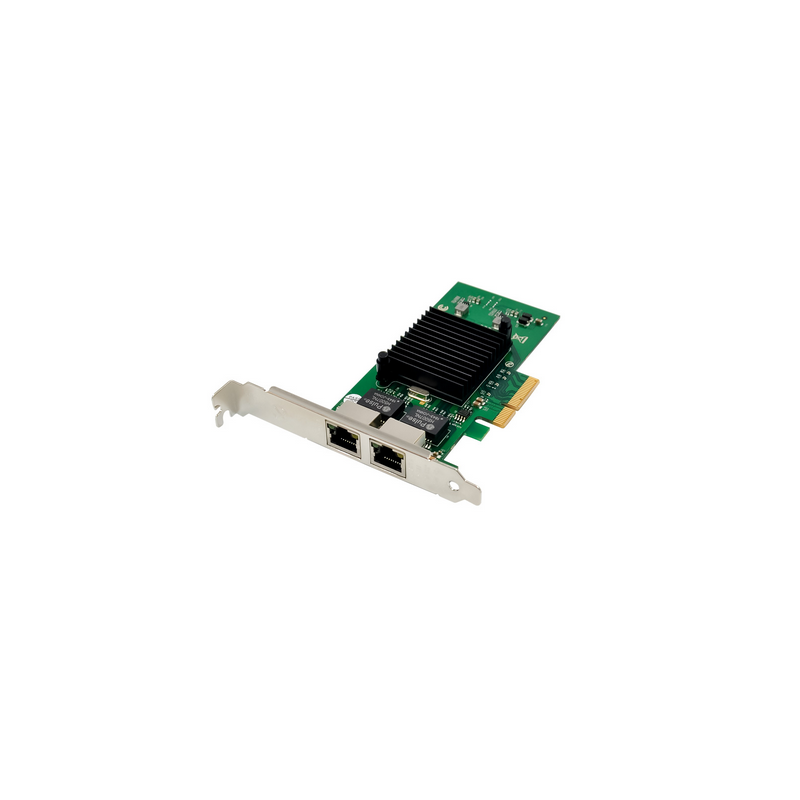

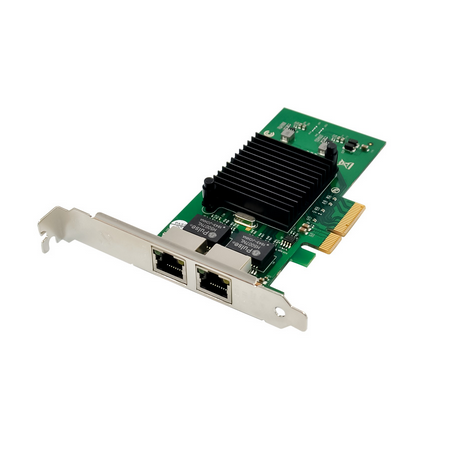

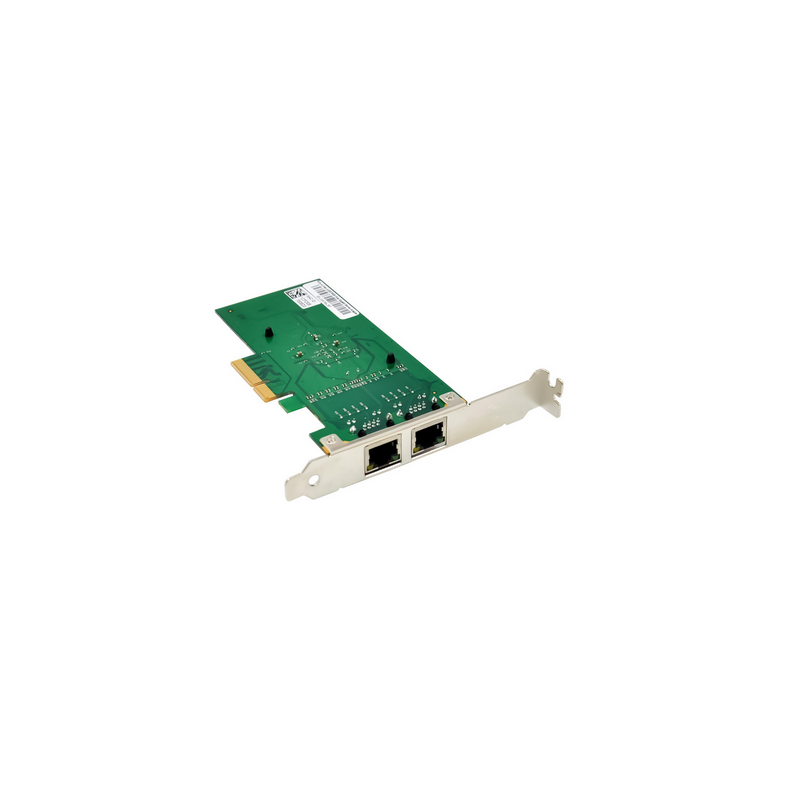

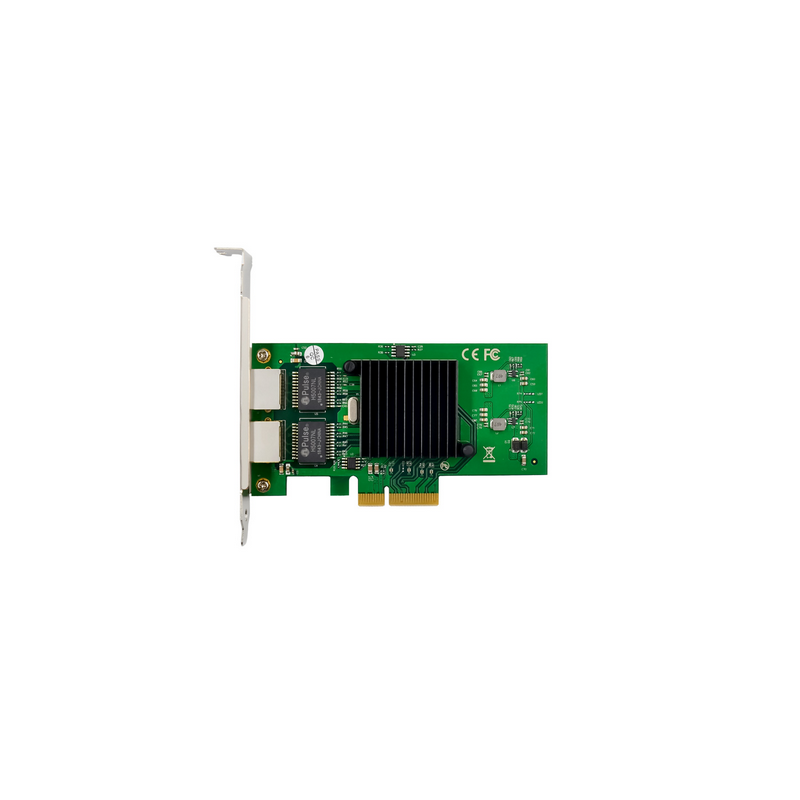

ALLNET PCIe 1G X4 Dual Port Gigabit Server Adapter- Copper RJ45 - ALL0133v2-2-GB-TX
ALLNET PCIe 1G X4 Dual Port Gigabit Server Adapter- Copper RJ45 - ALL0133v2-2-GB-TX
Hightlights:
- Chipset: Intel JL82576EB
- PCIExpress host interface specification v2.0 with 2.5GT/s BUS width
- PCIExpress lanes: x4
- MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASET, 100BASETX, and 10BASET applications (802.3, 802.3u, and 802.3ab)
- SerializerDeserializer (SERDES) to support 1000BaseSX/X/LX (optical fibre) for Gigabit backplane applications.
- Layer 2 functions: IEEE 802.3x Flow Control IEEE 802.1q VLAN
- Supports Receiveside scaling (RSS)
- Supports IPv 4, IPv 6 protocols
- Supports Jumbo Frames up to 9.5K
- Supports UDP.TCP and IP Checksum offloading
- Statistics for management and RMON
- Support for virtual machines device queues
- Queues per port: 16 TX queues and 16 RX queues FullSpectrum Security
- Next generation VMDq support (8VMs)
- Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
The PCIe* v2.0 (2.5GT/s) Intel 82576 GbE Network adapter is a single, compact, low power component that offers two fully integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.
The 82576 enables two port implementation in a relatively small area and can be used for server system configurations such as rack mounted or pedestal servers, where the 82576 can be used as addon NIC or LAN on Motherboard (LOM) design.
Another system configuration is blade servers, where it can be used as LOM. The 82576 can also be used in embedded applications such as switch addon cards and network appliances.
Technical Details:
Essentials | |
Product Collection | Intel GbE Ethernet Server Adapter |
Controller Processors | Intel JL82576EB |
Bus Type/Bus Width | PCI Express* 2.0 (2.5 GT/s) x4-lane, operable in x4, x8 and x16 slot |
Connections | 2 x RJ45 Copper |
Data Rate Supported | 10/100/1000 Mbps (Copper) |
Cable Distances | Copper: up to 100 m Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation |
| Bracket | Full-height bracket installed. Low-profile bracket included in package |
| Dimension | 113 mm x 69 mm (PCIe board) |
| Technical Specifications | |
IEEE standard/Network topology | MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab) |
| Interrupt levels | INTA, INTB, INTC, INTD, MSI, MSI-X |
| System Requirements | |
| Windows client | Windows 10/ 8.1/ 8/ 7 |
Windows Server | 2008 R2/ 2012/ 2012 R2/ 2016/ 2019 |
Linux | RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 |
Environment & Certification | |
Storage Humidity Maximum | 90% non-condensing relative humidity at 35 °C |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
Connect Speed LED Indicators | Not illuminated=10 Mb/s green=100 Mb/s amber=1 Gb/s (Copper) |
| Marks | CE FCC RoHS |
