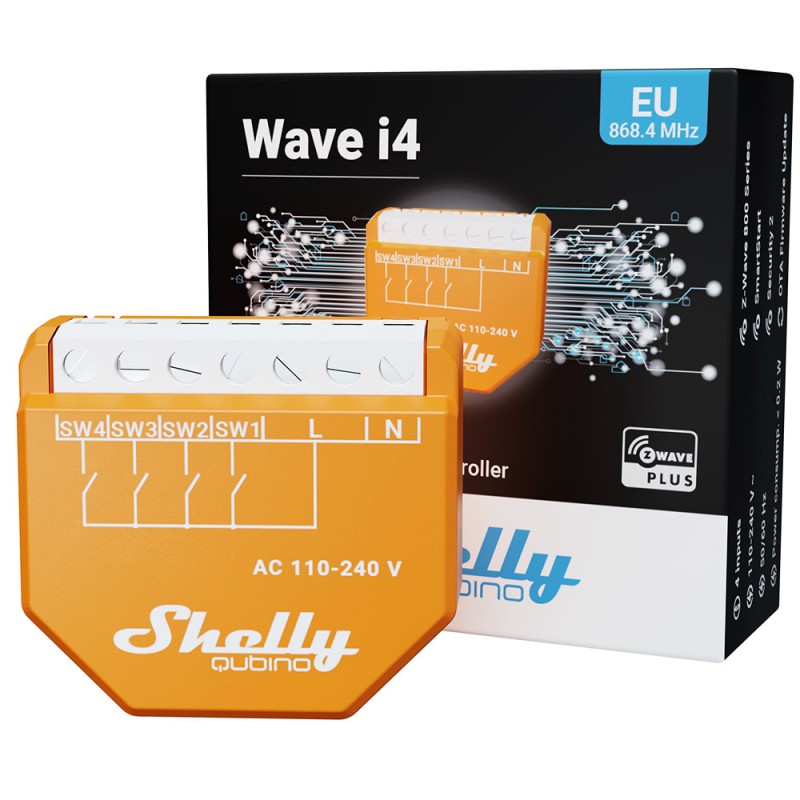

Shelly · Flush-mounted · "Wave i4" · Scene activator · 12 actions · Z-Wave
Shelly · Flush-mounted · "Wave i4" · Scene activator · 12 actions · Z-Wave
Z-Wave™ controller with 4 digital inputs for improved action control
Manually activate or deactivate each created scene, execute synchronized actions or run complex trigger scenarios.
- Wave i4 is an input reader ( it does not contain relays ).
- Control other Z-Wave devices manually (e.g. with a multi-button switch).
- Multiclick – activation of up to 12 actions
- Extremely low power consumption: < 0.2 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries).
- Latest technology: Z-Wave 800 series
- Automatic setup with SmartStart
- Security 2 Authenticated for highest security
- Over-the-air firmware updates
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
A gateway (smart hub) is not included in delivery. A gateway (smart hub) is required to configure the device.
WHY WAVE i4?
Replace one of the switches in your room and control all other installed Z-Wave devices!

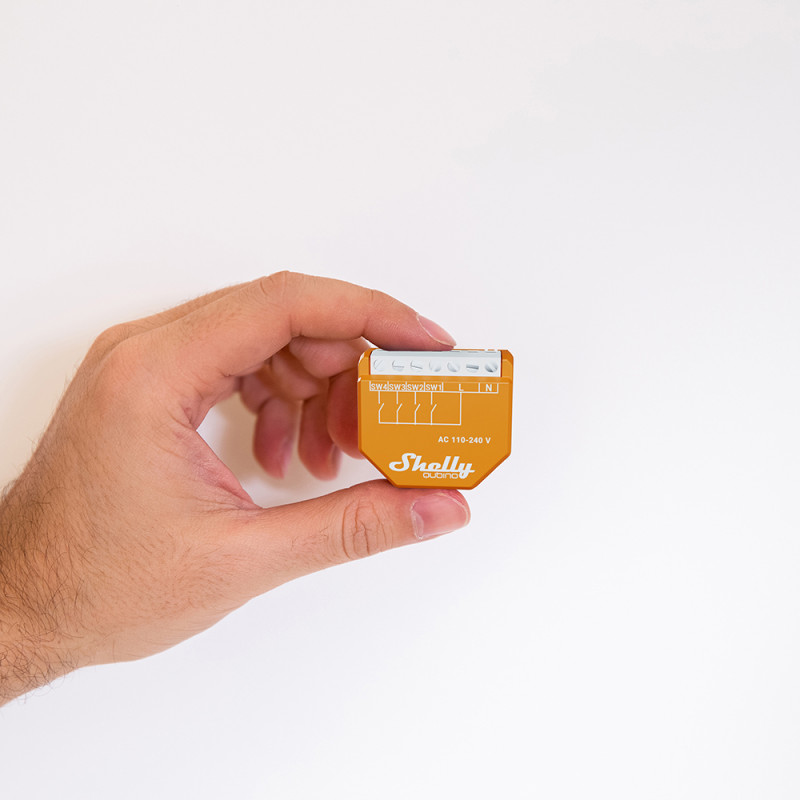

Wave i4 allows you to manually activate or deactivate any created scene, run synchronized actions or execute complex trigger scenarios. It allows you to control other Z-Wave devices in your network with the touch of a button. The retrofit design makes it small enough to fit behind any wall switch. Wave i4 can display the status and control the action of four inputs, providing maximum convenience by allowing all family members to manually control your smart home.
INTRODUCTION TO Z-WAVE
Shelly Qubino works on Z-Wave
By using Z-Wave, smart home products can communicate seamlessly with each other thanks to a central smart hub, regardless of their brand or platform! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.
There are certain requirements for Z-Wave devices to function properly, such as the need to use a supported Z-Wave hub.
For more information, visit the official Z-Wave website: www.z-wave.com
Works with any Z-Wave gateway
Wave i4 is retrofittable and designed to fit behind switches/buttons. After installation, integrate the device into your Z-Wave network (Z-Wave gateway is required) and control it via your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways .
Functionalities
Z-Wave operated
Integrate Wave i4 into your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.
Up to 12 possible actions. Control the lights, close the blinds and turn off sockets. Manually control each Z-Wave device in your network and execute the desired scenes.
Wave i4 can operate on 110–240 V AC.
Set up direct communication between devices in your local Z-Wave network and define actions without the need for a hub! Configure up to 8 assignments on the switch buttons and trigger them manually.
Set up custom scenes by combining Wave i4 with other Z-Wave devices (gateway required).
Endless applications
Support multiple actions
With a simple button press, you can activate up to 12 scenes or actions from other Z-Wave devices in your network. Wave i4 supports up to 3 different automation actions per button, making quick manual control of a group of devices extremely convenient.
Install Wave i4 wherever it's most convenient for you and set up buttons to simultaneously control lights, blinds, and other devices in specific rooms or throughout the building.
Scene activation:
1 click
Turn off multimedia devices
2 clicks
Close blinds
1 long click (hold).
Turn the light in the hallway on/off
Trigger up to 8 actions without a gateway!
Wave i4 allows you to establish direct communication between your Z-Wave devices and set different associations without the need for a hub!* By supporting 2 associations per button, Wave i4 allows you to trigger and execute up to 8 actions, allowing you to seamlessly control multiple Z-Wave devices. Wave devices with a simple press of a button.
Examples:
1 click (for basic commands).
Turn lights on/off
1 long click (hold) (for multi-step commands).
Dim the lights or open/close blinds
Gateway/Hub is required to configure the device.
Ultimate comfort
One of the most frustrating things is when you realize you forgot to turn off the living room lights before going to bed. Especially when your phone is nowhere nearby. But there's no need to worry! Wave i4 allows you to manually control other Z-Wave devices with a switch. Now full control of your home is just a hand away!
Manually activate or deactivate complex scenes. Wave i4 allows you to perform synchronized actions of multiple Z-Wave devices. You can install Wave i4 near the front door of your house and turn all the lights in your house on and off with the touch of a button, saving you time when you are in a hurry.
Wave i4 is perfect for Shelly Wall Switch for Smart Relays - a 4-button switch. Each button can activate up to 4 different actions. This means that up to 16 scenes can be triggered and executed with just one 4-button switch! Thanks to its compact dimensions and easy wiring, Shelly Wall Switch fits into any existing switch panel or even the smallest of spaces. No wall space extension or wiring changes required!
Specifications
| Power supply | AC110-240V, 50/60Hz |
|---|---|
| Power supply DC | NO |
| power consumption | < 0.2W |
| Surge protection | NO |
| Performance measurement | NO |
| Working without a neutral conductor | NO |
| Number of inputs | 4 |
| distance | up to 40 m indoors (depending on local conditions) |
| Z-Wave Repeater: | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency band | 868.4MHz |
| Maximum transmitted radio frequency power in frequency bands | < 25mW |
| Size (H x W x D) | 37 x 42 x 16 0.5 mm / 1.46 x 1.65 x 0.63 0.02 inches |
| Weight | 17g / 0.6oz |
| Assembly | Wall bracket |
| Screw terminals max. torque | 0.4 Nm / 3.5 pounds |
| Conductor cross-section | 0.5 to 1.5 mm / 20 to 16 AWG |
| Length of stripped conductor | 5 to 6 mm / 0.20 to 0.24 inches |
| Shell material | plastic |
| Color | Orange |
| Ambient temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| humidity | 30% to 70% relative humidity |
