Shelly · Unterputz · "Wave PM Mini" · Relais · max. A · 1 Kanal · Z-Wave

Smart Z-Wave® power meter, 1 channel 16 A

The world's smallest Z-Wave power meter for precise power monitoring. Monitor the power consumption of electrical devices from anywhere and optimize your energy consumption. Thanks to its compact retrofit design, it is so small that it can fit into even the tightest spaces and electrical sockets.

*This is only a power meter and not a relay .

• Supports up to 16A at 240V AC
• Performance measurement
• Extremely low power consumption: < 0.3 W
• Z-Wave frequency band: 868.4 MHz (CEPT countries)
• Latest technology: Z-Wave 800 series
• Automatic setup with SmartStart
• Security 2 Authenticated for the highest level of security
• Supports over-the-air firmware updates
• Quick and easy installation in most standard electrical boxes and switches
• Works with Z-Wave certified gateways and over 4,000 Z-Wave devices

*A gateway (smart hub) is not included. A gateway (smart hub) is required to configure the device.

WHY WAVE PM MINI?

Mini size, mini price

Designed with convenience in mind, this mini power meter has the powerful ability to monitor energy usage, all in a compact and space-saving form factor. Wave PM Mini is perfect for tight spaces where traditional devices simply wouldn't fit. Despite their small size, Wave Mini devices don't compromise on performance or functionality.

Shelly Qubino works with Z-Wave

By using Z-Wave, smart home products can communicate seamlessly with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.

_{*Z-Wave devices have specific requirements to function correctly, such as the need to use a supported Z-Wave hub. For more information, please visit the official Z-wave website: www.z-wave.com}

Works with any Z-Wave gateway

Wave Mini devices are designed to fit behind any switch or outlet, or can be built right into the device, instantly turning it into a smart device. Once installed, add it to your Z-Wave network (a Z-Wave gateway is required) and control connected devices from anywhere using your smartphone or tablet.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.

FUNCTIONS:

Z-Wave controlled

Add the Wave PM Mini to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.

Supports up to 16A

The device can measure the power consumption of a load of up to 16 A

Performance monitoring

Wave PM Mini provides precise monitoring of power consumption.

Supports a variety of different voltages

Use a wide range of output voltages.

Associations

Set up direct communication between devices in your local Z-Wave network and set custom actions, even without a hub!

Intelligent scenes

Set custom scenes by combining the Wave PM Mini with other Z-Wave devices (gateway required).

It depends on the size

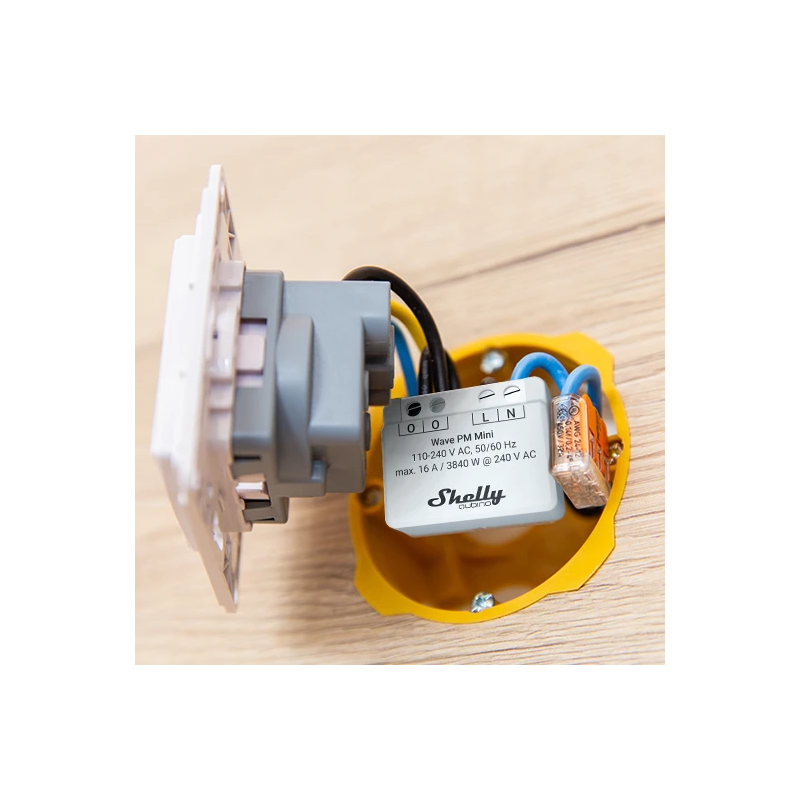

Wave Mini devices open up a world of possibilities and allow you to integrate them seamlessly into even the tightest spaces and control boxes. Thanks to their reduced size, Wave Mini devices fit effortlessly into all types of electrical control boxes, including Danish sockets. In addition, they can be discreetly installed directly in the device you want to control or monitor.

USE CASES

Proactive management

When an electrical appliance is damaged, it doesn't just stop working. It usually increases energy consumption to compensate for its operating capacity. Since there is no visible difference in performance, it may take months before you notice a problem, resulting in inefficiency and wasted energy. Wave PM Mini, on the other hand, reports the increase in energy consumption immediately, saving you from additional costs for repairs or replacing appliances.

Monitor your electricity consumption and live more cost-efficiently

Sometimes we forget to turn off all the lights or leave an appliance we don't need on at night, generating unnecessary energy. Wave PM Mini's power monitoring allows you to detect and eliminate excessive energy consumption in your home. Together with smart scenes, you can use Wave PM Mini's data to create scenarios such as turning off appliances during a power surge to protect them or during the night to save energy.

TECHNICAL DATA:
