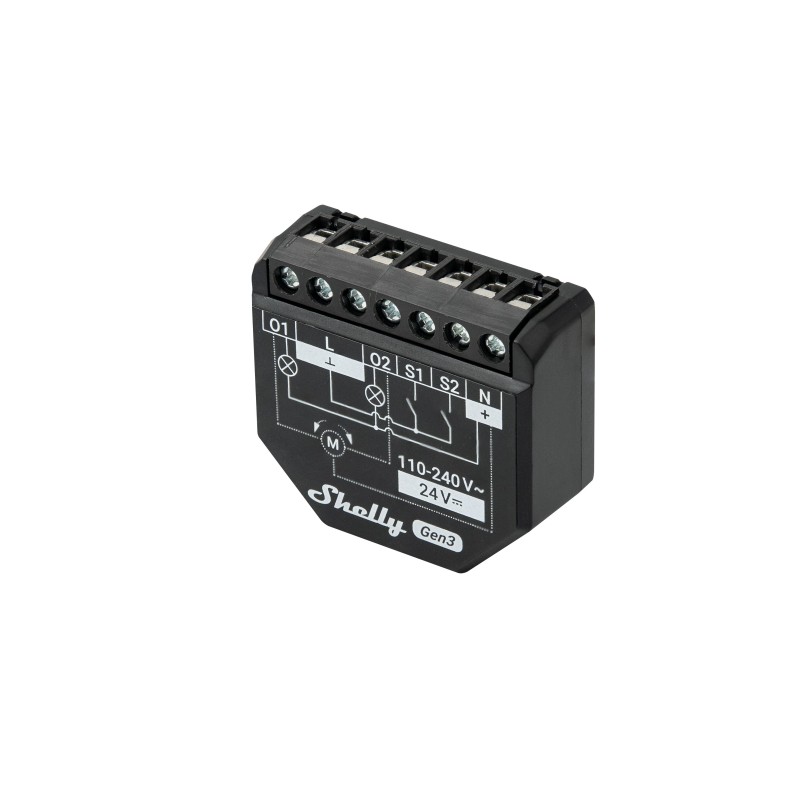

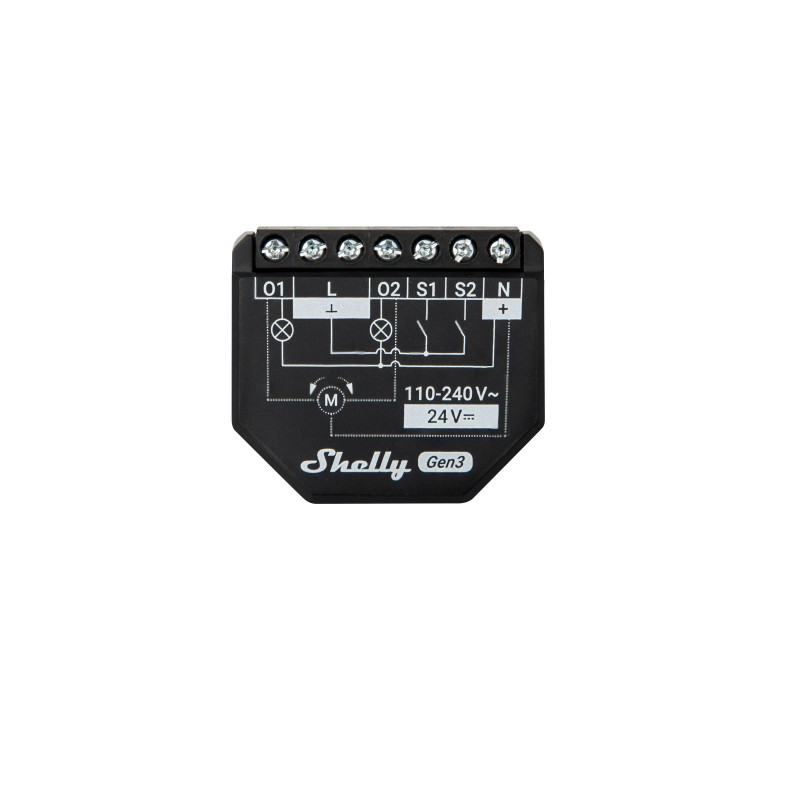

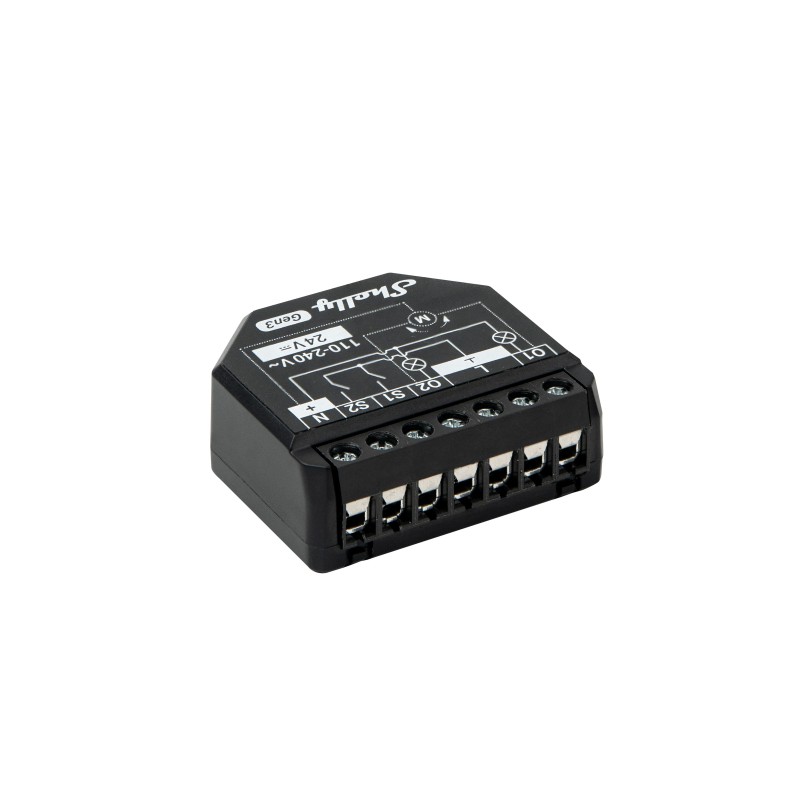

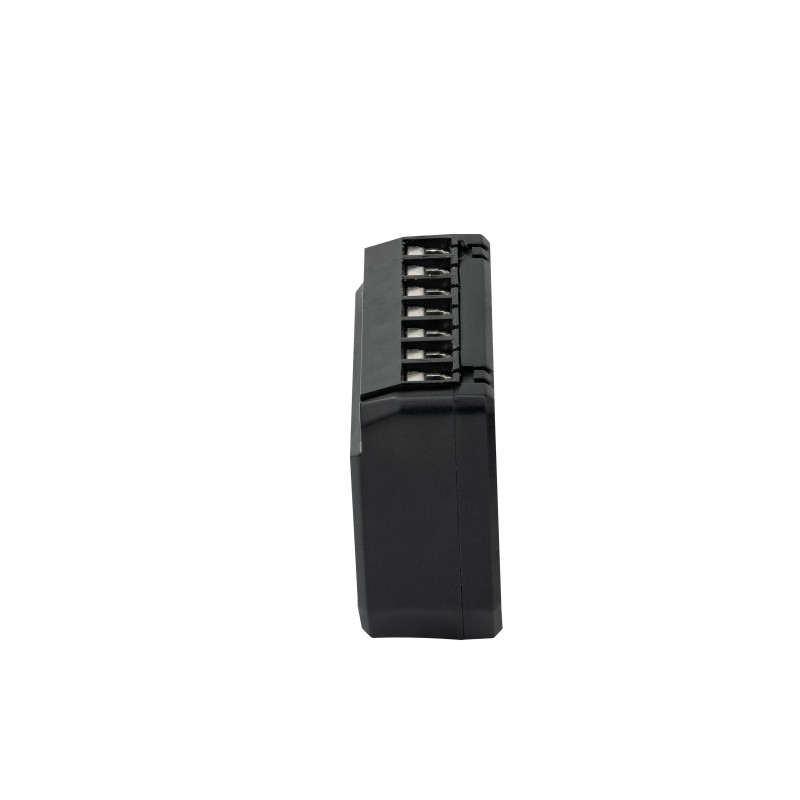

Shelly · Flush-mounted · "2PM Gen3" · Relay · max 16A · 2 channel · WLAN · BT
Shelly · Flush-mounted · "2PM Gen3" · Relay · max 16A · 2 channel · WLAN · BT
WiFi-controlled smart switch with two channels, 16 A total current (18 A peak)
The Shelly 2PM Gen3 is a smart switch with two-channel control, power measurement and cover control. You can remotely control and monitor two different circuits or roller shutters, blinds and other bidirectional motors. Perfect for retrofitting standard electrical boxes, sockets and light switches - even in tight spaces.
- Two channels on the same phase
- power measurement on each channel
- Roller Shutter Control – Automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors and other bidirectional motors
- Slat angle control – Use the switch for your blinds and control the tilt position (angle) of the slats to adjust how much light shines into a room.
- New processor – ESP-Shelly-C38F chip with increased memory capacity of 8 MB
- Improved durability of the clamps
- Virtual Components
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- No HUB required! Easy control via Shelly Smart Control app, various home automation protocols, platforms and voice assistants
- Supports KNXnet / IP communication
functions
Wi-Fi-powered
Connect the Shelly 2PM Gen3 to your WiFi network. No HUB required!
Bluetooth
Quick integration via Bluetooth or use as a Bluetooth gateway.
performance measurement
Two integrated precise energy meters allow you to monitor the consumption of each channel.
slat angle control
Use it with your blinds and control the tilt position of the slats to adjust how much light shines into a room.
Smart schedules
Set custom schedules based on your daily routine or control your lights according to sunrise or sunset.
Smart Scene
Combine the Shelly 2PM Gen3 with other
Endless application possibilities
Perfect start to the day
Automated curtains in the bedroom
Set the Shelly 2PM Gen3 to open your bedroom curtains at a specific time each morning using “Schedules.” When you wake up, the curtains will gradually open, giving you a gentle wake-up call and the perfect start to your day.
Separate consumption recording
Control two lights with one device
The Shelly 2PM Gen3 allows you to control and monitor two different lights on the same phase with just one device. The power consumption of each light is recorded separately for more efficient lighting. Use the manual switch, the app, your favorite smart home system or your voice!
reduce electricity costs
energy management
Take control of your energy consumption with the power metering function for each channel. Monitor and analyze the consumption of connected devices in real time and use this data to make informed decisions to reduce your energy costs.
Use daylight
Smart blinds
Connect the Shelly 2PM Gen3 to your blinds for an energy-efficient home. Automatically adjust them to the time of day or weather conditions. For example, make sure that they close on hot days so that your rooms stay cool. In the morning, however, the blinds go up - this lets in natural light and requires less artificial lighting.
Technical data
| Characteristics | ||
|---|---|---|
| Size (H x W x D): | 37 x 42 x 16mm / 1.46 x 1.65 x 0.63 inch | |
| Weight: | 27 g | |
| Screw terminals max. torque: | 0.4Nm / 3.5 lbin | |
| Cross-section of the conductor: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded and wire end ferrules) | |
| Stripping length of the conductor: | 6 to 7 mm / 0.24 to 0.28 inches | |
| Assembly: | flush-mounted box | |
| Housing material: | plastic | |
| Color of the case: | Schwarz Umwelt | |
| Ambient temperature: | -20 °C to 40 °C | |
| Humidity: | 30% to 70% relative humidity | |
| Max. altitude above sea level: | 2000 m | |
| Electric | ||
| Power supply: | ||
| 110-240 V~ | ||
| 24 V? ±10 % | ||
| Self-consumption: | < 1.4 W | |
| nominal values of the output circuits | ||
| Max. switching voltage: | ||
| - 240 V~ | ||
| - 30 V? • | ||
| Max. switching current: | ||
| - 16 A (240 V~) | ||
| - 10 A (30 V?) | ||
| sensors, measuring devices | ||
| Internal temperature sensor: | Yes | |
| Voltmeter (AC): | Yes | |
| Ammeter (AC): | Yes | |
| security features | ||
| Overheating protection: | Yes (AC) | |
| Surge protection: | Yes (AC) | |
| Overcurrent protection: | Yes (AC) | |
| Overload protection: | Yes | |
| Obstacle detection: | Yes (blind mode) | |
| Safety switch: | Yes (blind mode) | |
| radio | ||
| Wi-Fi | ||
| Protocol: | 802.11 b/g/n | |
| Frequency band: | 2400 - 2495 ?Hz | |
| Max. RF power: | < 20 dBm | |
| Reach: | Up to 50 m outdoors, up to 30 m indoors (depending on local conditions) | |
| Bluetooth | ||
| Protocol: | 4.2 | |
| Frequency band: | 2400 - 2483.5 MHz | |
| Max. RF power: | < 4 dBm | |
| Reach: | Up to 30 m outdoors, up to 10 min buildings (depending on local conditions) | |
| microcontroller unit | ||
| CPU: | ESP-Shelly-C38F | |
| Flash: | 8 MB | |
| firmware functions | ||
| Schedules: | 20 | |
| WebHooks (URL actions): | 20 with five URLs per hook | |
| WLAN repeater: | Yes | |
| BLE gateway: | Yes | |
| Scripting: | Yes | |
| MQTT: | Yes | |
| Encryption: | Yes | |
