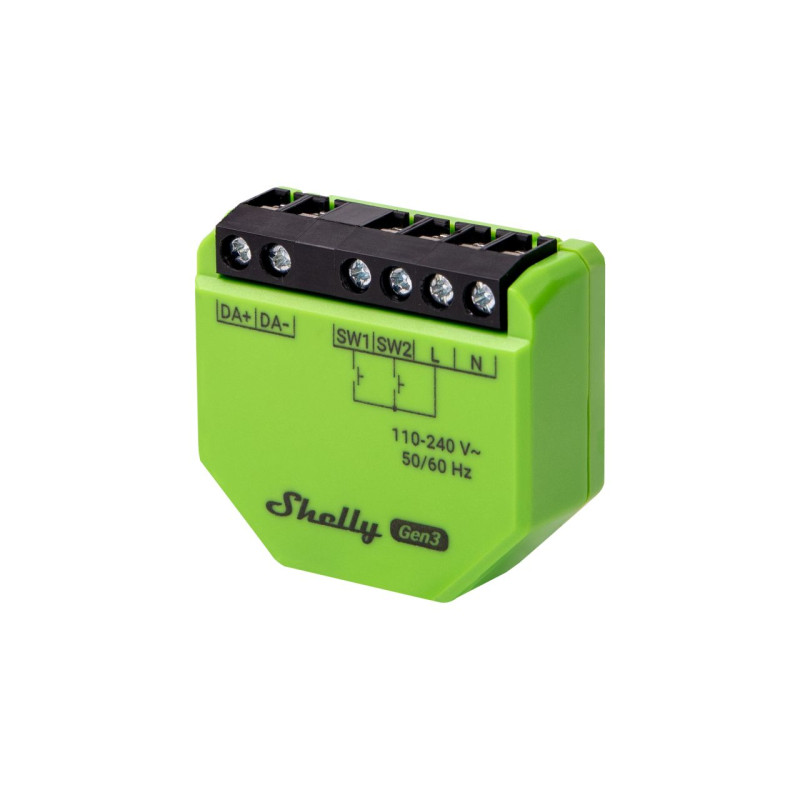

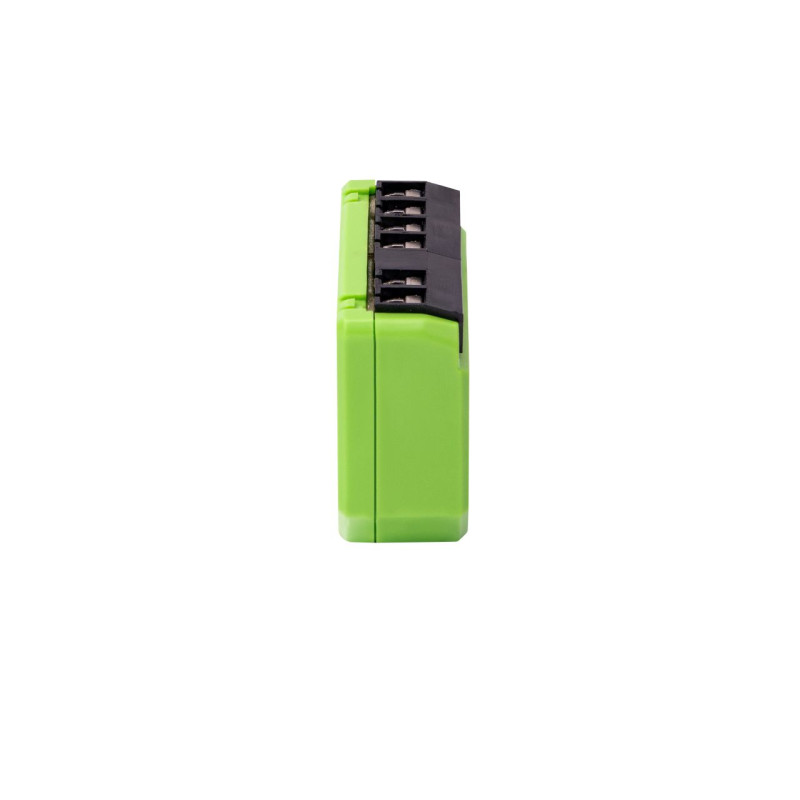

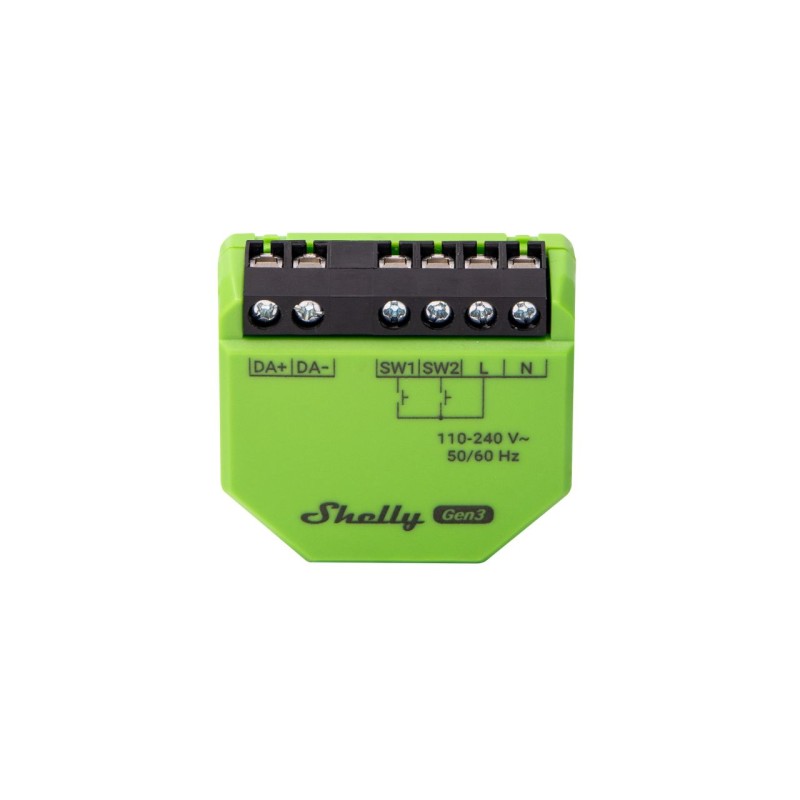

The Shelly DALI Dimmer Gen3 is an advanced brightness control device for high-quality DALI luminaires. It acts as a bridge between a DALI network of luminaires and your Shelly ecosystem, providing a simple solution for managing your sophisticated lighting system.
- WLAN and Bluetooth connectivity (BLE gateway and WLAN range extender)
- DALI Single Master Application Controller
- Supports LED control gear (DALI Part 207)
- Bus power supply with guaranteed 10 mA (up to 5 DALI control gear)
- Smart schedules
- Night mode: Allows you to set a specific brightness of the entrance lights during the night
- Min/Max Brightness: Changes the range of the dimming signal to achieve more precise brightness control.
- Key fade speed: Controls how quickly the brightness changes when you hold down the key(s).
- Transition Duration: Controls the time for dimming from 0 to 100%.
- Supports scripting, webhooks, MQTT and local actions
- High compatibility with third-party home automation systems
- Supports KNXnet / IP communication
- No HUB required! Easy control via Shelly Smart Control app, various home automation protocols, platforms and voice assistants.
THIS is why you should choose the shelly dali dimmer
Smart dimmer for
DALI luminaires
Control high-quality DALI luminaires with the Shelly DALI Dimmer Gen3 and integrate them into your Shelly Smart Ecosystem. Experience predictable and repeatable brightness control of DALI luminaires with additional features for easy maintenance. The excellent integration with external Shelly sensors or input controls improves and automates the usability of your home or office.
functions
Shelly control of
DALI Part 207 devices
Shelly DALI Dimmer Gen3 was developed to control the brightness of DALI lights. Whether for your home or your office: Shelly's smart solutions enable cost-effective and highly flexible use of sensors and actuators.
Integrated bus power supply
The integrated bus power supply enables the control of up to five downstream lights without the need for an additional
DALI power supply module is required. If additional sensors or wall switches need to be used, the Shelly product line offers
wired and wireless sensors for easy integration or retrofit solutions.
KNX Support
The Shelly DALI Dimmer Gen3 integrates into KNX systems and offers a powerful and cost-effective solution for extending your existing system. Wireless expansion eliminates the need for wiring, reducing both installation time and costs. Whether you are upgrading an existing system or adding new features, the new Shelly device offers a flexible and efficient way to extend your KNX network.
remote control
Enjoy the flexibility of remotely controlling and monitoring your smart home, office or business. Your cloud-connected Shelly devices can be integrated into the Shelly Smart Home application. Control individual rooms, create smart scenes and share your devices with your family members.
Advanced Integration
KNX support
Documentation to support KNXnet/IP communication
Technical data
| Size (H x W x D): | 42 x 37 x 17mm / 1.65 x 1.46 x 0.66 inch |
|---|---|
| Weight: | 18 g |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Cross-section of the conductor: | 0.2 to 2.5 mm²/ 24 to 14 AWG (solid, stranded and wire end ferrules) |
| Stripping length of the conductor: | 6 to 7 mm / 0.24 to 0.28 inches |
| Assembly: | wall installation, suspended ceilings |
| Housing material: | plastic |
| Color of the case: | Green |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity: | 30% to 70% relative humidity |
| Max. altitude above sea level: | 2000 m |
| Power supply: | 110 - 240 V~ ±10 % 50/60 Hz |
| Device's own consumption: | < 2 W |
| Neutral conductor is required: | No |
| Bus power supply: | Guaranteed 10 mA (up to 5 DALI ballasts), short-circuit current 35 mA |
| Bus voltage: | 16 V nominal |
| Internal temperature sensor: | Yes 802.11 b/g/n |
| HF band: | 2401 - 2495 ?Hz |
| Max. RF power: | < 20 dBm |
| Reach: | Up to 50 m outdoors, up to 30 m indoors (depending on local conditions) |
| Protocol: | 4.2 |
| Frequency band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Reach: | Up to 30 m outdoors, up to 10 m indoors (depending on local conditions) |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| Schedules: | 20 |
| WebHooks (URL actions): | 20 with five URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Encryption: | Yes, TLS 1.2 |
