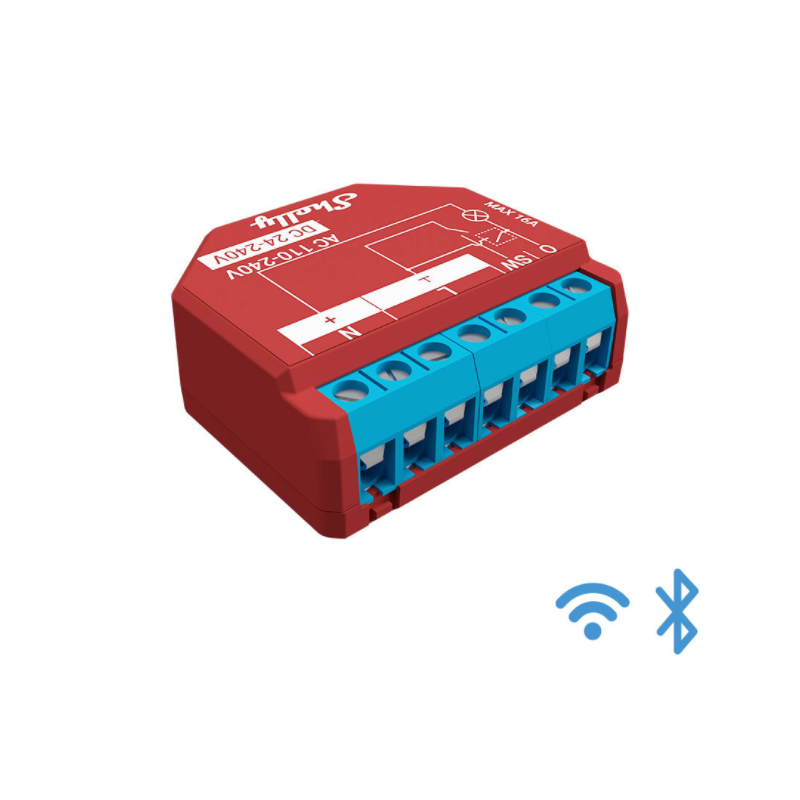

Shelly · Flush-mounted · "Plus 1PM" · Relay · max. 16A · 1 channel · Measuring function · WLAN · BT
Shelly · Flush-mounted · "Plus 1PM" · Relay · max. 16A · 1 channel · Measuring function · WLAN · BT
WHY SHELLY PLUS 1PM?
PROMO
Next generation device control with precise power measurement

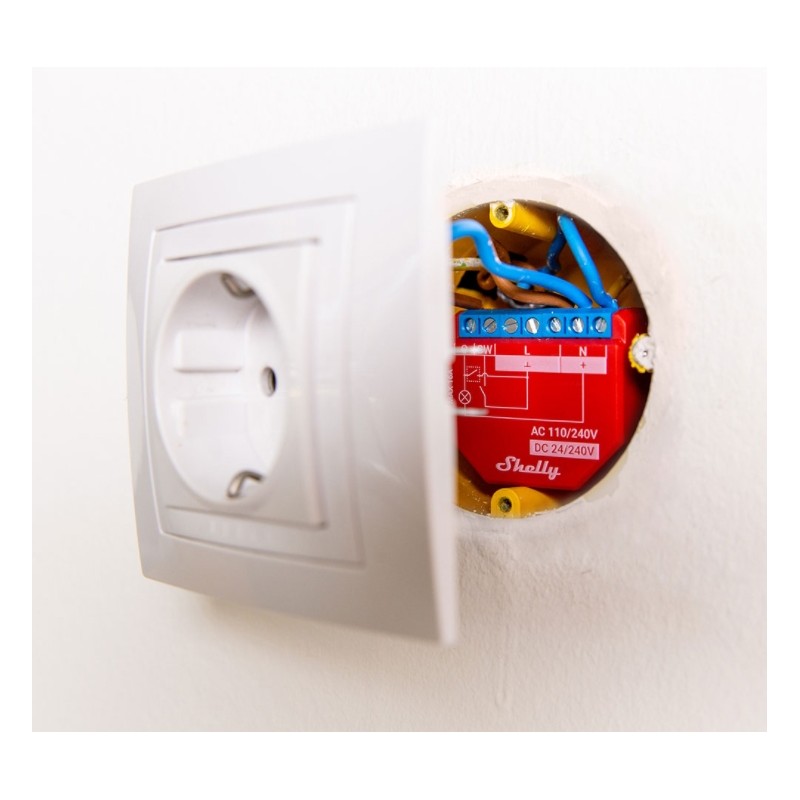

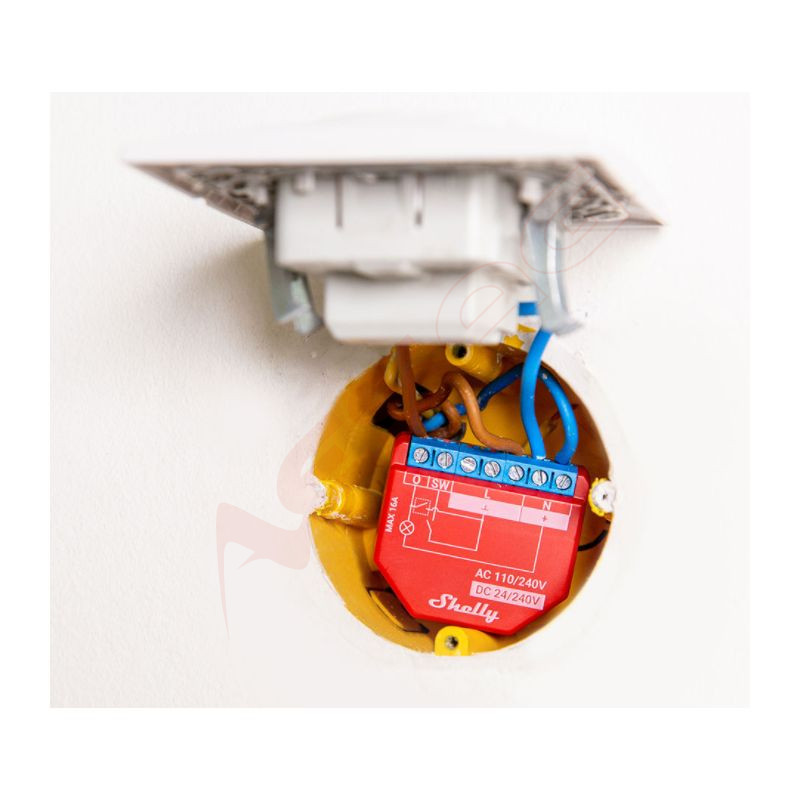

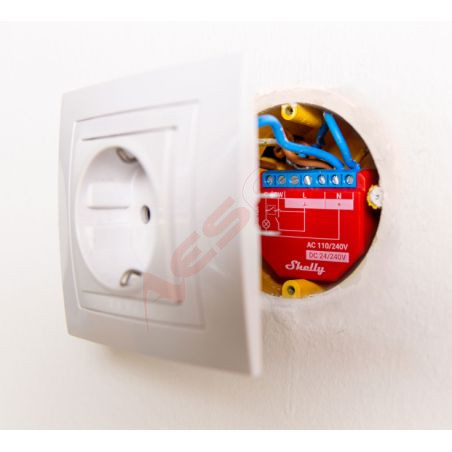

From automating lighting to controlling electrical appliances, Shelly Plus 1PM offers precise power measurement and free data storage in the cloud. Shelly 1PM is small enough to fit behind any wall switch or outlet and can be installed in less than 10 minutes.
Characteristics
Wi-Fi operation
Connect the Shelly Plus 1PM to your Wi-Fi network. No HUB required!
Bluetooth
Add devices quickly and easily via Bluetooth connection using the Shelly Cloud app.
Power monitoring
Shelly Plus 1PM offers precise monitoring of power consumption.
Supports a wide range of voltages
Use it to control a wide range of devices and appliances.
Smart schedules
Set custom schedules based on your daily agenda or follow sunrise/sunset and control your lighting accordingly.
Intelligent scenes
Set custom scenes by combining Shelly Plus 1PM with your other Shelly devices.
Endless application possibilities
Track your electricity consumption and save money
You can now monitor and analyze the power consumption of your electrical appliances and save money on electricity bills. Shelly Plus 1PM has a built-in precise electricity meter that allows you to measure power consumption and offers free data storage for analysis.
Automate any electrical device and control it remotely
Shelly Plus 1PM allows you to automate and remotely control any electrical device in your home. Shelly Plus 1PM is capable of controlling large load devices, making it perfect for monitoring and controlling kitchen appliances and household systems. You can accurately measure the power consumption of each device and turn it on and off remotely, no matter where you are.
Coming home to a cozy house
There's nothing better than coming home to a cozy house on a cold winter day! Set Shelly 1PM to turn on the heaters in your home an hour before you return from work. Remotely monitor the power usage of your heaters to make sure they're running and warming up. This way, you and your family will be cozy at home as soon as you walk in the door!
Set clever scenes and be prepared for everything
Unlock the full potential of the Shelly Plus 1PM by combining it with other devices on your home network! Set the Shelly Plus 1PM to activate custom scenes based on time of day, light, or various events. For example, you can set the Shelly Door/Window Sensor to detect the opening of the patio door and activate the Shelly Plus 1PM to only turn on the hot tub heater after 8pm.
Full compatibility
Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can control Shelly devices using only your voice!
Specifications
POWER | |
---|---|
Power supply AC | 110-230V ±10%, 50/60Hz |
Maximum load | 16A |
Power supply DC | 24 – 30V |
Channels | 1 Channel |
SPECIAL FEATURES | |
Dry contacts | No |
Roller shutter mode | No |
Device temperature protection | Yes |
Overload protection | Yes |
Power measurement | Yes |
Working without a neutral line | No |
FEATURES | |
HTTP/HTTPS webhooks | Yes |
Custom scripts (mJs) | Yes |
Operating temperature | -20°C to + 40 °C |
Device power consumption | < 1W |
Intelligent On/Off | Yes |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
UL Listed option | No |
CONNECTIVITY | |
Wireless | Yes |
Wi-Fi Protocol | 802.11 b/g/n |
Wi-Fi radio frequency | 2412 - 2484MHz |
Wi-Fi signal power | 1mW |
Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Bluetooth | Yes |
DIMENSIONS | |
Size | 42x38x17mm |
