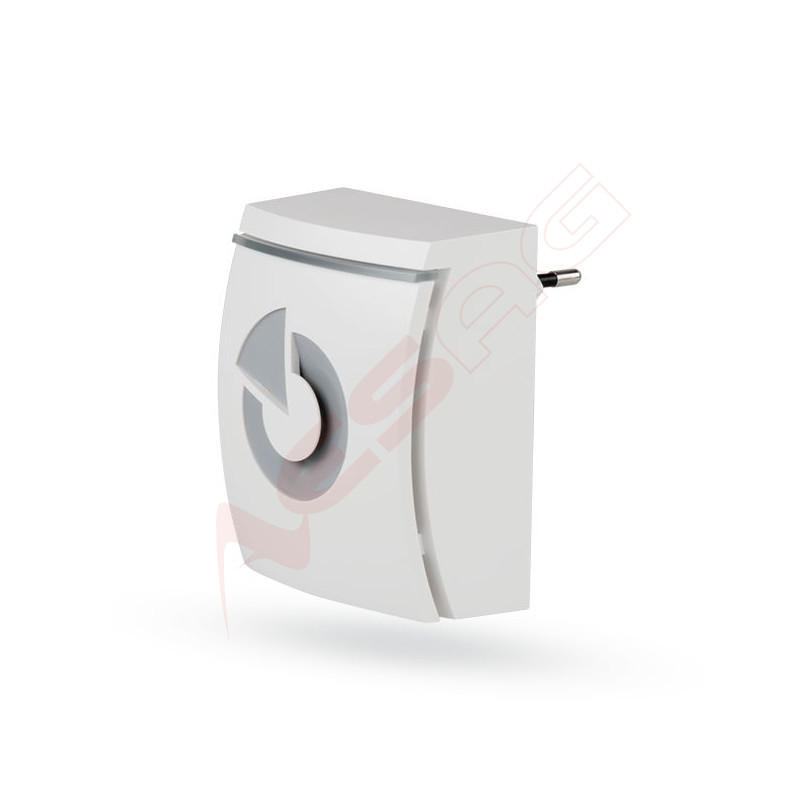

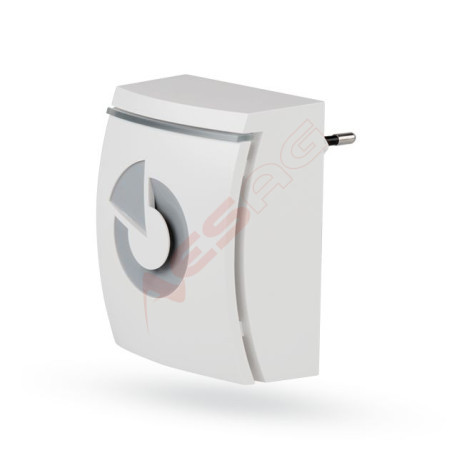

JABLOTRON 100 - Plug-in wireless indoor siren

The new RADIO siren JA-152A is a powerful indoor siren with a volume of 105 db/m. This siren is designed for quick and easy installation in an existing socket.

This indoor siren is suitable for JA-100/JA-100+ control panels.

The internal siren is also used for acoustic signaling of switching states such as entry and exit delays.

The indoor siren is equipped with an emergency power supply.

Product Highlights:

• Suitable for the JA-100 system
• For acoustic signaling of an alarm condition, the entry and exit delay of the system or the activation of a PG output
• Alarm message via piezo siren (105 dB)
• The siren has a programmable button which can be used to silence the alarm or as a panic button
• 4 different ringtones programmable
• Tamper sensor

Technical data:

• Power supply 230 V / 50 Hz, protection class II
• Battery / Lifespan 3.2 V; 400 mAh (BAT-3V2-CR2) / 3 years
• Operating frequency 868.1 MHz
• Communication range approx. 300 m (direct line of sight)
• Tones (melodies) 8 selectable for PG display
• Alarm siren sound 105 dB / 1 m
• Dimensions: 90 x 70 x 45mm
• Protection class IP40 corresponds to EN 60529
• Environment complies with EN 50131-1, II. General indoor area
• Operating temperature range: -10°C to + 40°C
• Safety level: Level 2 corresponds to EN 50131-1,
• EN 50131-4, EN 50131-5-3 also meets the requirements of EN 50131-6 ed. 2+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581
