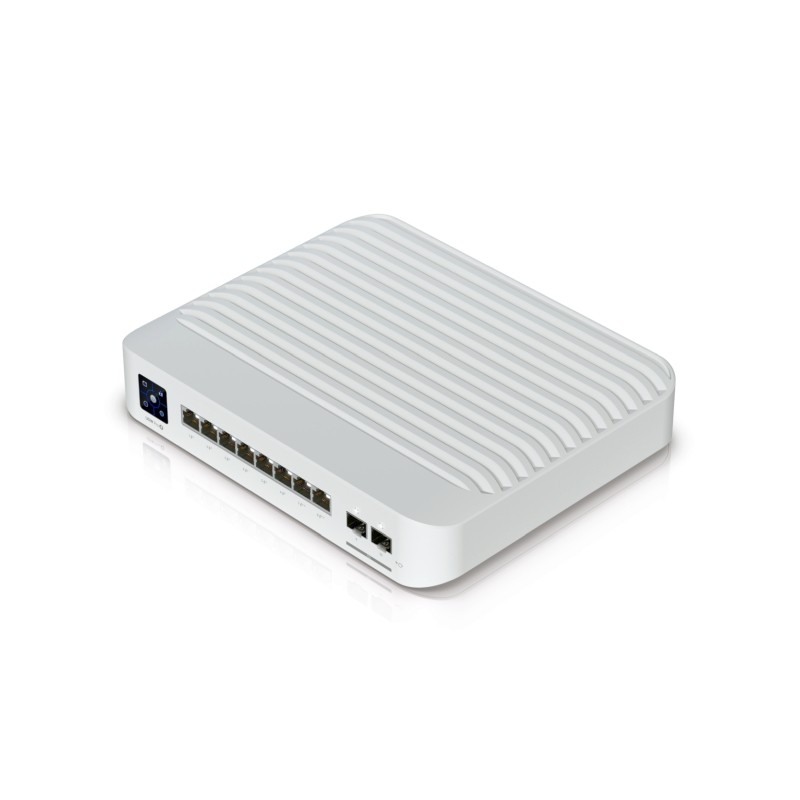

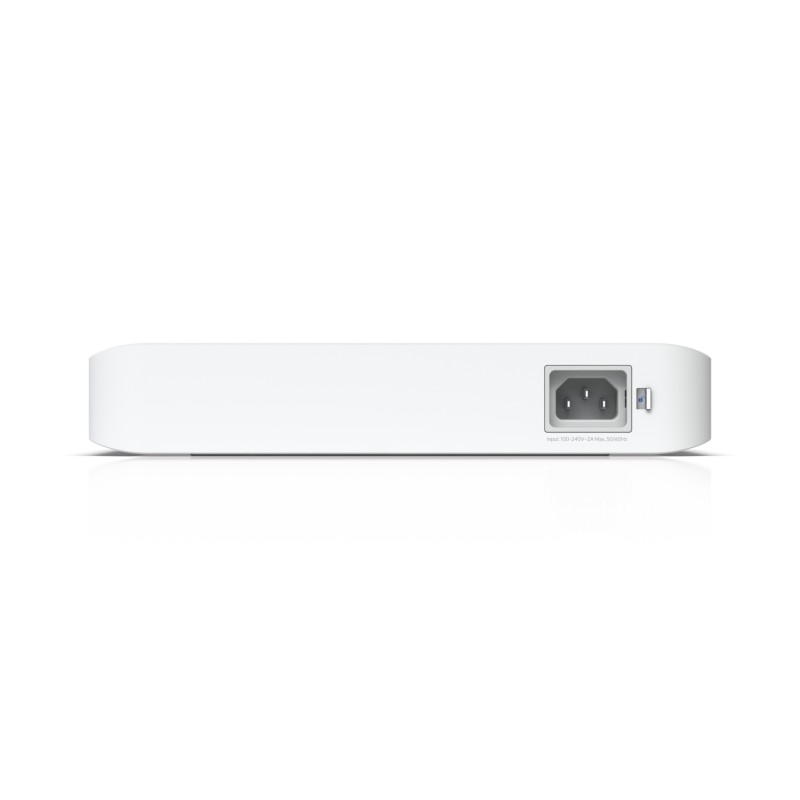

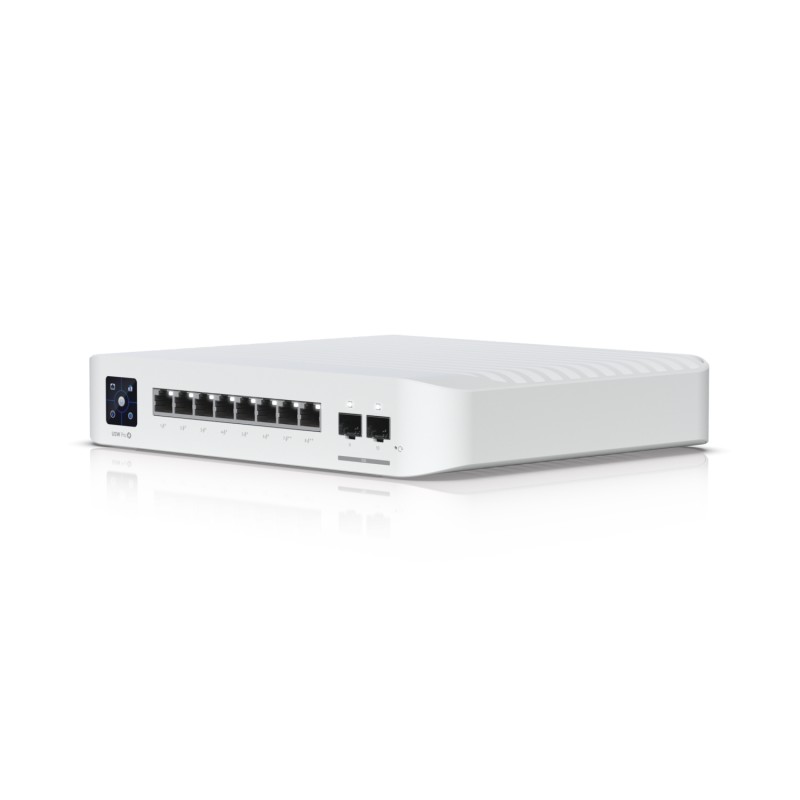

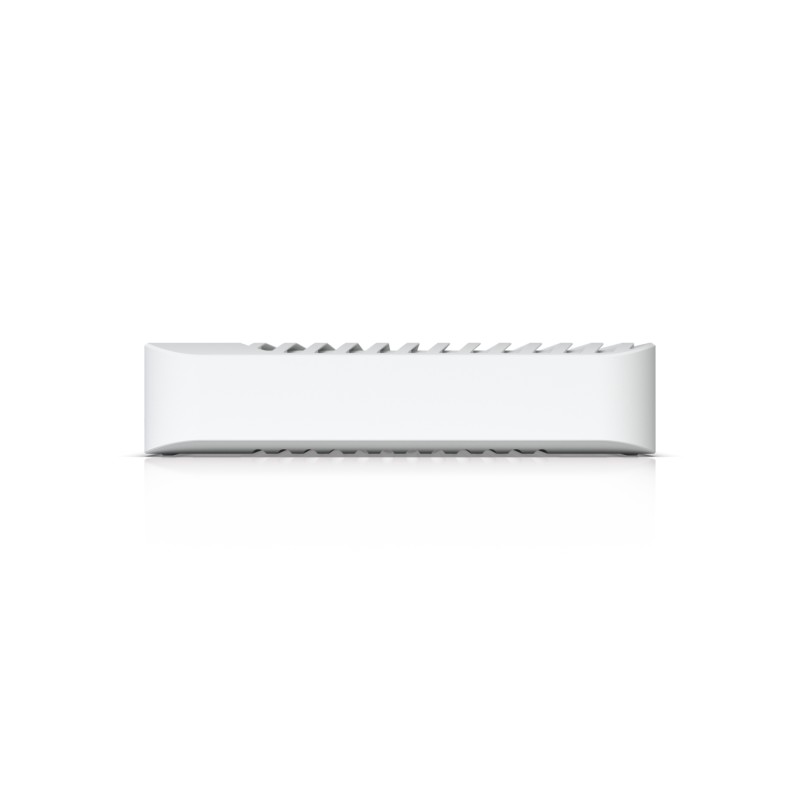

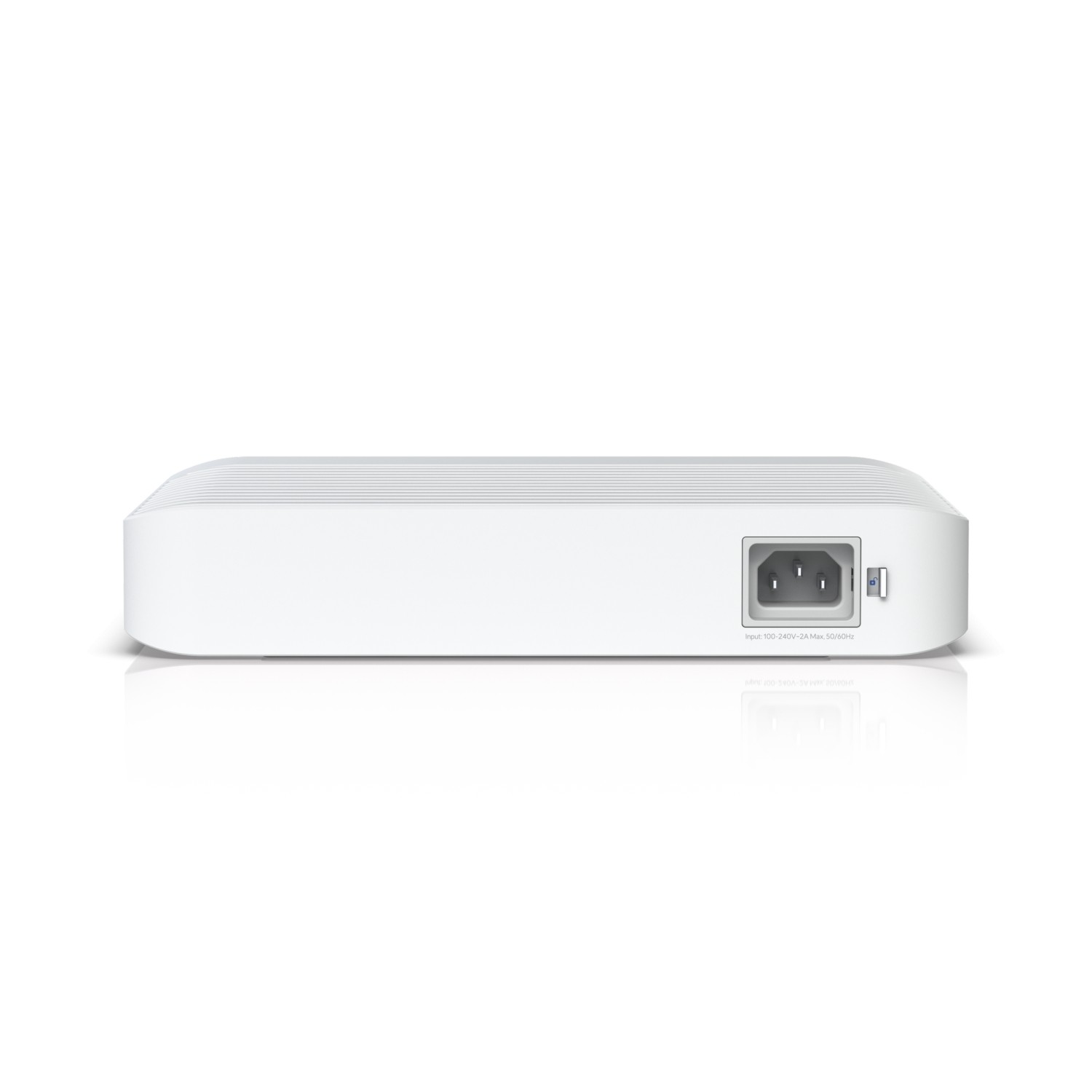

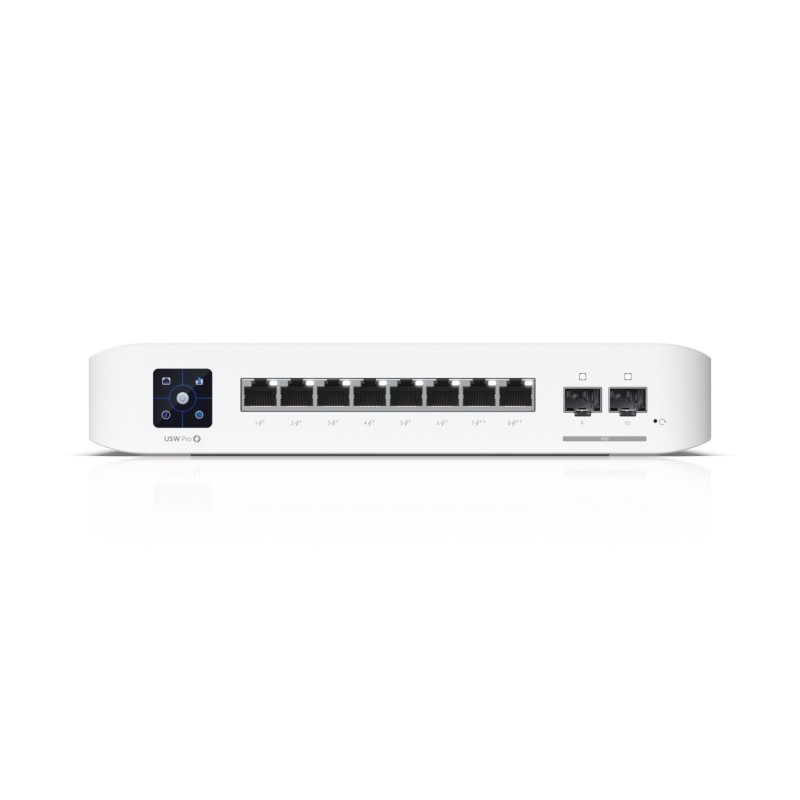

Ubiquiti UniFi Switch Pro / 8 Port / 120W / PoE++ / 2 SFP+ Ports / USW-Pro-8-POE
Ubiquiti UniFi Switch Pro / 8 Port / 120W / PoE++ / 2 SFP+ Ports / USW-Pro-8-POE
Ubiquiti UniFi Switch Pro / 8 Port / 120W / PoE++ / 2 SFP+ Ports / USW-Pro-8-POE
(6) GbE PoE+ ports
(2) GbE PoE++ ports
(2) 10G SFP+ ports
Total 120W PoE availability
Note: Managed with UniFi Network Application version 7.5.176 and higher.
Technical specifications
| Mechanically | |
|---|---|
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.1 kg (4.6 lbs) |
| Housing materials | Plastic, metal |
| Mounting material | plastic |
| Hardware | |
| Management interface | Ethernet In-Band |
| Network interface | (8) GbE RJ45 ports (2) 10 Gbps SFP+ ports |
| PoE interface | (6) PoE/PoE+ (pins 1, 2+ 3, 6-) (2) 60W PoE++ (Pair A 1, 2+ 3, 6-) (Pair B 4, 5+ 7, 8-) |
| Total non-blocking throughput | 28 Gbps |
| Switching capacity | 56 Gbps |
| Power method | Universal input, 100-240 V AC, max. 2A |
| Power supply | AC/DC, internal |
| Supported voltage range | 100–240 V AC |
| Max. energy consumption | 30 W (without PoE output) |
| Total available PoE | 120W |
| Max. PoE wattage per port according to PSE | PoE: 15W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44-57V PoE+: 50-57V PoE++: 50-57V |
| LCM display | (1) 1.3-inch touchscreen |
| LED | RJ45 ports: connection/activity |
| button | Factory settings reset |
| operating temperatur | -5 to 45 °C (23 to 113 °F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Application requirements | |
| UniFi Network | Version 7.5.176 and higher |
