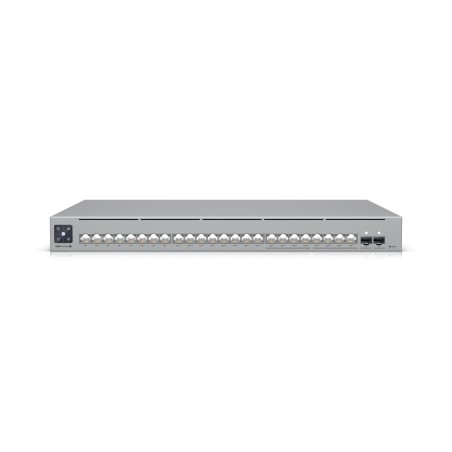

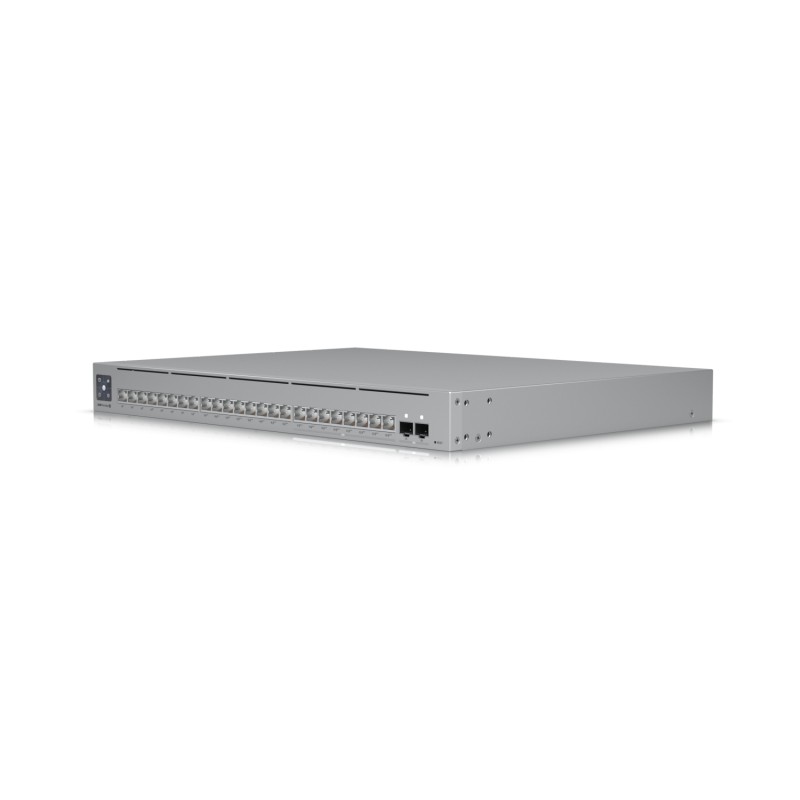

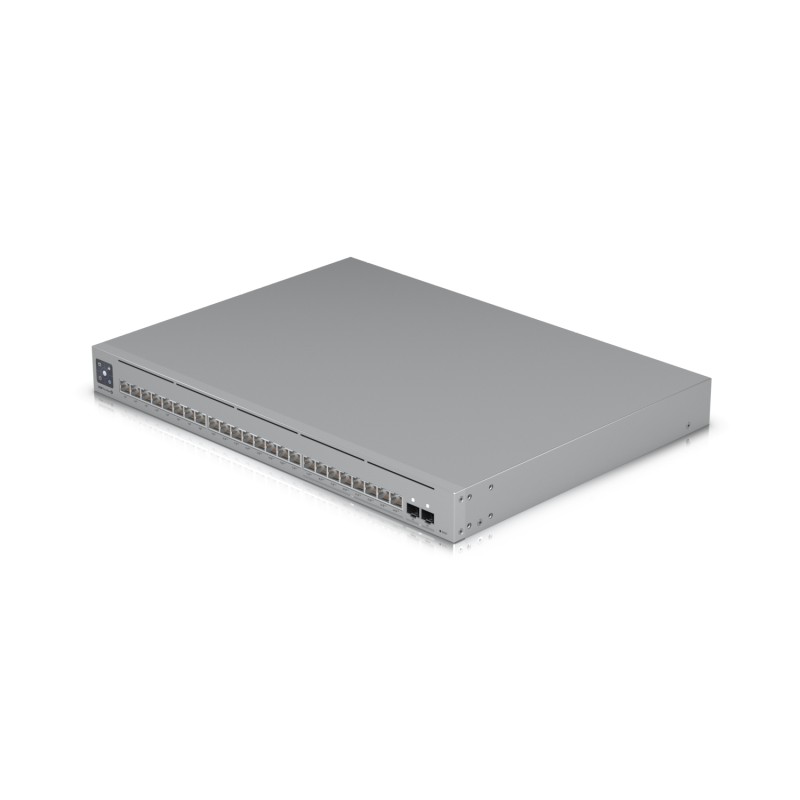

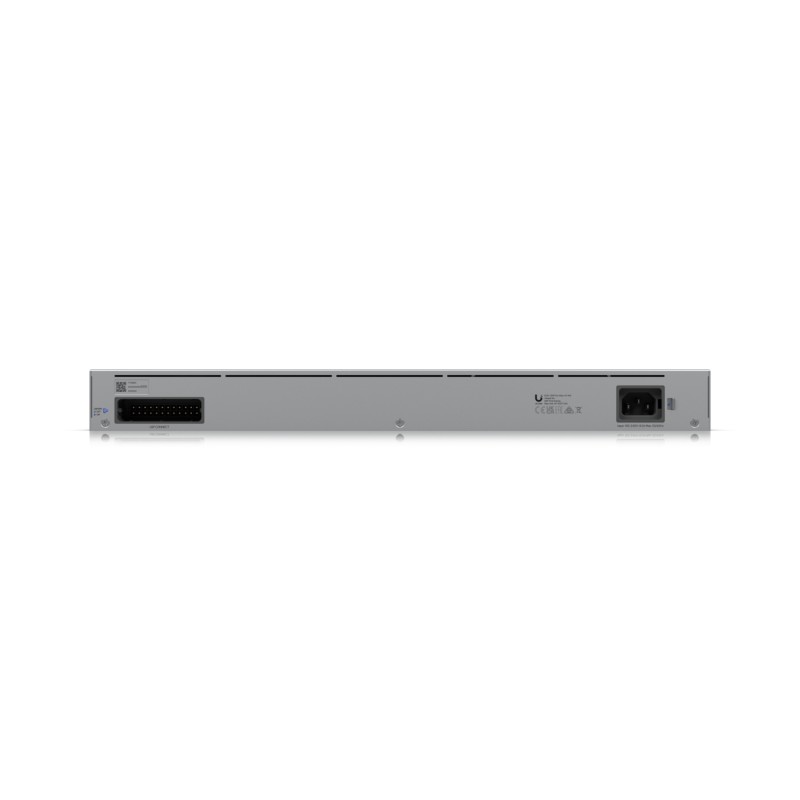

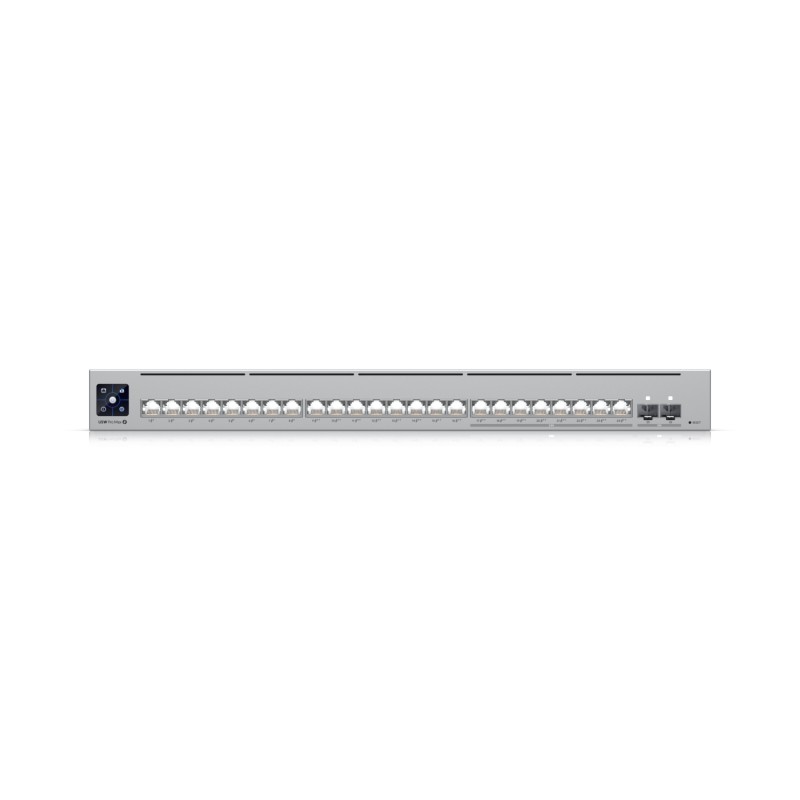

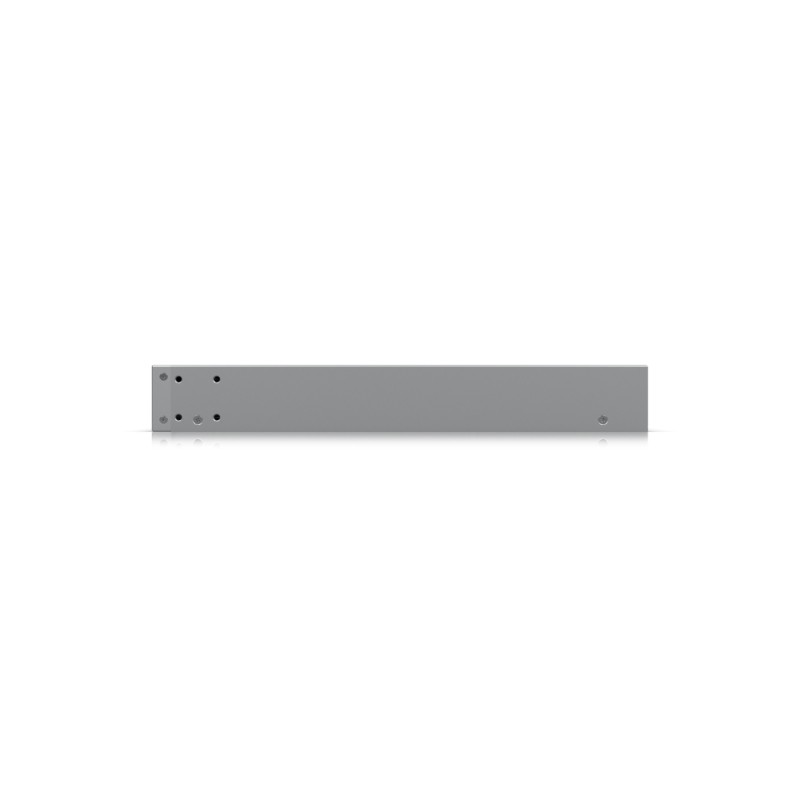

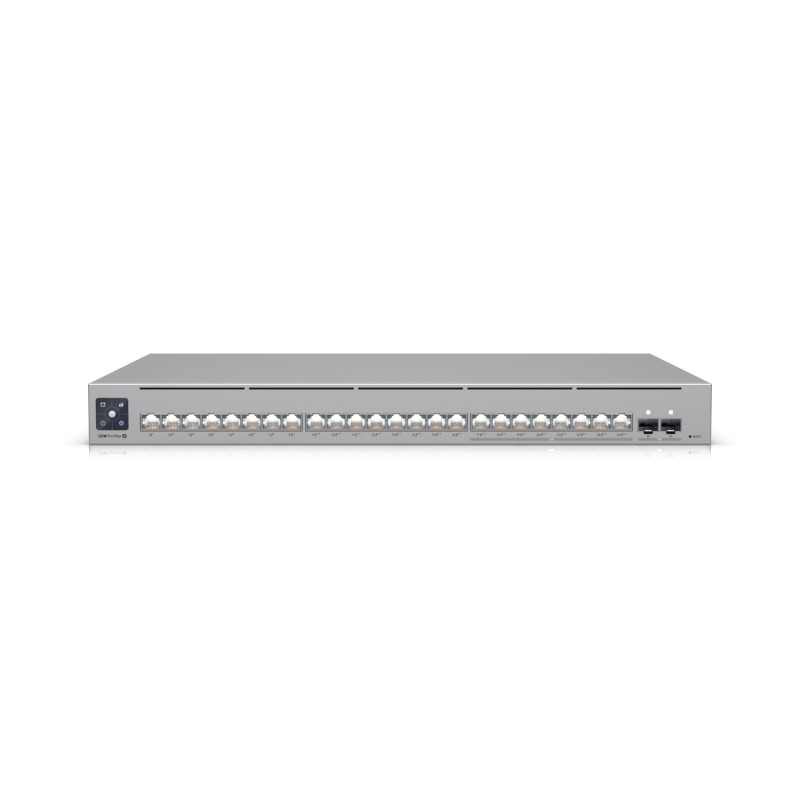

Ubiquiti UniFi Switch Pro Max / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-Max-24-PoE
Ubiquiti UniFi Switch Pro Max / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-Max-24-PoE
Ubiquiti UniFi Switch Pro Max / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-Max-24-PoE
A 24-port Layer 3 Etherlighting™ switch with high-performance PoE++ output.
Etherlighting™ ports that light up to indicate port location, speed/link, and native VLAN/network*
(8) 2.5GbE
(2) 10G SFP+ ports
DC emergency power supply ready
Total 400W
Technical specifications
| Mechanically | |
|---|---|
| Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7 inches) |
| Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
| Housing material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Network interface | (16) GbE RJ45 ports (8) 1/2.5GbE RJ45 ports (2) 10G SFP+ ports |
| PoE interface | (8) PoE/PoE+ (pins 1, 2+ 3, 6-) (16) 60W PoE++ (Pair A 1, 2+ 3, 6-) (Pair B 4, 5+ 7, 8-) |
| Total non-blocking throughput | 56 Gbps |
| Switching capacity | 112 Gbps |
| Power method | Universal input, 100-240 V AC, 50/60 Hz USP RPS DC input |
| Power supply | AC/DC, internal, 450 W |
| Supported voltage range | 100–240 V AC |
| Max. energy consumption | 50 W (without PoE output) |
| Total available PoE | 400W |
| Max. PoE wattage per port according to PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44-57V PoE+: 50-57V |
| LCM display | (1) 1.3 inch touch screen |
| button | Factory settings reset |
| operating temperatur | -5 to 40 °C (23 to 104 °F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Location Speed/Link Native VLAN/Network |
| SFP+ | Location Speed/Link Native VLAN/Network |
| LED | |
| system | status |
| RPS | status |
