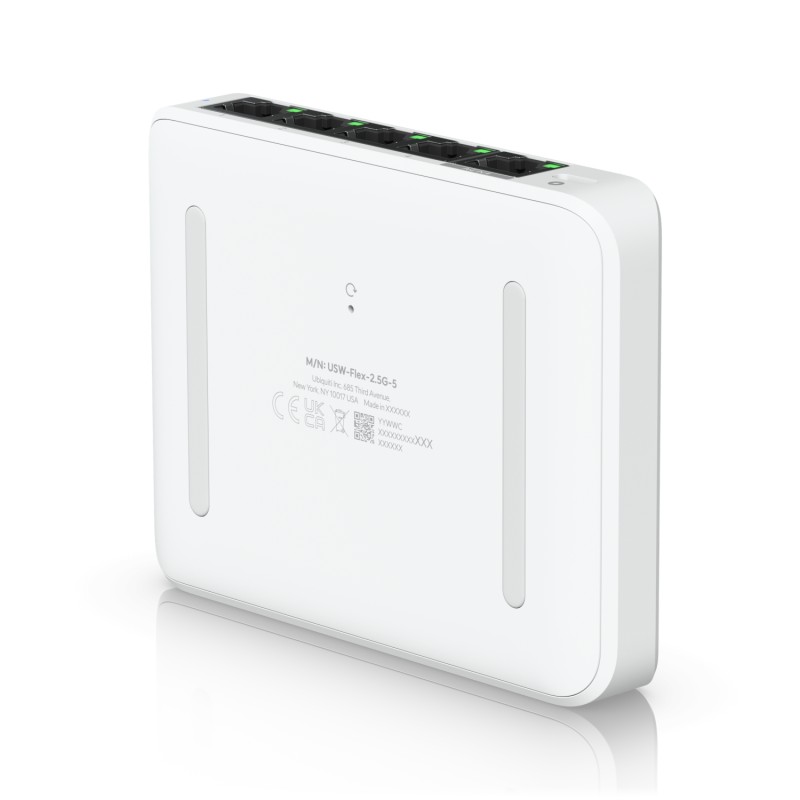

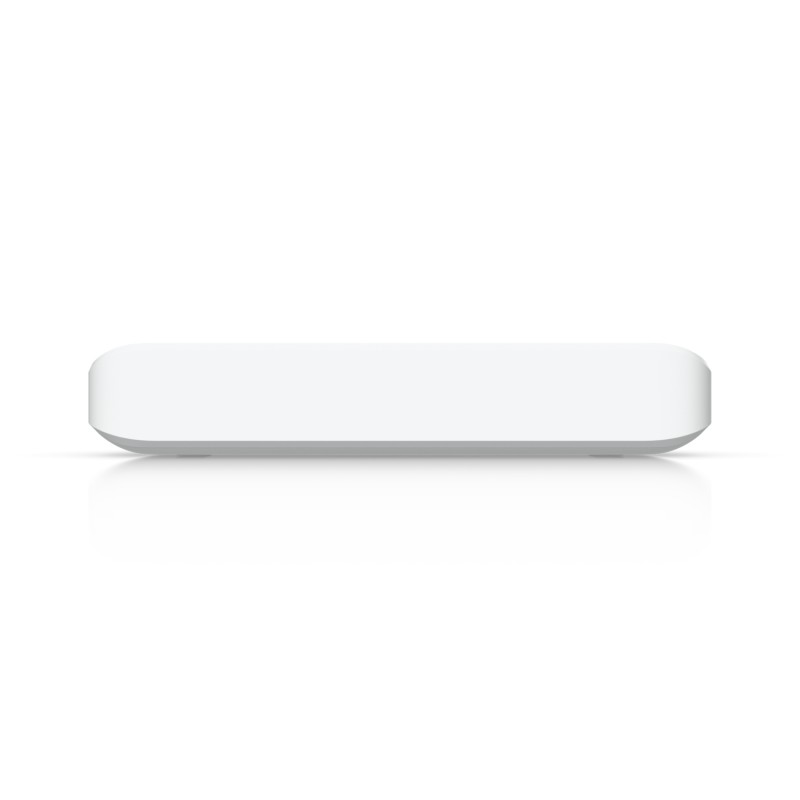

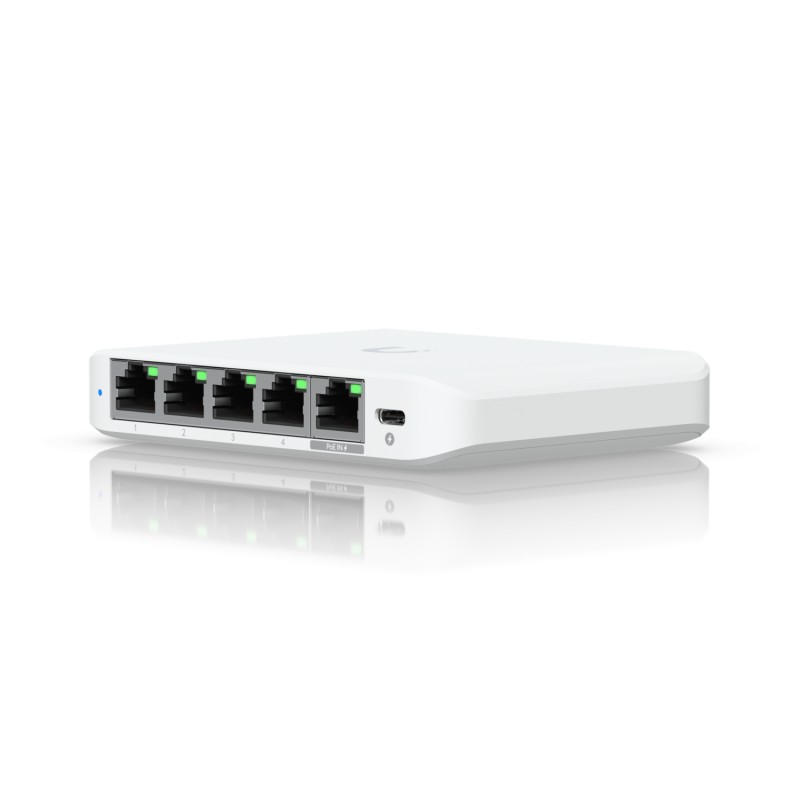

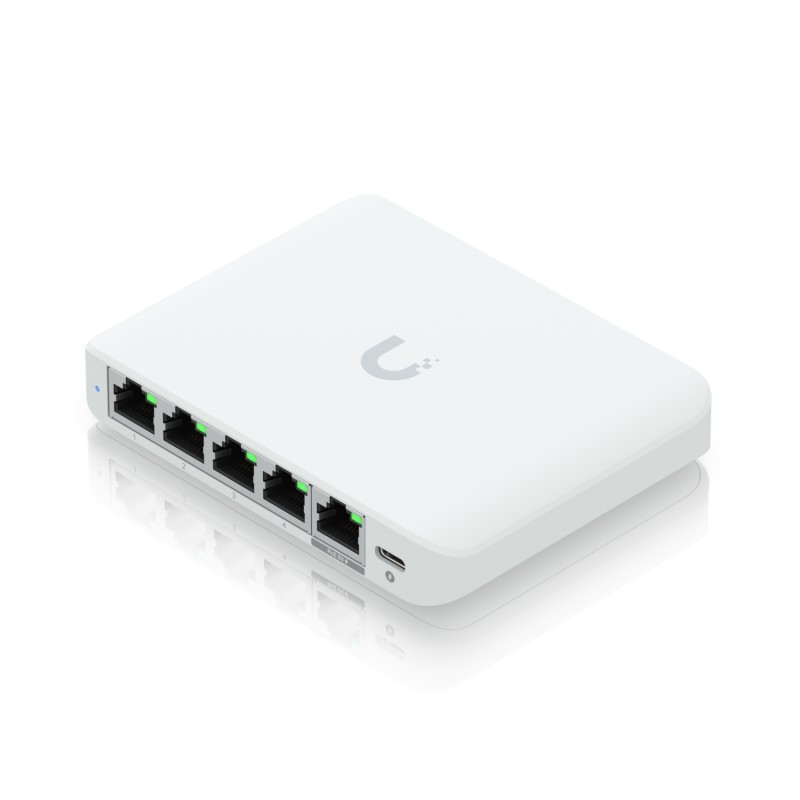

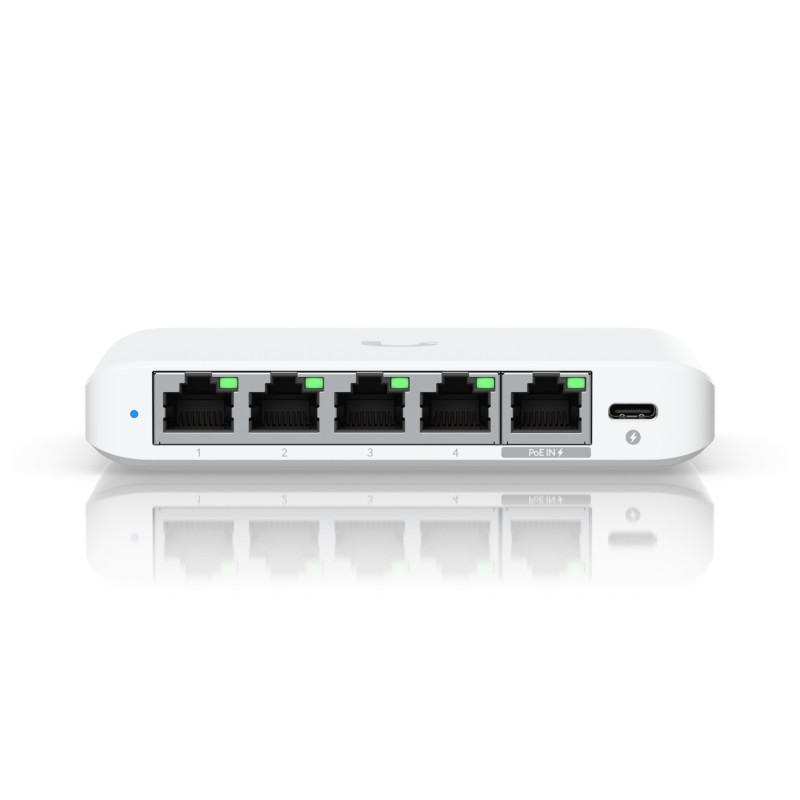

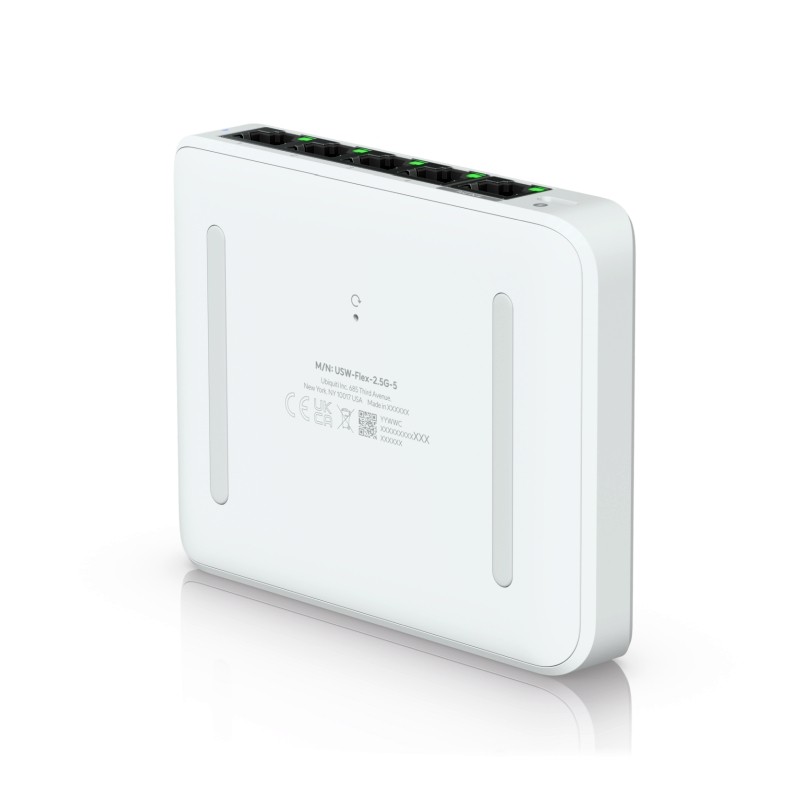

Ubiquiti Switch smart managed Layer2 5 Port &bull 5x GbE &bull 1x PoE at In &bull Desktop &bull Fanless &bull UniFi &bull etc.
Ubiquiti Switch smart managed Layer2 5 Port &bull 5x GbE &bull 1x PoE at In &bull Desktop &bull Fanless &bull UniFi &bull etc.
Compact 5-port 2.5G switch that can be powered by PoE or a USB-C adapter.
(4) 2.5 GbE ports
(1) 2.5 GbE PoE input port for power supply
Optional power supply via the included 5V, 1A USB-C adapter
Note: The EU version only comes with an EU power plug.
TECHNICAL DATA:
| Mechanically | |
|---|---|
| Mass | 117.1 x 90 x 21.2mm (4.6 x 3.5 x 0.8 inches) |
| Weight | 206 g (7.3 oz) |
| housing material | polycarbonate |
| Hardware | |
| management interface | Ethernet In-Band |
| network interface | (5) 1/2.5 GbE RJ45 ports |
| Total non-blocking throughput | 12.5 Gbit/s |
| switching capacity | 25 Gbit/s |
| forwarding tariff | 18.6 Mpps |
| performance method | (1) Power supply, 5 V DC, 1 A (1) PoE (PairA 1, 2+ 3, 6-)(PairB 4, 5+ 7, 8-) |
| power supply | External AC/DC adapter UniFi PoE switch |
| Supported voltage range | AC/DC input: 5 V DC PoE input: 44–57 V DC |
| Max. power consumption | AC/DC input: 5 W PoE input: 6.4 W |
| button | factory reset |
| ambient temperature during operation | -20 to 45 °C (-4 to 113 °F) |
| humidity during operation | 10 to 90% non-condensing |
| certifications | CE, FCC, IC |
| switching functions | |
| Layer 2 functions | STP / RSTP with priorities and deactivation at port level port isolation storm control port mirroring Multicast/broadcast rate limiting flow control jumbo frames egress rate limit |
| Layer 3 functions | – |
| LEDs | |
| system | (1) Blue/white: Power supply white flashing: booting in progress Flashing blue: Firmware update Solid white: Factory settings Device waiting for adoption Solid blue: Device has been adopted |
| Ethernet | (5) Green: Link/Activity |
| application requirements | |
| UniFi network | version 8.4.62 and higher |
