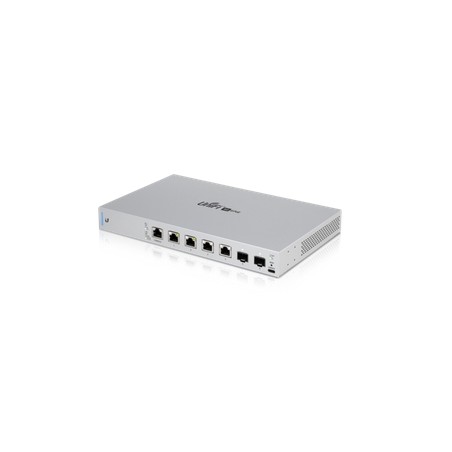

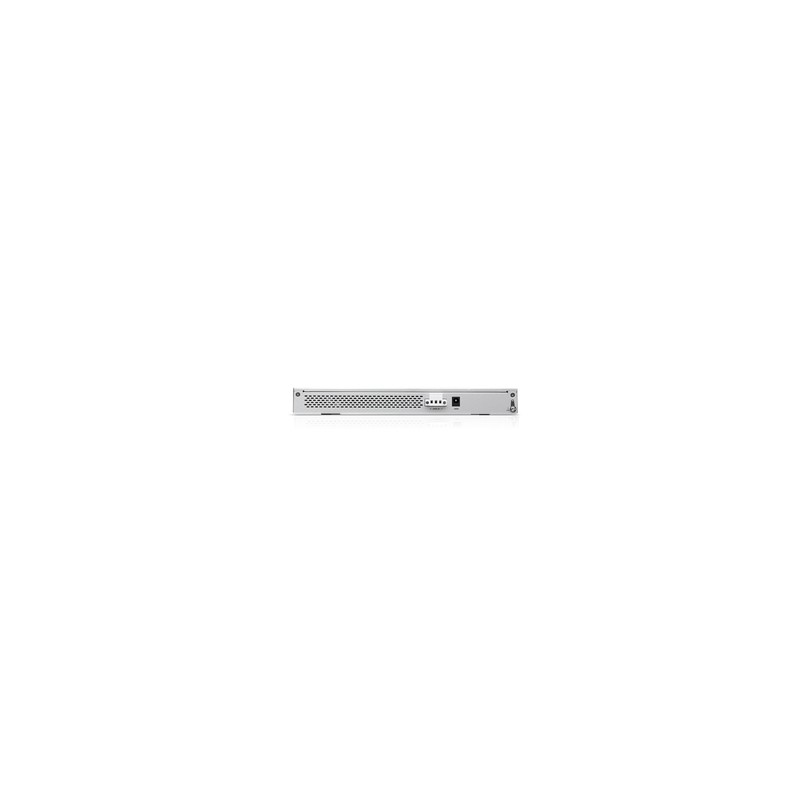

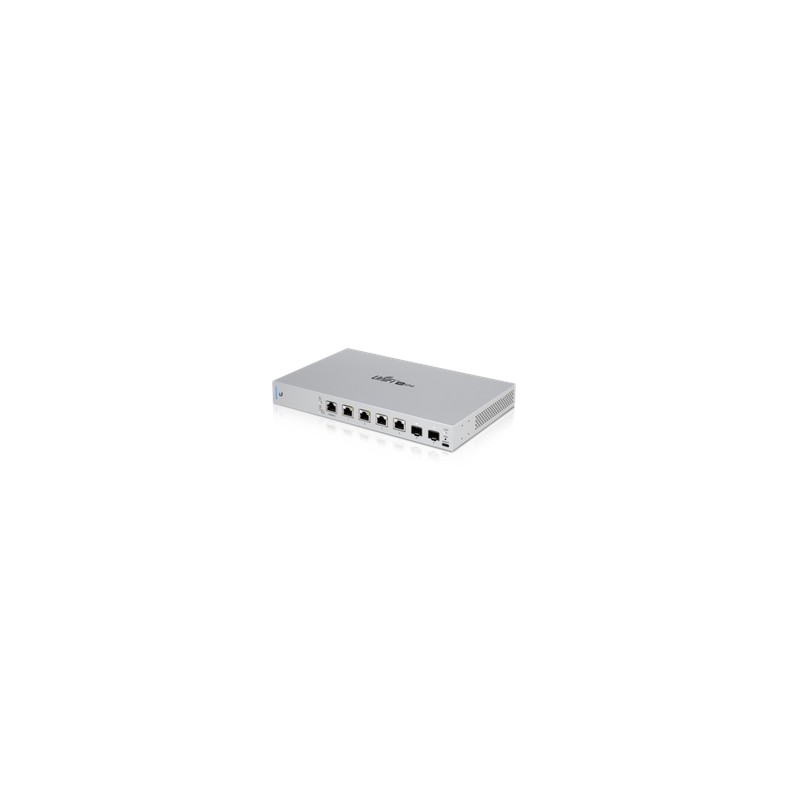

Ubiquiti UniFi Switch / 4 Port / 60W per Port / PoE++ / 2 SFP+ / US-XG-6POE
Ubiquiti UniFi Switch / 4 Port / 60W per Port / PoE++ / 2 SFP+ / US-XG-6POE
Ubiquiti UniFi Switch / 4 Port / 60W per Port / PoE++ / 2 SFP+ / US-XG-6POE
A Layer 3 PoE switch with (4) 10GbE, PoE++ RJ45 ports and (2) 10G SFP+ ports.
(4) 1/2.5/5/10GbE PoE++ ports
(2) 10G SFP+ ports
Total 170W PoE availability
Layer 3 switching
Wired DC emergency power supply
Technical specifications
| Mechanically | |
|---|---|
| Dimensions | 165 x 268.1 x 31.8mm (6.5 x 10.6 x 1.3") |
| Weight | 1.3 kg (2.9 lbs) |
| Housing material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type-C port out-of-band |
| Network interface | (4) 1/2.5/5/10GbE RJ45 ports (2) 1/10G SFP+ ports |
| PoE interface | (4) PoE++ (Pair A 1, 2+ 3, 6-) (Pair B 4, 5+ 7, 8-) |
| Power method | 54 V DC, 3.88 A power supply (included) . DC input with terminal block |
| Power supply | External AC/DC adapter (included (included in delivery) DC power source |
| Supported voltage range | 44–57 V DC |
| Max. energy consumption | 40 W (without PoE output.) |
| Total available PoE | 170W |
| Max. PoE wattage per port according to PSE | PoE++: 60W |
| Voltage range PoE mode | PoE: 44-57V PoE+/PoE++: 50-57V |
| ESD/EMP protection | Air: ± 18 kV, Contact: ± 12 kV |
| operating temperatur | -5 to 45 °C (23 to 113 °F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LED | |
| system | status |
| Ethernet | PoE Connection/Speed/Activity |
| SFP+ | Link/Activity |
