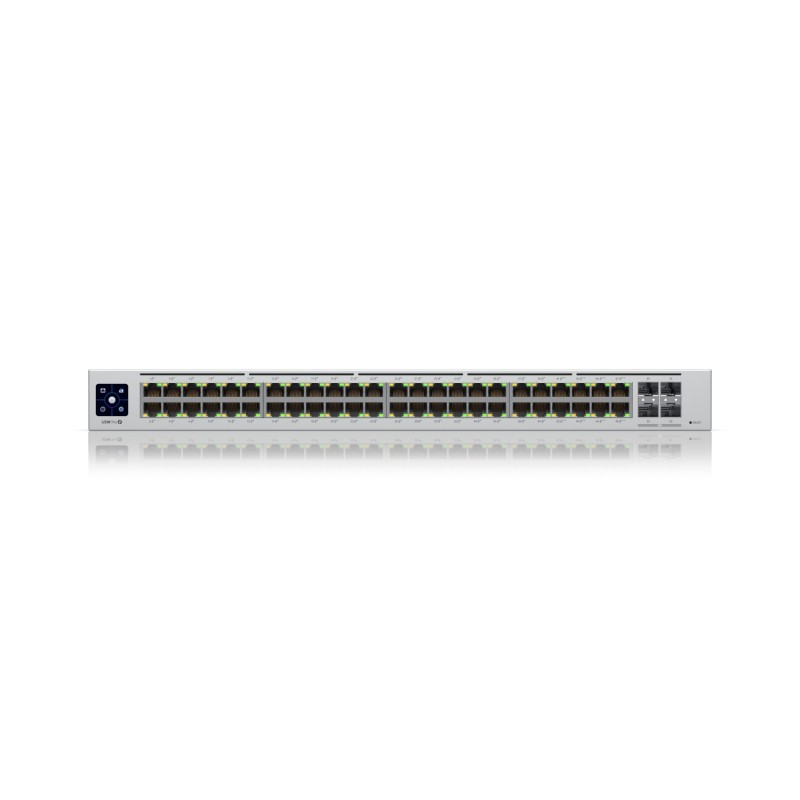

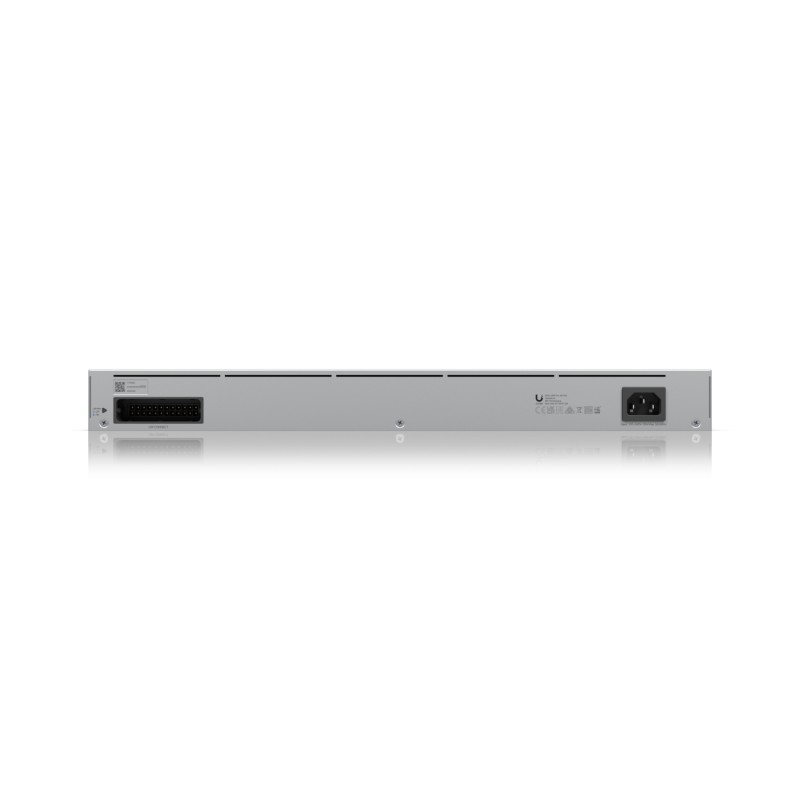

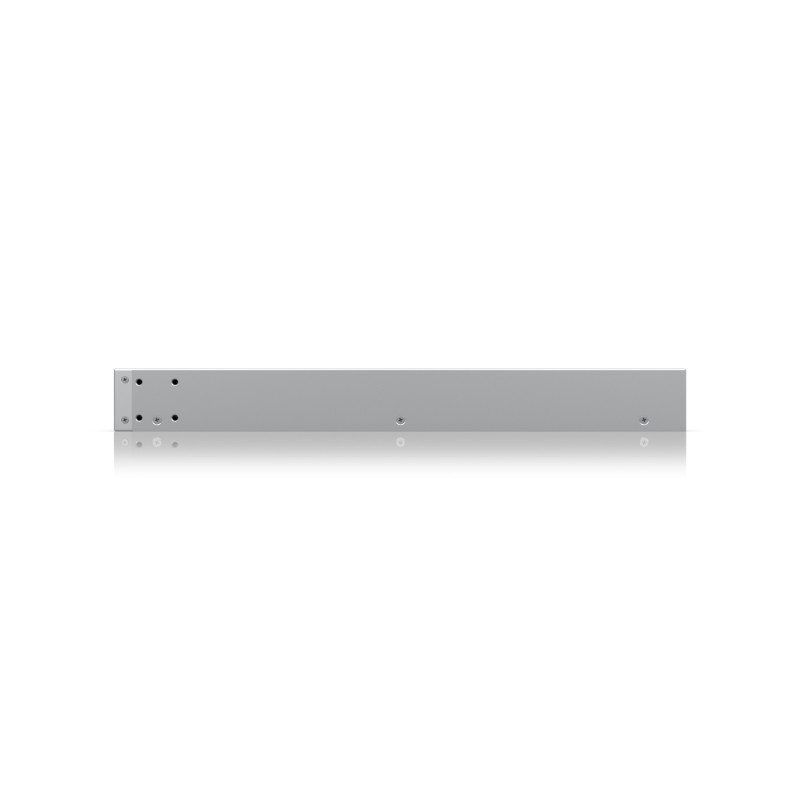

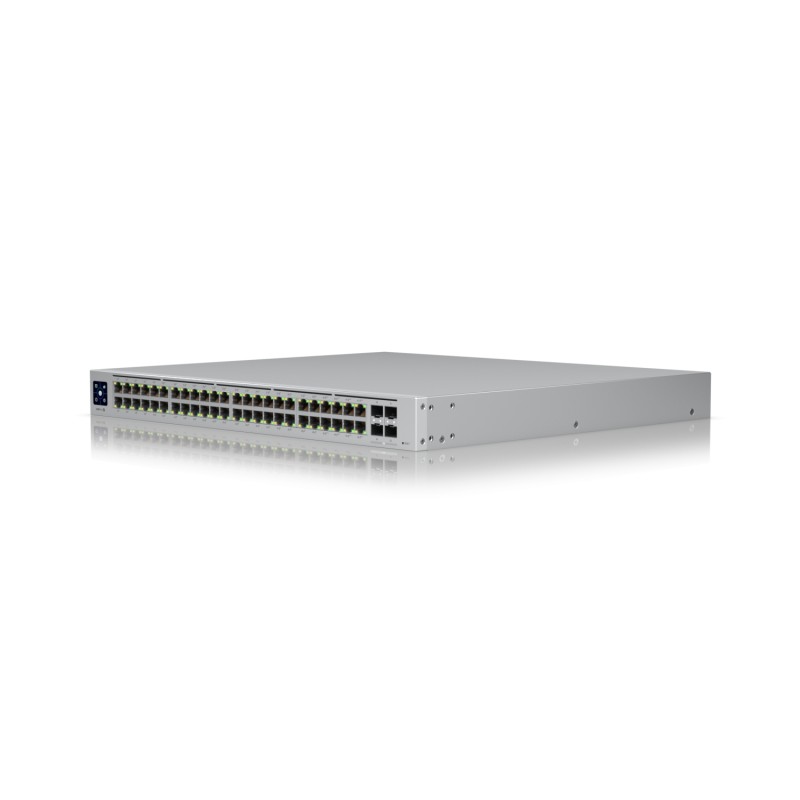

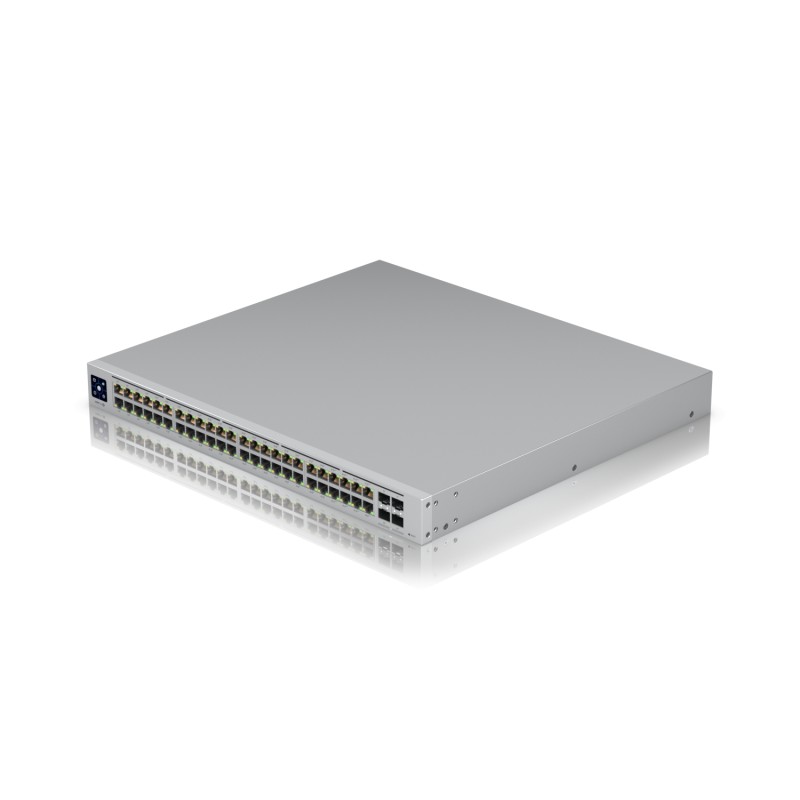

Ubiquiti UniFi Switch Gen2 / 48 Port / 600W / PoE++ / 4 SFP+ / USW-Pro-48-POE
Article Nr 180735 EAN 8178820276560
Ubiquiti UniFi Switch Gen2 / 48 Port / 600W / PoE++ / 4 SFP+ / USW-Pro-48-POE
Ubiquiti UniFi Switch Gen2 / 48 Port / 600W / PoE++ / 4 SFP+ / USW-Pro-48-POE
A 48-port Layer 3 switch with high-performance PoE++ output.
(40) GbE PoE+, (8) GbE PoE++ ports
(4) 10G SFP+ ports
Total 600W PoE availability
DC emergency power supply ready
Layer 3 switching
Almost silent cooling
Technical specifications
Mechanically | |
---|---|
Dimensions | 442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7") |
Weight | Without mounting brackets: 6.2 kg (13.8 lb) With mounting brackets: 6.3 kg (14 lb) |
Housing material | SGCC steel |
Hardware | |
Management interface | Ethernet In-Band |
Network interface | (48) GbE RJ45 ports (4) 1/10G SFP+ ports |
PoE interface | (40) PoE/PoE+ (pins 1, 2+ 3, 6-) (8) 60 W PoE++ PoE/PoE+ (Pins 1, 2+ 3, 6-) / PoE++ (Pair A 1, 2+ 3, 6-) (Pair B 4, 5+ 7, 8-) |
Total non-blocking throughput | 88 Gbps |
Switching capacity | 176 Gbps |
Forwarding rate | 130,944 Mpps |
Power method | Universal input, 100-240 V AC, 50/60 Hz USP RPS DC input, 52 V DC, 11.54 A / 11.5 V DC, 5.22 A |
Power supply | AC/DC, internal, 660 W |
Supported voltage range | 100–240 V AC |
Max. energy consumption | 60 W (without PoE output) |
Total available PoE | 600W |
Max. PoE wattage per port according to PSE | PoE+: 32W PoE++: 64W |
Voltage range PoE mode | PoE: 44-57V PoE+: 50-57V |
ESD/EMP protection | Air: ± 16 kV, Contact: ± 12 kV |
LCM display | (1) 1.3-inch touchscreen |
button | Factory settings reset |
Shock and vibration | ETSI300-019-1.4 standard |
operating temperatur | -5 to 40 °C (23 to 104 °F) |
Operating humidity | 10 to 90% non-condensing |
Certifications | CE, FCC, IC |
LED | |
system | status |
Ethernet | PoE Speed/Link/Activity |
SFP+ | Link/Activity |
RPS | status |
Application requirements | |
UniFi Network | Version 5.10.5 and higher |
