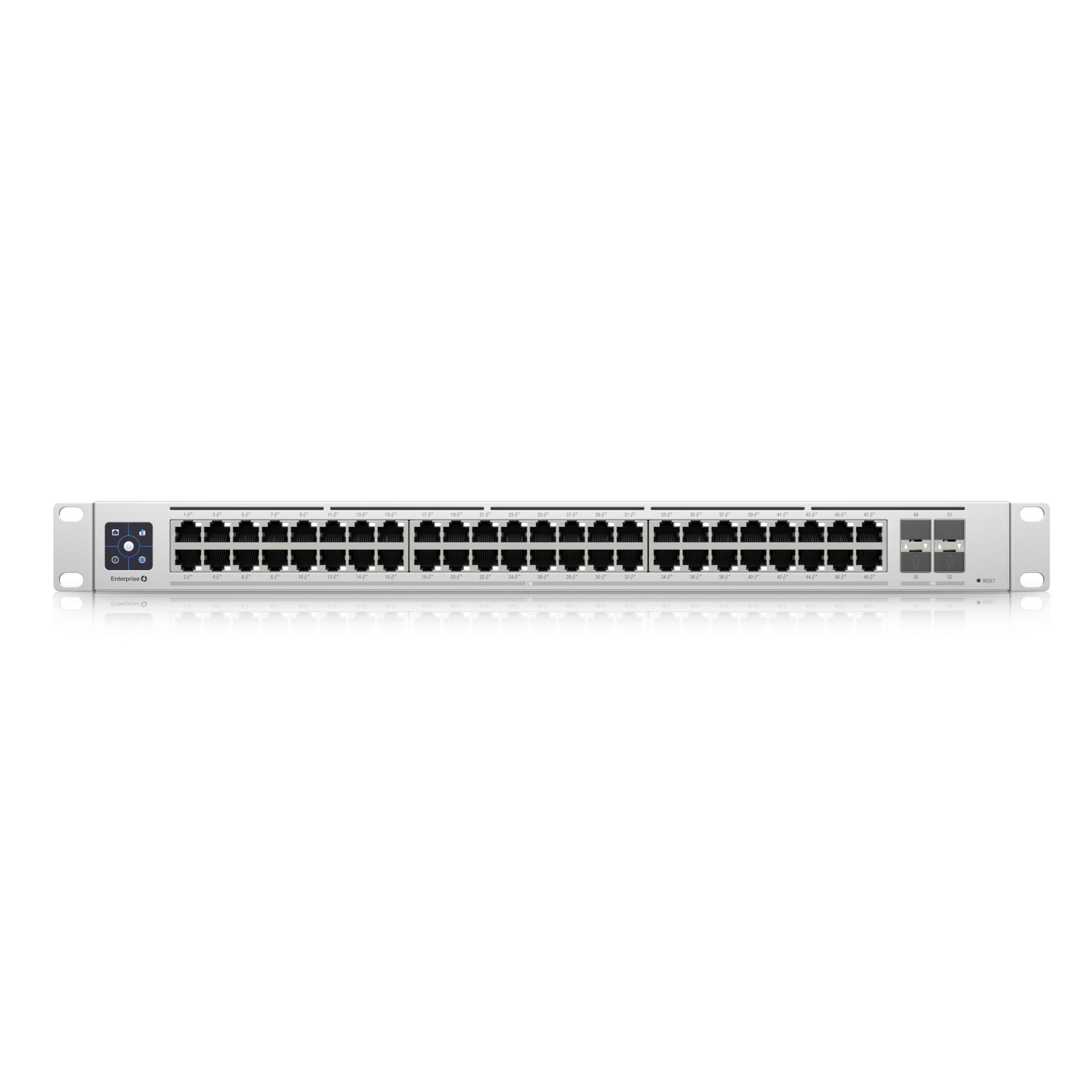

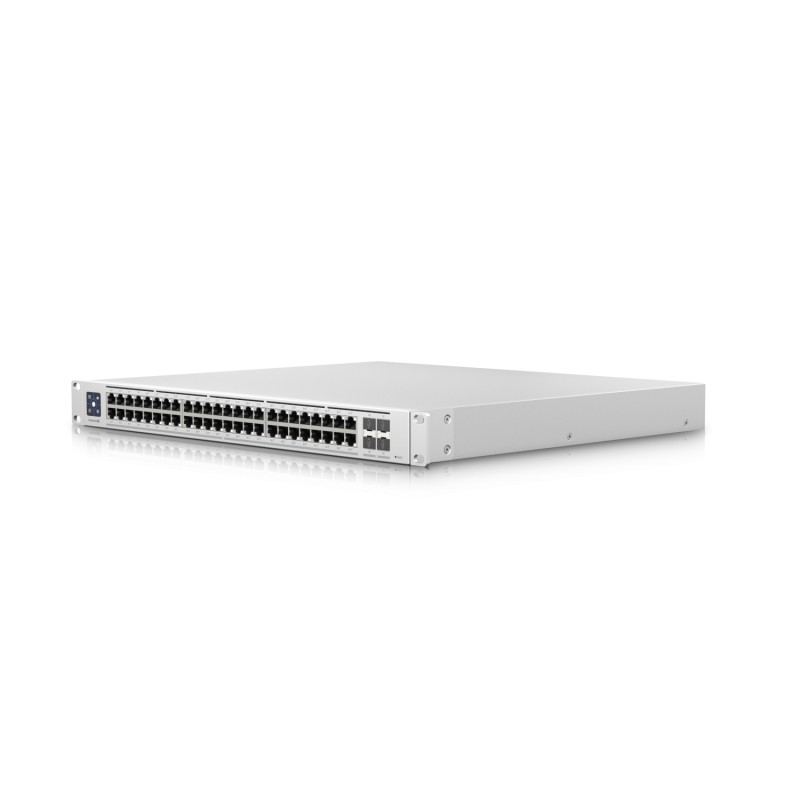

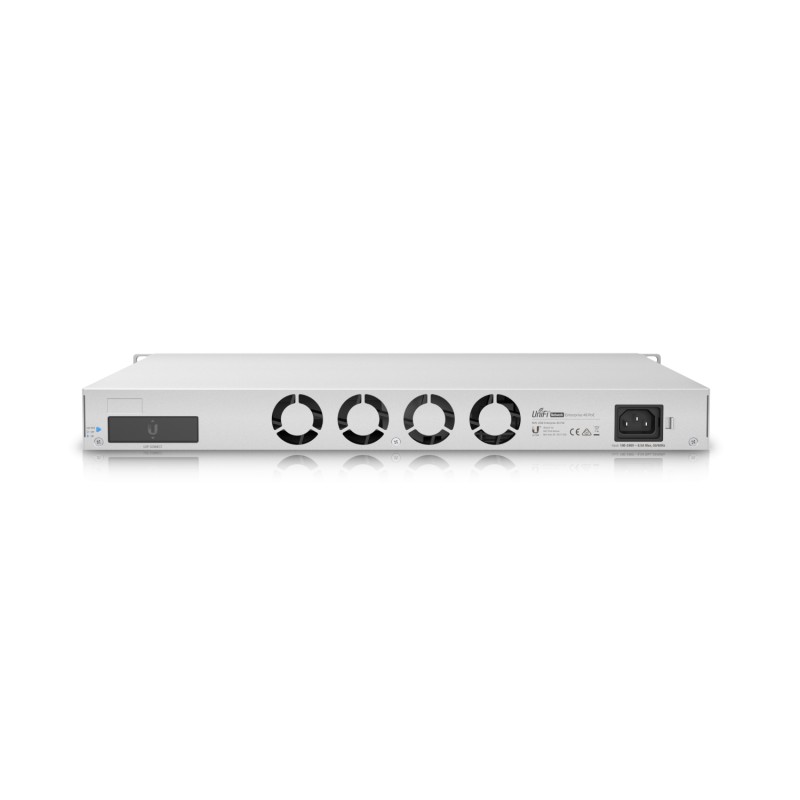

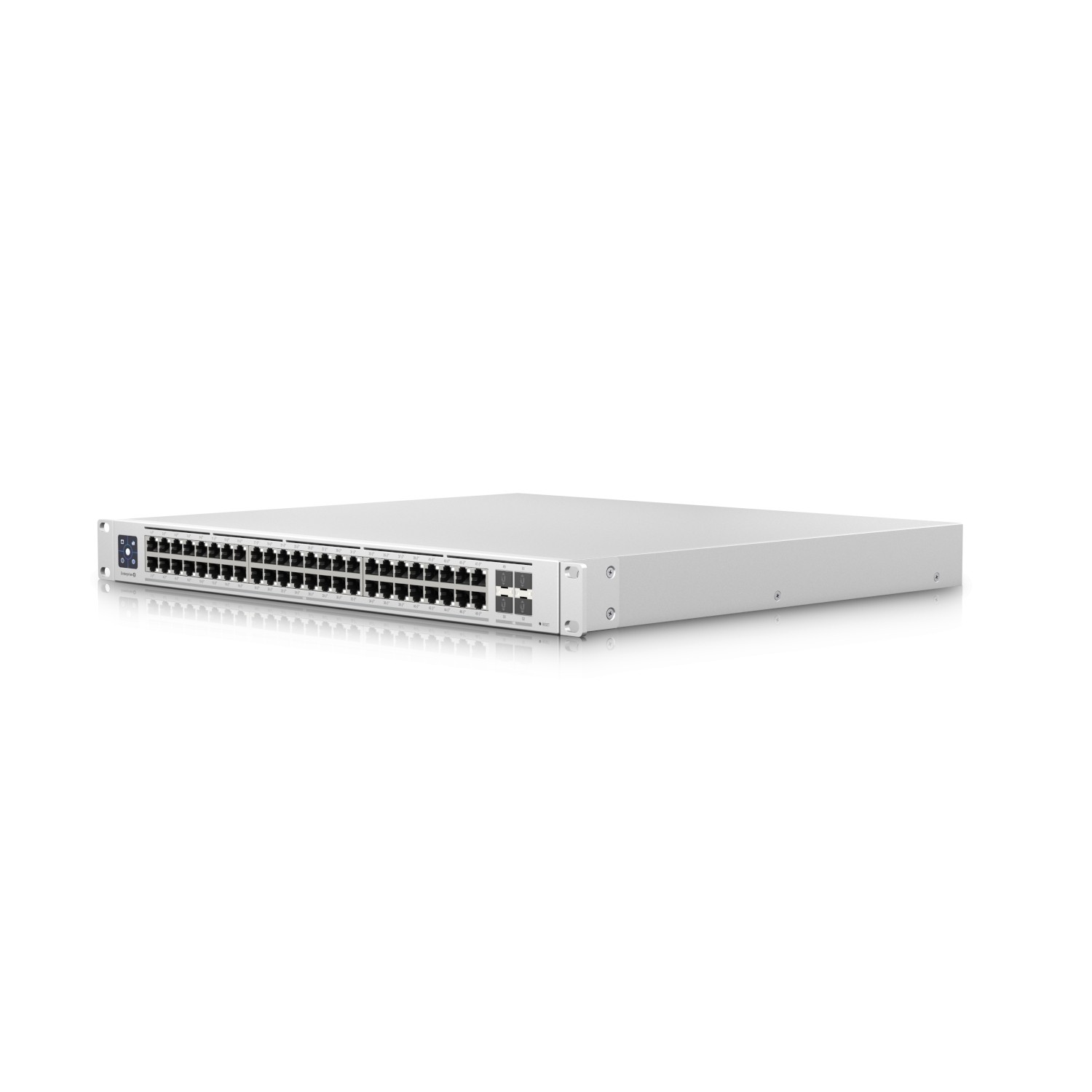

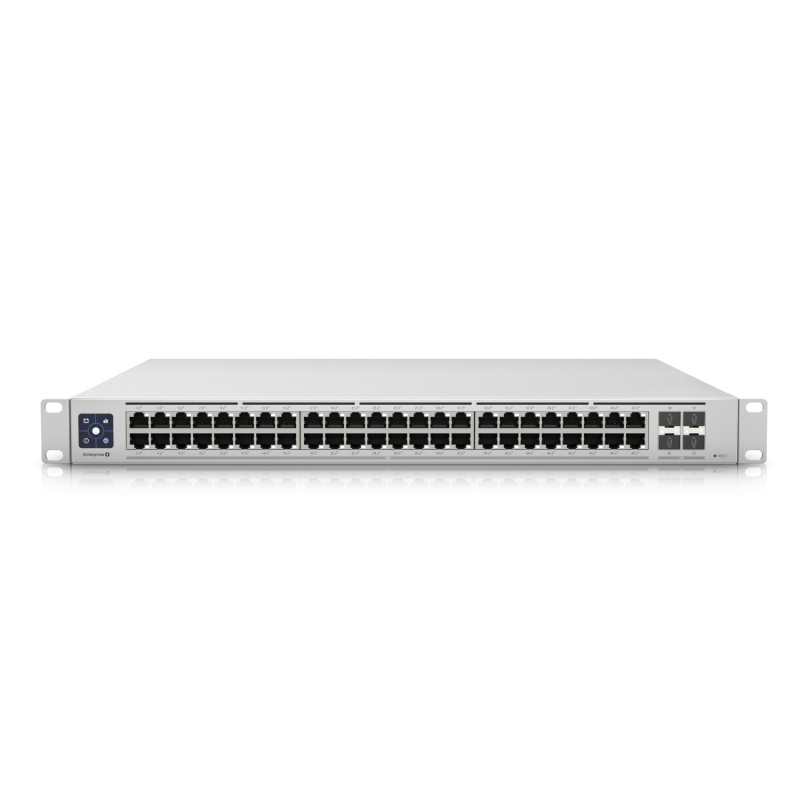

Ubiquiti Unifi Switch Enterprise 48 POE / 720W / 48x 2,5G RJ45 / 4x 10G SFP+ / Layer 3 / USW-Enterprise-48-POE
Ubiquiti Unifi Switch Enterprise 48 POE / 720W / 48x 2,5G RJ45 / 4x 10G SFP+ / Layer 3 / USW-Enterprise-48-POE
Ubiquiti Unifi Switch Enterprise 48 POE / 720W / 48x 2,5G RJ45 / 4x 10G SFP+ / Layer 3 / USW-Enterprise-48-POE
A 48-port Layer 3 switch with 2.5GbE PoE+ output.
(48) 2.5GbE PoE+ ports
(4) 10G SFP+ ports
Total 720W PoE availability
Ready for DC backup power
Layer 3 switching
Technical specifications
| Mechanically | |
|---|---|
| Dimensions | 442 x 44 x 400 mm (17.4 x 1.7 x 15.7") |
| Weight | Without mounting brackets: 6.2 kg (13.67 lb) With mounting brackets: 6.3 kg (13.89 lb) |
| Housing material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Network interface | (48) 2.5GbE RJ45 ports (4) 1/10G SFP+ ports |
| PoE interface | (48) PoE/PoE+ (pins 1, 2+ 3, 6-) |
| Total non-blocking throughput | 160 Gbps |
| Switching capacity | 320 Gbps |
| Forwarding rate | 238,095 Mpps |
| Power method | (1) Universal AC input, 100-240 VAC, 10 A max., 50/60 Hz (1) USP RPS DC input, 52 VDC, 13.84 A 11.5 VDC, 13 A |
| Power supply | AC/DC, internal, 100–240 V, 10 A max. |
| Supported voltage range | 100–240 V AC |
| Max. energy consumption | 150 W (without PoE output) |
| Total available PoE | 720W |
| Max. PoE wattage per port according to PSE | PoE+: 34.2W |
| Voltage range PoE mode | PoE: 44-57V PoE+: 50-57V |
| Services | SMB Layer 3 PoE GbE Switch |
| ESD/EMP protection | Air: ± 16 kV, Contact: ± 12 kV |
| LCM display | (1) 1.3-inch color touchscreen |
| button | Factory settings reset |
| operating temperatur | -5 to 40 °C (23 to 104 °F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| LED | |
| system | status |
| Ethernet | Link/Activity |
| SFP+ | Link/Activity |
| Application requirements | |
| UniFi Network | Version 6.2.26 and higher |
