ALLNET Meeting Room RGB LED Tablet 10 inch RK3288 Android 10 and NFC
ALLNET Meeting Room RGB LED Tablet 10 inch RK3288 Android 10 and NFC
ALLNET Meeting Room RGB LED Tablet 10 inch RK3288 Android 10 and NFC
ALLNET Meeting Room LED Tablet 10 inch RK3288 NFC/RFID (NXP Mifare, Desfire)

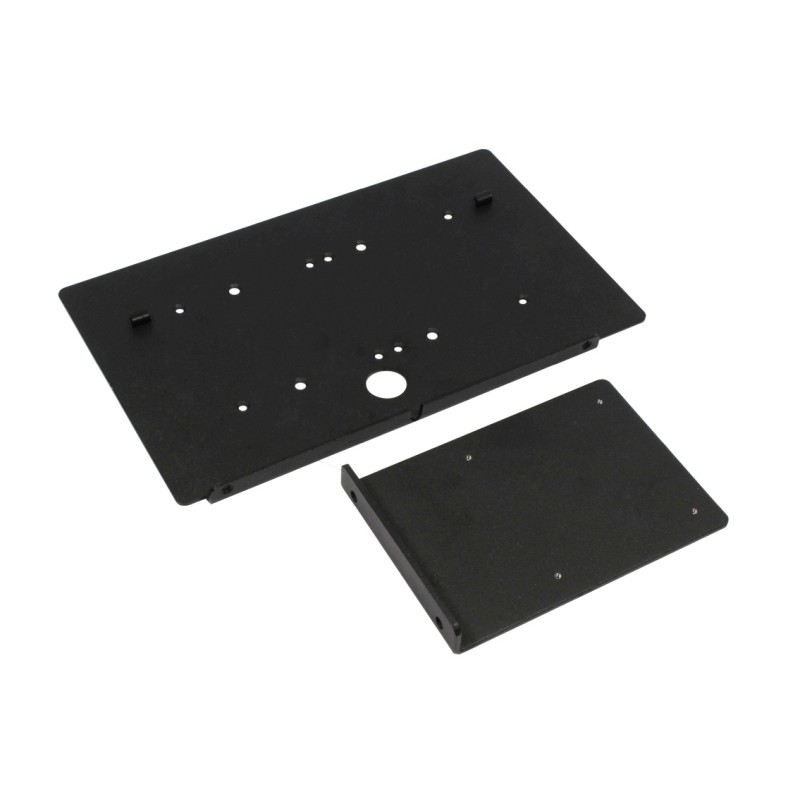

Includes power supply and integrated wall bracket with anti-theft protection. RGB LED for displaying e.g. warning signals, occupancy of meeting rooms, home automation with API.
NFC also makes it easy to implement time recording terminals or information terminals with ID, such as in multi-unit residential complexes.
Currently tested Android time terminal software:
| PDS time | works, but config file must be imported manually, camera is not addressed |
| AIDA time | According to the manufacturer, works with our article numbers 174715/174716/174717/174888 and 182897 |
We are happy to provide the API/SDK for NFC/RFID and LED upon request.
- Full NFC Forum compliance with small form factor antenna
- Embedded NFC firmware that provides all NFC protocols as a pre-integrated feature
- Direct connection to the main host or microcontroller, through physical I2C bus and NCI
protocol
- Ultra-low power consumption in polling loop mode
- Highly efficient integrated power management unit (PMU)
- supported RF protocols
– NFCIP-1, NFCIP-2 protocol (see [8] and [11])
– ISO/IEC 14443A, ISO/IEC 14443B PICC, NFC Forum T4T modes via host interface (see [3])
– NFC Forum T3T via host interface
– ISO/IEC 14443A, ISO/IEC 14443B PCD designed according to NFC Forum digital protocol T4T platform and ISO-DEP
– FeliCa PCD mode
– MIFARE PCD encryption mechanism (MIFARE Classic 1K/4K)
– NFC Forum tag 1 to 5 (MIFARE Ultralight, Jewel, Open FeliCa tag, MIFARE DESFire) (see [1])
– ISO/IEC 15693/ICODE VCD mode (see [9])
For further information please refer to the NFC data sheet.
| system | CPU | RK3288,Quad-core cortex A17,1.6G | ||
| R.A.M. | 2GB | |||
| Internal memory | 16 GB | |||
| Operating system | Android8.1/10 | |||
Display | Touch screen | 10-point capacitive touch | ||
| Panel | 10.1"LCD panel | |||
| resolution | 1280*800 | |||
| Active area | 217.4(H)x136.4mm(V) | |||
| Display mode | Normally black,IPS | |||
| Viewing angle | 85/85/85/85(L/R/U/D) | |||
| Contrast ratio | 800 | |||
| Luminance | 280cd/m2 | |||
| Aspect Ratio | 16:10 | |||
| Network | WiFi | 2.4/5GHz 802.11a/b/g/n | ||
| Ethernet | 100M/1000M ethernet | |||
| Bluetooth | Bluetooth4.0 | |||
| interface | Card slot | SD card | ||
| USB | USB Host | |||
| MicroUSB | Micro USB OTG | |||
| USB | USB for serial | |||
| RJ45 with POE | RJ45 | |||
| POU | IEEE802.3af/at | |||
| Power jack | DC power input | |||
| Earphone | 3.5mm earphone | |||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | ||
| Audio format | MP3/WMA/AAC etc. | |||
| photo | png, etc. | |||
| Other | VESA | 204.5mm | ||
| NFC | NFC with 13.56M frequency )/RFID NXP Desfire | |||
| Camera | 2.0MP,Front camera | |||
| Microphone | Microphone | |||
| Speaker | 2*1.5W | |||
| LED light bar | LED light bar with RGB and mixed color | |||
| Working temp | 0--40degree | |||
| Certificates | CE/FCC/RoHS | |||
| Language | Multi-language | |||
| Accessories | adapter | Adapter,12V/1.5A | ||
| User manual | yes | |||
| Unit (without packaging) | Giftbox (With Packaging) | Carton 5pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 275.36mm | 170.36mm | 25mm | 390mm | 220mm | 68mm | 405mm | 363mm | 240mm |
| Net(kg) | 0.74KG | Net(kg) | 2.3KG | |||||
Details about ALLNET Meeting Room RGB LED Tablet 10 inch RK3288 Android 10 and NFC
Manufacurer:
MT10RK3288A10PoENFC
Weight:
MT10RK3288A10PoENFC
