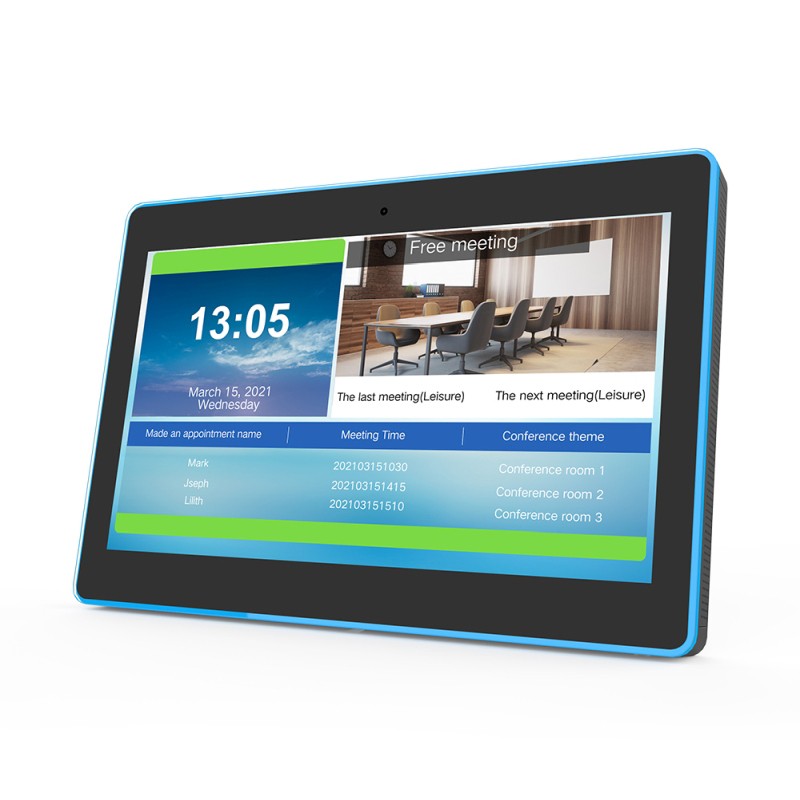

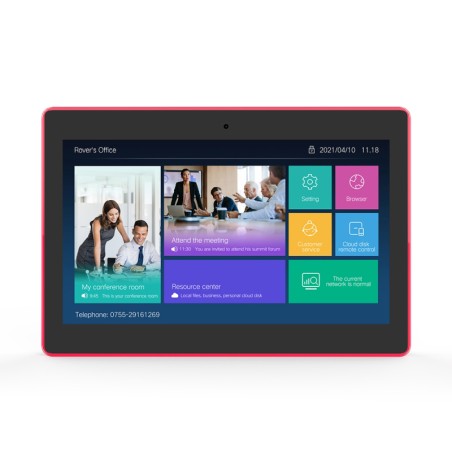

ALLNET Meeting Room RGB LED Tablet 13 inch RK3399 Android 10 and NFC/RFID black
ALLNET Meeting Room RGB LED Tablet 13 inch RK3399 Android 10 and NFC/RFID black
ALLNET Meeting Room RGB LED Tablet 13 inch RK3399 Android 10 and NFC/RFID black
ALLNET Meeting Room LED Tablet 13 inch RK3399 Android 10 and RFID (NXP Mifare, Desfire)

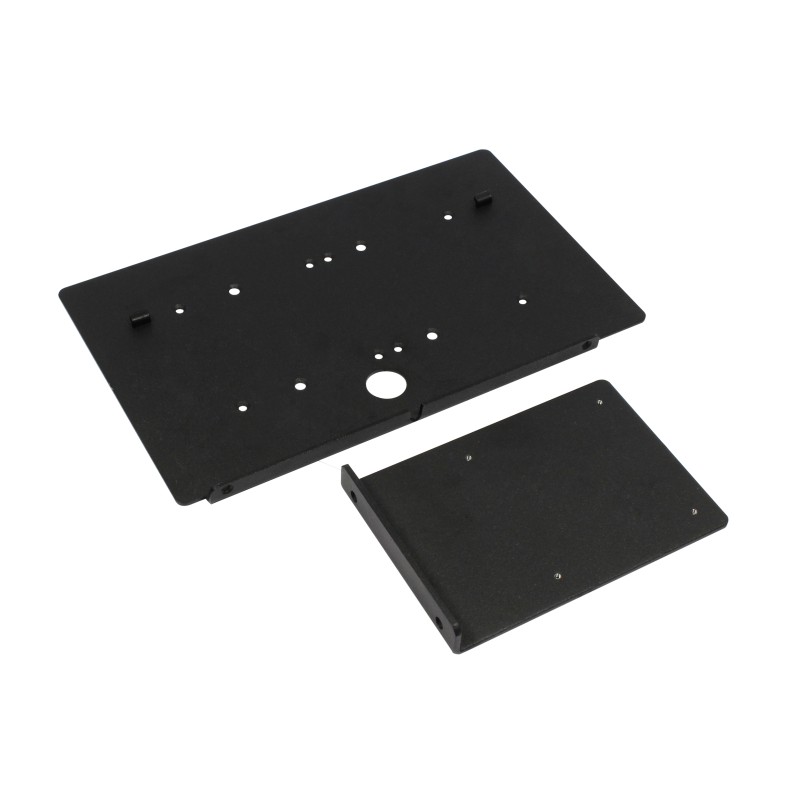

Includes power supply and integrated snap-in wall mount with anti-theft protection. RGB LED for displaying warning signals, occupancy of meeting rooms, etc.
NFC also makes it easy to implement time recording terminals or information terminals with ID, such as in multi-unit residential complexes.
Currently tested Android time terminal software:
| PDS time | works, but config file must be imported manually, camera is not addressed |
| AIDA time | According to the manufacturer, works with our article numbers 174715/174716/174717/174888 and 182897 |
We are happy to provide the API/SDK for NFC/RFID and LED upon request.
Specifications NFC: NXP PN7150
PN7150 is a full-featured NFC controller solution with integrated firmware and NCI interface for contactless communication at 13.56 MHz. It is compatible with the requirements of the NFC Forum.
Developed based on lessons learned from previous generations of NXP NFC devices, PN7150 is the ideal solution for quickly integrating NFC technology into any application, especially those running on O/S environments such as Linux and Android.
- Full NFC Forum compliance with small form factor antenna
- Embedded NFC firmware that provides all NFC protocols as a pre-integrated feature
- Direct connection to the main host or microcontroller, through physical I2C bus and NCI
protocol
- Ultra-low power consumption in polling loop mode
- Highly efficient integrated power management unit (PMU)
- supported RF protocols
NFCIP-1, NFCIP-2 protocol (see [8] and [11])
ISO/IEC 14443A, ISO/IEC 14443B PICC, NFC Forum T4T modes via host interface (see [3])
NFC Forum T3T via host interface
ISO/IEC 14443A, ISO/IEC 14443B PCD designed according to NFC Forum digital protocol T4T platform and ISO-DEP
FeliCa PCD mode
MIFARE PCD encryption mechanism (MIFARE Classic 1K/4K)
NFC Forum tag 1 to 5 (MIFARE Ultralight, Jewel, Open FeliCa tag, MIFARE DESFire) (see [1])
ISO/IEC 15693/ICODE VCD mode (see [9])
For further information please refer to the NFC data sheet.
| system | CPU | RK3399 | ||
| R.A.M. | 2GB (4GB from Batch 2023) | |||
| Internal memory | 16 GB | |||
| Operating system | Android10 | |||
Display | Touch screen | 10-point capacitive touch | ||
| Panel | 13" LCD panel | |||
| resolution | 1920x1080 | |||
| Active area | 293(H)x164mm(W) | |||
| Display mode | Normally black,IPS | |||
| Viewing angle | 85/85/85/85(L/R/U/D) | |||
| Contrast ratio | 800 | |||
| Luminance | 280cd/m2 | |||
| Aspect Ratio | 16:9 | |||
| Network | WiFi | 2.4/5GHz 802.11a/b/g/n | ||
| Ethernet | 100M/1000M ethernet | |||
| Bluetooth | Bluetooth4.0 | |||

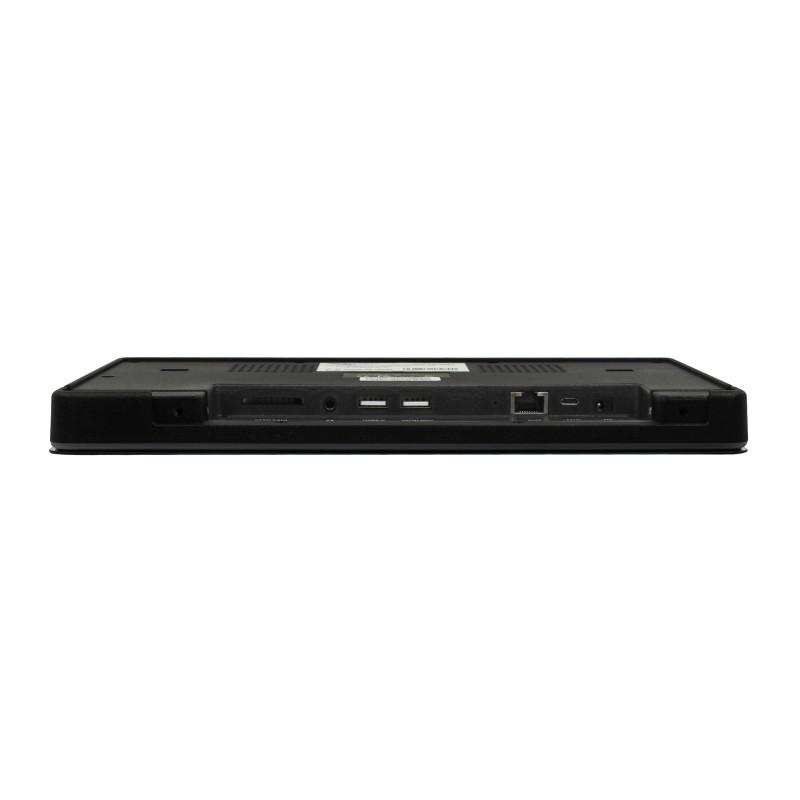

| interface | Card slot | SD card | ||
| USB | USB Host | |||
| MicroUSB | Micro USB OTG | |||
| USB | USB for serial | |||
| RJ45 with POE | RJ45 | |||
| POU | IEEE802.3at | |||
| Power jack | DC power input | |||
| Earphone | 3.5mm earphone | |||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | ||
| Audio format | MP3/WMA/AAC etc. | |||
| photo | png, etc. | |||

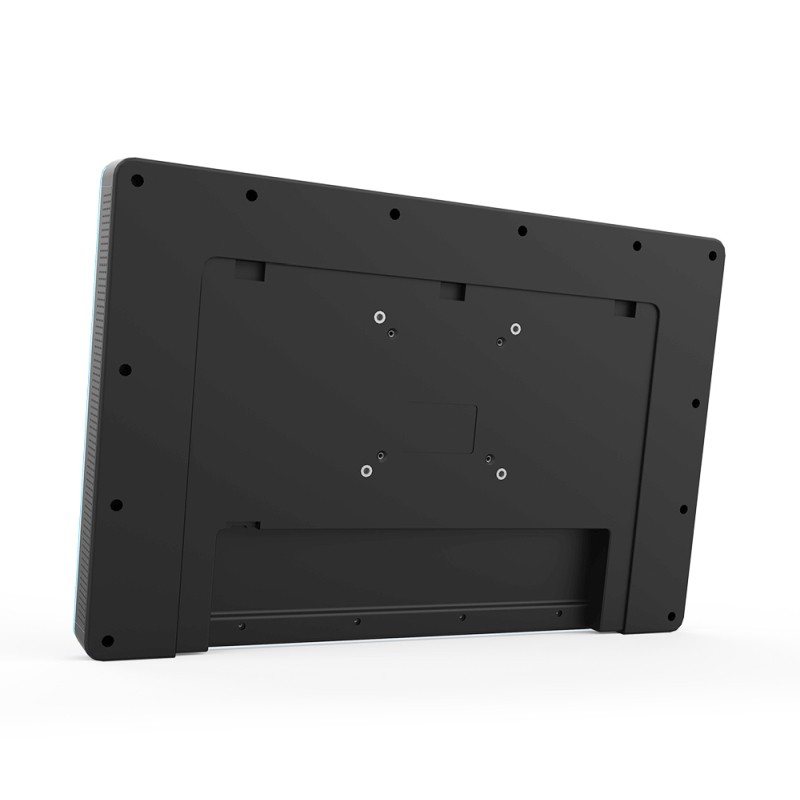

| Other | VESA | 204.5mm | ||
| NFC | NFC with 13.56M frequency )/RFID NXP Desfire | |||
| Camera | 2.0M/P,Front camera | |||
| Microphone | Microphone | |||
| Speaker | 2*1.5W | |||
| LED light bar | LED light bar with RGB and mixed color | |||
| Working temp | 0--40degree | |||
| Certificates | CE/FCC/RoHS | |||
| Language | Multi-language | |||
| Accessories | adapter | Adapter,12V/2.5A | ||
| User manual | yes | |||
Details about ALLNET Meeting Room RGB LED Tablet 13 inch RK3399 Android 10 and NFC/RFID black
Manufacurer:
MT13RK3399A10PoENFC
Weight:
MT13RK3399A10PoENFC
