ALL in One industrial PC
- 15.0" Intel® Whiskey Lake Core™ i3 8145U
- Industrial display, capacitive multipoint touchscreen
- 2*SO-DIMM DDR4 8GB (up to 32GB)
- 4*USB3.0/2*RS232
- 1*HDMI/1*VGA/1*Gigabit LAN/2*Audio
- Fanless design
Discover the ALLNET AIO PC - your solution for reliable and powerful industrial touchscreen technology!

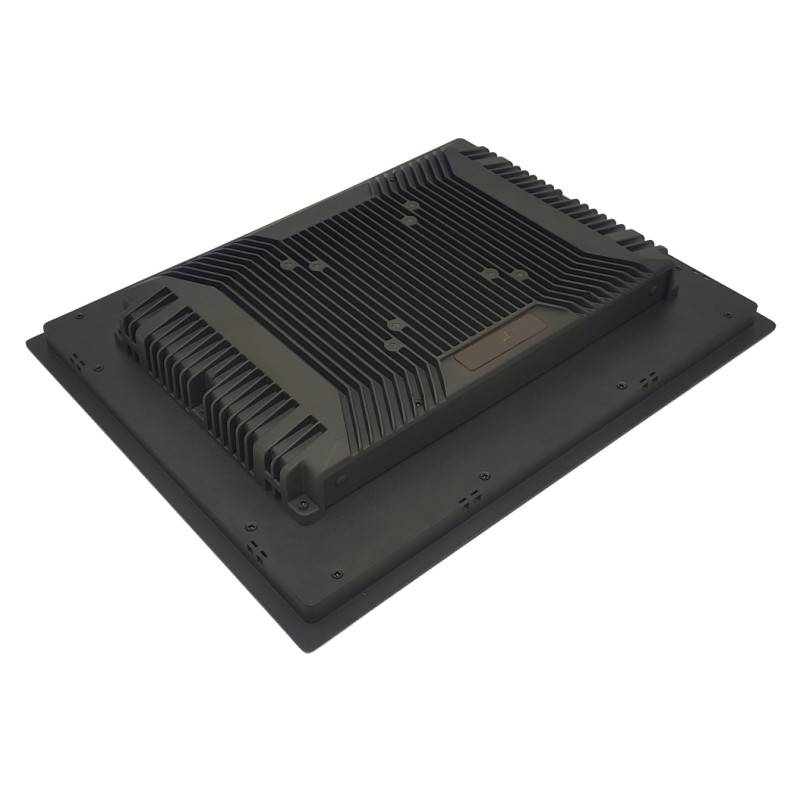

Ready to experience the future of touchscreen PCs? ALLNET AIO PC is the industrial fanless capacitive touchscreen panel PC you need - with low power consumption and unmatched reliability. Its impressive aluminum alloy die-casting and CNC process ensures excellent cooling and gives you an incredibly slim and fanless experience. No more compromises!
What makes the ALLNET AIO PC the ultimate companion for your projects?
Performance without limits: With the 8th generation Intel® Whiskeylake Core™ i3 8145U processor (optional i5/i7), the ALLNET AIO PC offers impressive performance for all your requirements.
Generous storage: Supports DDR4 memory up to 32GB and offers generous 128GB internal storage for all your data and applications.
Robust and reliable: The fanless design ensures a long service life and minimizes downtime, while the IP65 classification protects the panel from dust and moisture - ideal for harsh environments.
Versatile Connectivity: Enjoy a variety of I/O ports to easily integrate your devices and peripherals.
Ease of use: The ALLNET AIO PC supports Win10 and Linux operating systems and offers a clear 8 Ohm 3 Watt speaker for an impressive audio experience.
Be ready for the next level of touchscreen PC technology - choose the ALLNET AIO PC for the highest performance, reliability and quality. Take your project to the next level and experience the future of touchscreen technology!
Please note! A license for Windows is not included.
Download system driver: https://fileshare.allnet.de/s/qaWDTzEvZhYU9xO
Optional wall mount see accessories!!
Display Display | |
Screen | 15.0"LCD |
resolution | 1024x768 |
Brightness | 350cd/m2 |
Contrast | 1000:01 |
Touch Screen | Multi-point capacitive touch |
performance | |
Chipset | Intel® WHISKEYLAKE CORE™ i3 8145U |
R.A.M. | Board 8GB LPDDR4 memory |
HardwareMonitor | Voltage, CPU, TEMP |
Watchdog Timer | Support hardware reset function (256 levels, 0~255 seconds) |
Storage | M.2, 128GB, up to 512GB |
power | |
Power Supply | standard 12V/5A adapter |
operating system | |
O/S | Windows10/ Linux |

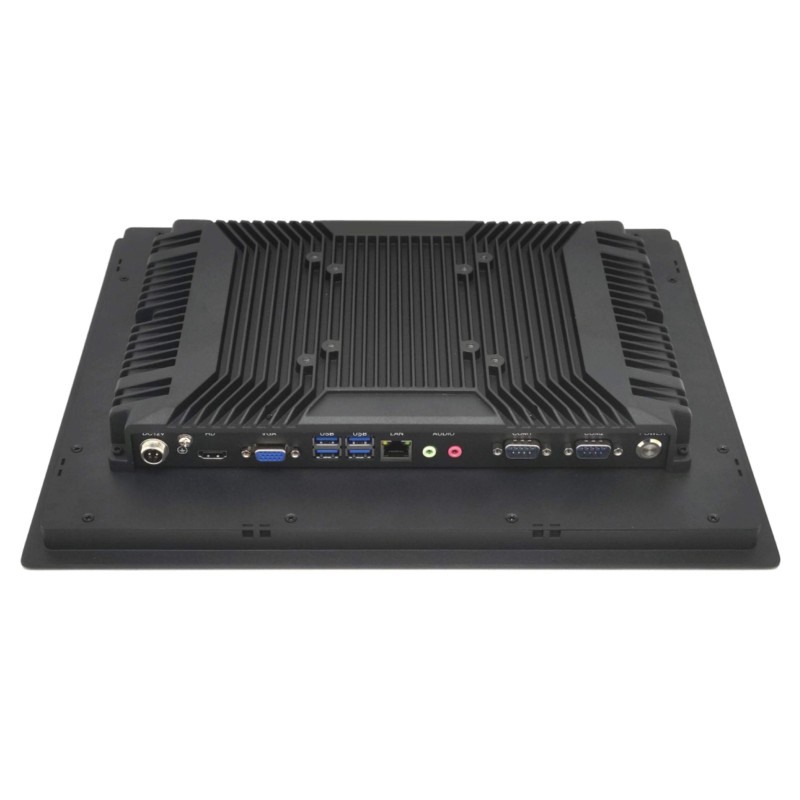

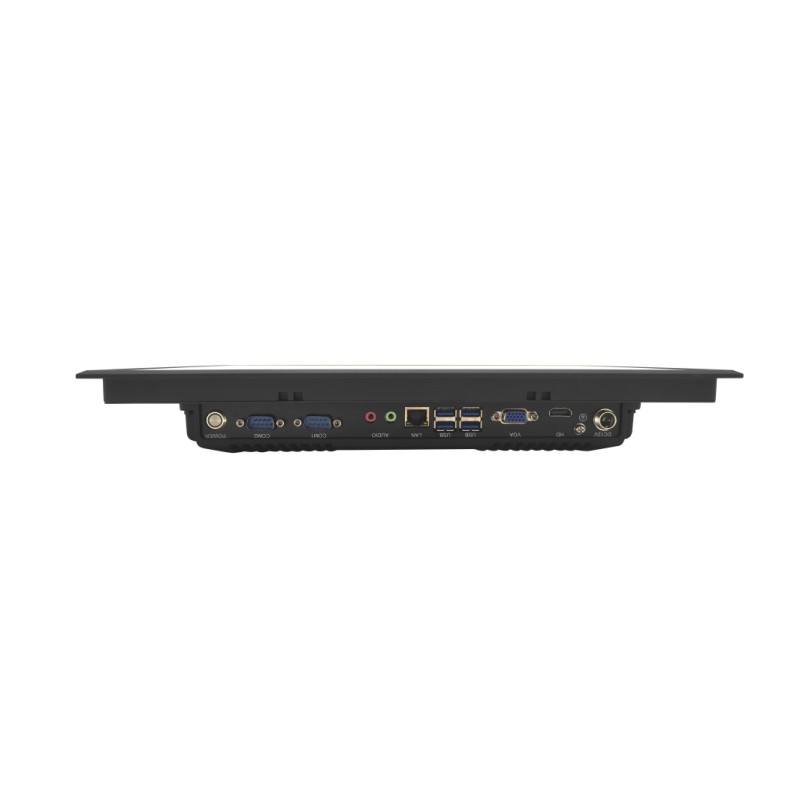

I/O Port | |
USB | 4*USB3.0 |
Ethernet | 1x RJ45 Gigabit network interface |
COM | 2x RS232 |
Audio | 1*Line out, 1*Mic in |
Display | 1*HDMI+1*VGA |
MiniPCIE | 1*mini pcie (wifi/bt 2.4/5GHz) |
GPIO | no |
Environmental | |
Anti-vibration | 5-17Hz/1.0mm amplitude 19-200Hz/1.0g acceleration |
Anti-shock | 10g acceleration, 11ms duration |
IP Level | Front panel IP65 |
Reliability | MTBF=50000h MTTR=0.5h |
Operating Temperature | minus 10°C - up to +60°C with ventilation |
Storage Temperature | -20°C to +70°C |
Operating Humidity | 95% @40°, non-condensing |
Mechanical | |
Dimensions | 376mm x 299.5mm x 55mm |
Mounting size | VESA mounting: 100*100mm Embedded installation: 357mm x 280.5mm |
material | Fanless High-strength and elegant Al-alloy panel |
Weight | 4.0kg (LW) / 4.5kg (GW) |
Color | Black |
