ALLNET AIO IPC industrial Windows/Linux, 19 inch IP67 stainless steel, Core I5, 8GB/256GB, Armory-190
ALLNET AIO IPC industrial Windows/Linux, 19 inch IP67 stainless steel, Core I5, 8GB/256GB, Armory-190
Discover the ALLNET Armoury-190 Stainless Steel Waterproof IP67 PC – your reliable solution for demanding environments.
This weatherproof 19-inch panel PC is perfect for use in harsh conditions. With a robust stainless steel housing and waterproof screw connections, it offers complete protection according to IP67. The Armoury-190 easily withstands dust, water and extreme temperatures. Ideal for industrial applications or outdoor areas.
The powerful 12th generation Intel Core i5 processor ensures fast and reliable performance. With 8 GB RAM and a 256 GB SSD, this PC offers sufficient storage space and speed for your applications. The 1280x1024 resolution in combination with a highly sensitive Projected Capacitive (Pcap) touchscreen ensures razor-sharp images and precise operation.

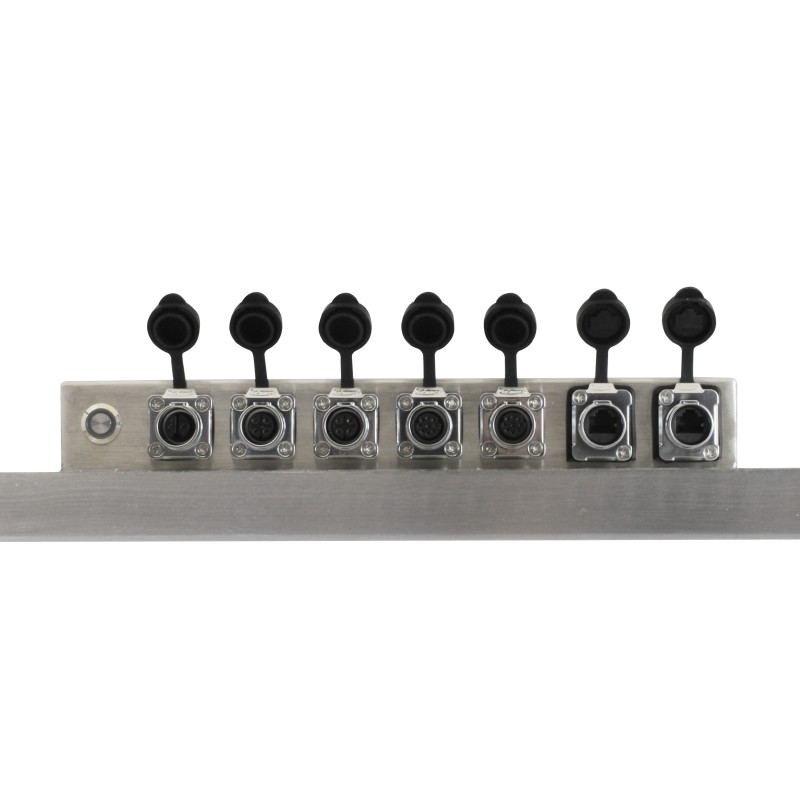

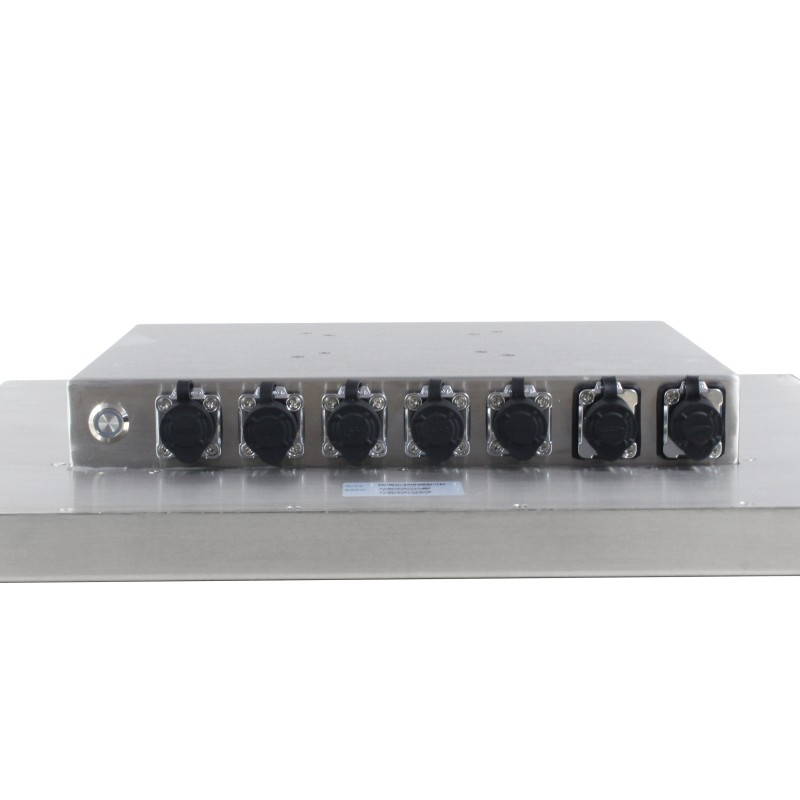

Thanks to versatile connections – 2x RS232, 2x USB 2.0, 2x LAN and 1x DC IN – the PC can be flexibly integrated into a wide variety of systems. With a wide input voltage of 9-36V, the ALLNET Armoury-190 adapts to a wide range of power supply requirements.
Rely on the ALLNET Armoury-190 for uncompromising performance and durability, even under extreme conditions.
19" panel PC / Full IP67/cap touch I5-12Gen.
1280*1024/2*RS232+2*USB2.0+2*LAN+1*DC IN/8+256GB
Stainless steel housing 9-36V
Customs Tariff Code/Tariff Number: 8471410000
Screen size: 19-inch
Touch type: Projected capacitive (Pcap) touch
Resolution: 1280x1024
Ports: 2x RS232
2x USB 2.0
2x LAN
1x DC IN
Memory and storage: 8GB RAM, 256GB storage
Input voltage: 9-36V
Housing material: Stainless steel
ALLNET Computersysteme GmbH | ||
Armoury-190 | ||
LCD display | Display Type | 19" (XGA) a-Si TFT-LCD1919" inch (XGA) a-Si TFT-LCD 1280(H)x1024(V) Angle 80/80/70/70 |
Luminance (cd/m2) | 500 cd/m² | |
Contrast Ratio | 1000:1 | |
Backlight Life (hrs) | 30,000 hrs (min.) | |
touchscreen | Touch Type | Resistive 5-finger touch |
Light Transmission | >81% | |
controller | USB interface | |
CPU | CPU/Socket | Intel® Core™ i5 12th Gen 1255U |
BIOS | AMI SPI 64Mb | |
Memory | Technology | DDR4, 1.2V , 2133/2400MHz |
Max. Capacity | 16 GB | |
Socket | 1 x DDR4 SO-DIMM | |
Storage | SATA | N/A |
Expansion slot | MiniPCIe | 1 x full size Mini PCIe |
Ethernet | controller | 2 x Intel® Ethernet Connection |
speed | 10/100/1000 Mbps | |
Connector | 2 | |
Audio | audio interface | Optional |
Connector | Audio&Mic-in | |
Realtek ALC662VD, High Definition Audio | ||
Watchdog Timer | Yes | |
IO | USB3.0/2.0 | 3 x USB2.0 |
GPIO | N/A | |
Display Port | Optional | |
COM port | 2 x RS232 ( COM1/2 support RS485/RS422,RS485 with isolate,115200 ) | |
Mechanical | Mounting | Desk/wall mounting, VESA mounting |
Weight ( kg ) | 10.6kg (13.6kg) | |
Dimension (mm) | 380.9mm(L) x 318.9mm(W) x 57.3mm(H) | |
Construction | Stainless Steel housing | |
power | Power Type | DC |
Input Voltage | 9-36V DC | |
Power Adapter | AC to DC, DC12V/5A | |
Environment | Operational Temperature | With extended temperature peripherals:0 ~ 60°C with 0.7m/s air flow |
Storage Temperature | -20 ~ 70° C | |
Relative Humidity | 95% @ 40° C (non-condensing) | |
Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | |
Protection Rate | Full IP67 | |
Operating System | Windows | Windows 11/10 license not included |
Linux | Ubuntu , CentOS | |
