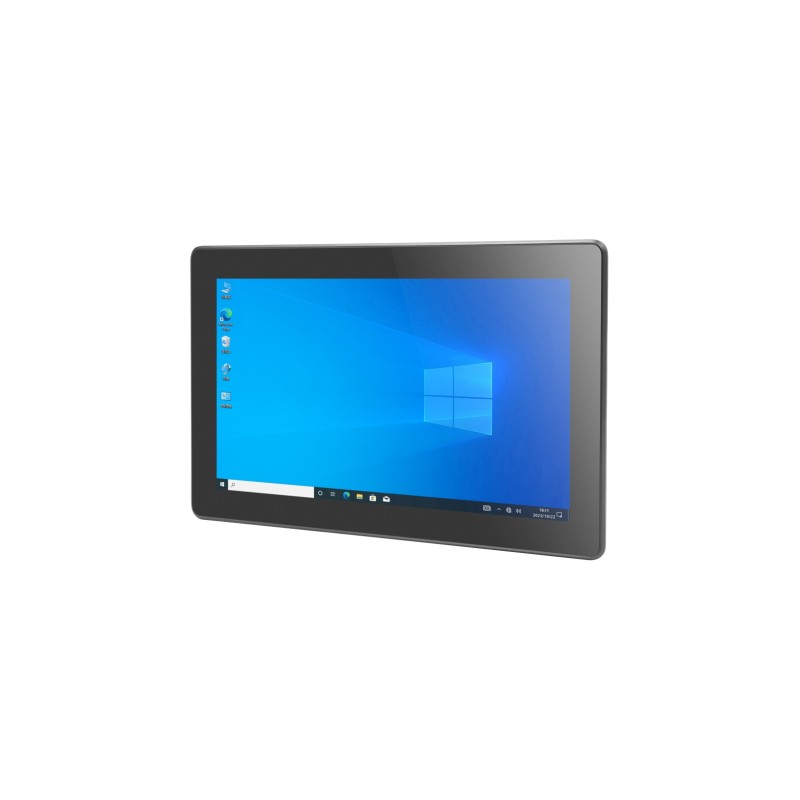

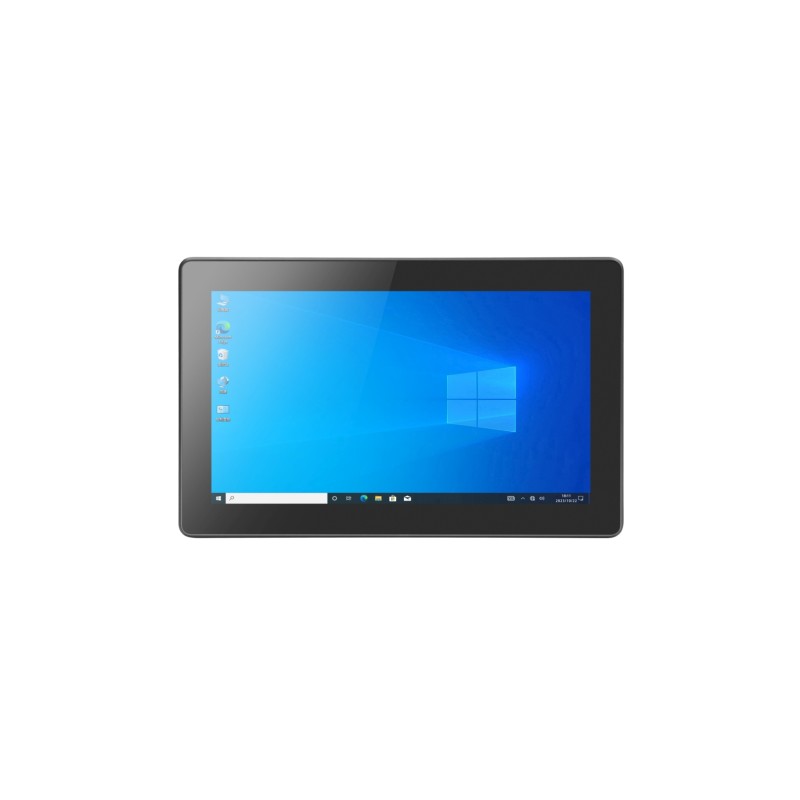

ALLNET AIO IPC industrial Windows/Linux, 12 inch touch, Intel® i5 -1135G7, 8GB/128GB, 2xLan RJ45, USB, wall mounting
ALLNET AIO IPC industrial Windows/Linux, 12 inch touch, Intel® i5 -1135G7, 8GB/128GB, 2xLan RJ45, USB, wall mounting
ALLNET AIO IPC industrial Windows/Linux, 12 inch touch, Intel® i5 -1135G7, 8GB/128GB, 2xLan RJ45, USB, wall mounting
- 12" Intel® i5 -1135 G7
- industrial display, capacitive multi-point touchscreen
- SO-DIMM DDR4 16GB (up to 64GB)
- 2*USB3.0/2*USB2.0
- 2*Gigabit LAN
- Antishock
- Front IP65
- Fanless design
Discover the ALLNET AIO PC - your solution for reliable and powerful industrial touchscreen technology!
Ready to experience the future of touchscreen PCs? ALLNET AIO PC is the industrial fanless capacitive touchscreen panel PC you need - with low power consumption and unmatched reliability. Its impressive aluminum alloy die-cast and CNC process ensures excellent cooling and gives you an incredibly slim and fanless experience. No more compromises!
What makes the ALLNET AIO PC the ultimate companion for your projects?
Performance without limits: With the Intel® i5 - 1135 G7, the ALLNET AIO PC offers impressive performance for all your requirements.
Generous storage: Supports DDR4 memory up to 64GB and offers a generous 512GB internal storage for all your data and applications.
Robust and reliable: The fanless design ensures a long service life and minimizes downtime, while the IP65 classification protects the panel from dust and moisture - ideal for harsh environments.
Versatile Connectivity: Enjoy a variety of I/O ports to easily integrate your devices and peripherals.
Ease of use: The ALLNET AIO PC supports Win10 and Linux operating systems and offers a clear 8 ohm 3 watt speaker for an impressive audio experience.
Be ready for the next level of touchscreen PC technology - choose the ALLNET AIO PC for the highest performance, reliability and quality. Take your project to the next level and experience the future of touchscreen technology!
Please note! A license for Windows is not included.
Download system drivers:
Optional wall mount see accessories!!
Display Display | |
screen | 12" LCD |
resolution | 1280x800 |
Brightness | 500 cd/m2 |
Contrast | 1000:1 |
touch screen | Multi-Point Capacitive touch |
performance | |
chip set | Intel® CORE ™ i5 -1135G7 |
R.A.M. | Board 8GB LPDDR4 memory |
Hardware Monitor | Voltage, CPU, TEMP |
Watchdog Timer | Support hardware reset function (256 levels, 0~255 seconds) |
Storage | M.2, 128GB SSD |
power | |
Power Supply | standard 12V/5A adapter |
operating system | |
O/S | Windows/Linux not installed (no license) |
I/O port | |
USB | 2*USB3.0/ 2*USB2.0 |
Ethernet | 4x RJ45 Gigabit network interfaces |
COM | not installed |
Audio | 1*Line-out, 1*Mic-in |
display | 1*HD+1*VGA |
Mini PCIE | 1*mini pcie (wifi/bt 2.4/5GHz) |
GPIO | no |
Environmental | |
anti-vibration | 5-17Hz/1.0mm amplitude 19-200Hz/1.0g acceleration |
Anti-shock | 10g acceleration, 11ms duration |
IP level | Front panel IP65 |
Reliability | MTBF=50000h MTTR=0.5h |
Operating Temperature | minus 10°C - up to +60°C with ventilation |
Storage Temperature | -20°C to +70°C |
Operating Humidity | 95% @40°, non-condensing |
Mechanical | |
Dimensions | |
Mounting size | VESA mounting: 100*100mm Embedded installation: 357mm x 280.5mm |
material | Fanless High-strength and elegant Al-alloy panel |
Weight | 4.3kg (NW) / 4.8kg (GW) |
Color | Black |
