Passiver Transceiver durch verdrilltes Paar - Optimiert für HDTVI, HDCVI und AHD - 1 Videokanal und Stromversorgung - Anschluss
Article Nr BA607PV-HD EAN 8435325419572
Passive transceiver by twisted pair - Optimized for HDTVI, HDCVI and AHD - 1 video channel and power supply - RJ45 (UTP), BNC and Jack connector - Range: 200 ~ 400 m - 2 units, transmitter and receiver
Passiver Transceiver durch verdrilltes Paar - Optimiert für HDTVI, HDCVI und AHD - 1 Videokanal und Stromversorgung - Anschluss

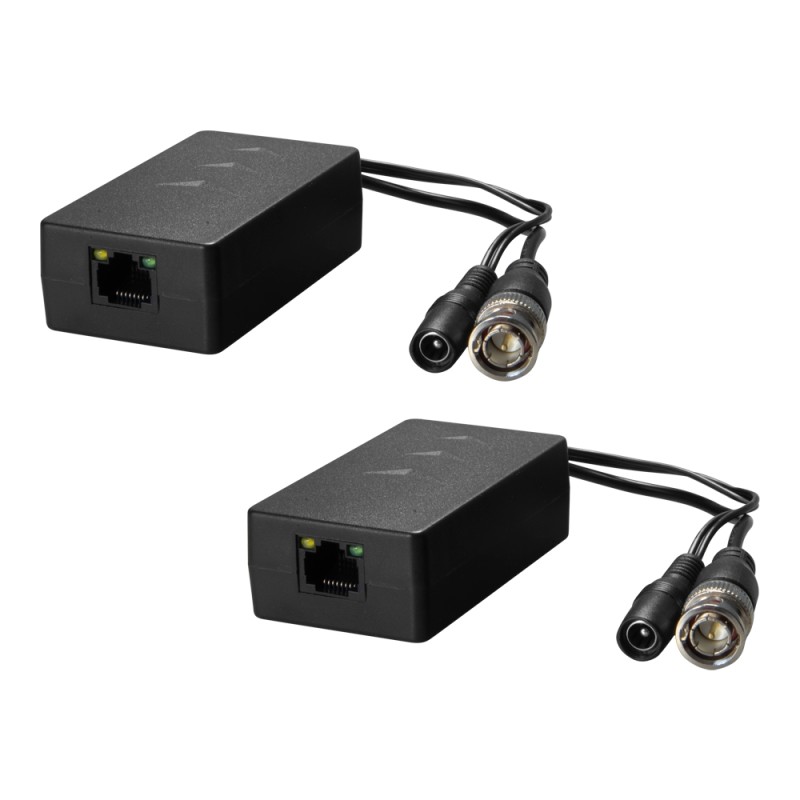

- Passive video transceiver and twisted pair power supply, 2 units for transmitting and receiving, especially for High Definition Analog (HD).
- Optimized for transmission of video signal and power from 1 HDTV analog HDTV, HDCVI or AHD through twisted pair. System formed two baluns, one of which acts as a transmitter (splitter) and another as a receiver (injector).
- Has a BNC connector (video) and a female connector (transmitter) or a male connector (receiver) via the female connector, and an RJ45 connector for the UTP cable that connects both baluns together. Of the 4 pairs of wires in the UTP cable, 1 pair is used for video and 3 pairs for power. The data or audio signal is transmitted via the video carrier wave in HD analog technologies.
- The maximum length between the end connected to the camera and the end connected to the video output depends on the resolution of the signal and the high definition technology used:
- HDTVI 720p - 200m
- HDTVI 1080p - 200m
- HDCVI 720p - 400m
- HDCVI 1080p - 200m
- AHD 720p - 300m
- AHD 1080p - 200m
- HDTVI 4 Mpx 100 m
- HDCVI 4 Mpx 200 m
- HDTVI 4K 100m
- HDCVI 4K 200m
- Protected against surges and discharges, anti-static design with exceptional noise suppression.
Details about Passiver Transceiver durch verdrilltes Paar - Optimiert für HDTVI, HDCVI und AHD - 1 Videokanal und Stromversorgung - Anschluss
Category Transmission & Distribution Brand MARCA BLANCA Reference BA607PV-HD EAN13 8435325419572 In stock 83 Items Delivery Time Delivery within 24 hours Condition New
