Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS) - 16 passive Kanäle - Enthält 16 BA612P-HAC - BNC Verbindung und RJ45 - Umfang: 180 ~

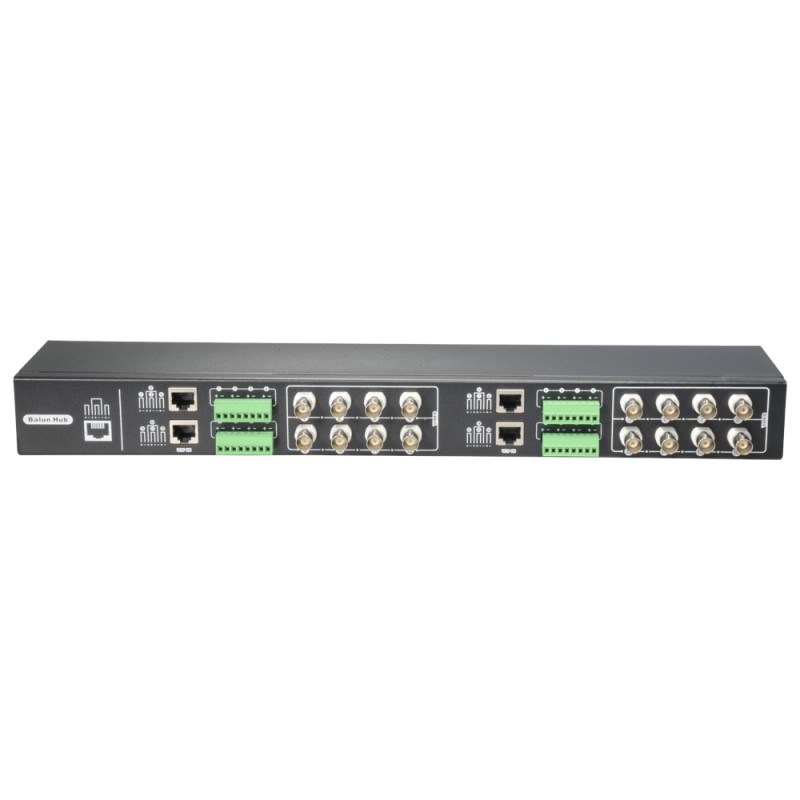

Passive video transceiver by twisted pair of 16 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can work as a transmitter or receiver and allows the transmission of the signal from up to four video cameras over a single UTP cable.
The adapter has 16 BNC connectors to connect a video recorder. Includes 16 individual BA612P-HAC baluns to connect to each camera.
On the other hand, you have 4 connectors for UTP cables either for two RJ45 or for 4 connectors of 4 contacts +/-, for cable connection via wires.
The maximum length between the end connected to the camera and the end connected to the video output is: HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K) and AHD 320/250/200 m (720p/1080p/5Mpx).
Possibility of 19" rack mounting.
