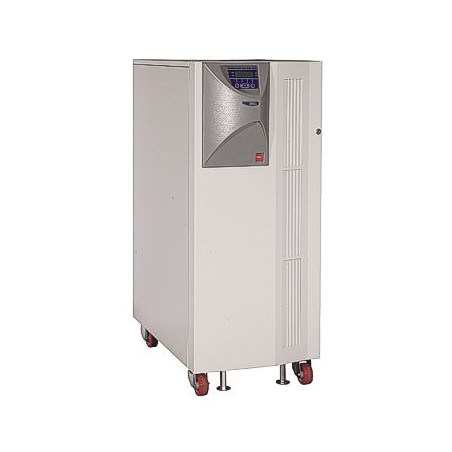

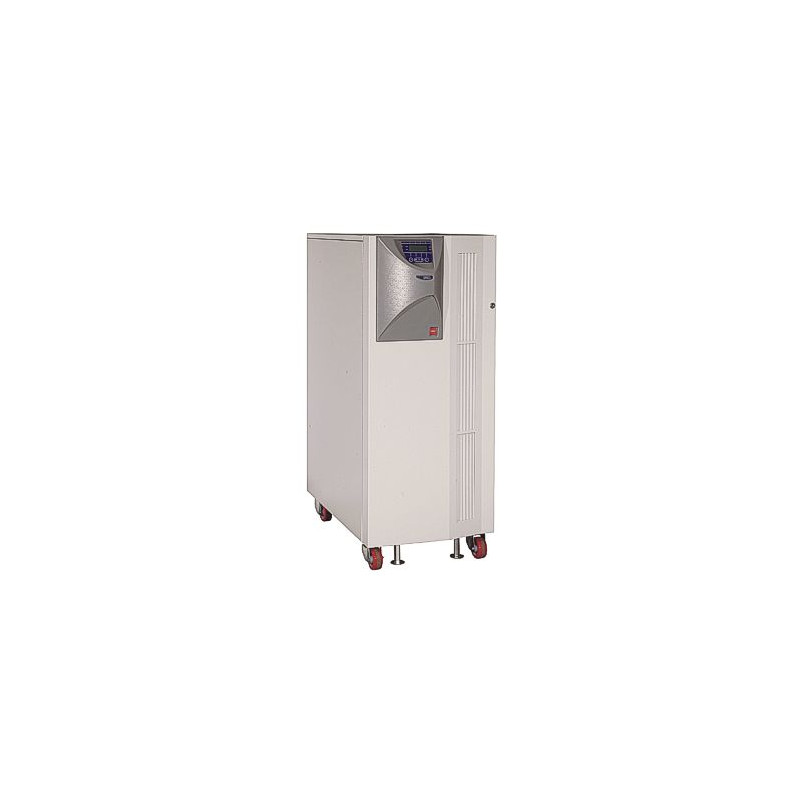

Effekta Online-USV, 10000VA, 20min, PTX3/303P/F010K20-000, incl

Article Nr 35929
Effekta Online-USV, 10000VA, 20min, PTX3/303P/F010K20-000, incl
7,975.95
Tax included
0/5
Item out of stock

Effekta Online-USV, 10000VA, 20min, PTX3/303P/F010K20-000, incl

Technical data:
UPS classification: Online double conversion (VFI-SS-111) according to IEC 62040-3
Input voltage: 3 x 400 VAC ± 20%
Input current: 18.5 A at 400 V with rated load
Input frequency: 50 or 60 Hz ± 20%
Power factor: > 0.95
Rectifier: 6-pulse (12-pulse optional)
Output power: 10 kVA / 8 kW
Output voltage: 3 x 400 VAC ± 1%
Output frequency: 50 or 60Hz (+/-1...+/-4)% adjustable
Overload capacity: 125% for 10min, 150% for 10s
Short circuit current: 300% for < 3s
Distortion factor: < 3% with linear load, < 5% with non-linear load
Efficiency: > 90% (without load)
Power loss: 0.88 kW at rated load, without load
Charging current: max. 7 A, IU charging with soft start
Charging voltage: 432 V real (2.25V/cell, adjustable)
Autonomy time: 20 min at nominal active load, extendable
Batteries: maintenance-free lead-acid batteries 384 V/19 Ah,
with five years expected service life
Battery type: 64 x EFFEKTA BT12-9.5
Protection class IP20
Colour RAL 7035
Working temperature 0?40°C, recommended +25°C
Dimensions UPS: 1220x530x950 (HxWxD in mm), 370 kg
Furnishing:
Electronic bypass
Manual service bypass
LCD display
RS232 and contact interface
Lan-Powershut shutdown and management software for all current operating systems (incl. RS232 cable)

Details about Effekta Online-USV, 10000VA, 20min, PTX3/303P/F010K20-000, incl

Category UPS Brand Effekta Reference 35929 Delivery Time Delivery in 48-72H Condition New

Manufacurer:

03P/F010K20-000

Weight:

03P/F010K20-000
